The Mimo Vue 10.1\" BrightSign Built-in Capacitive Touch Display MBS-1080C-POE is perfect for retail environments, corporate lobbies, restaurants, healthcare facilities, and interactive kiosks who need advanced digital signage display solutions with integrated content management and touch interactivity. Our solution delivers:
-
BrightSign built-in technology providing native digital signage capabilities with HTML5 support and cloud-based content management
-
Capacitive touch interface enabling responsive multi-touch interaction for engaging customer experiences and interactive applications
-
Power over Ethernet connectivity simplifying installation with single-cable power and data transmission for streamlined deployment
-

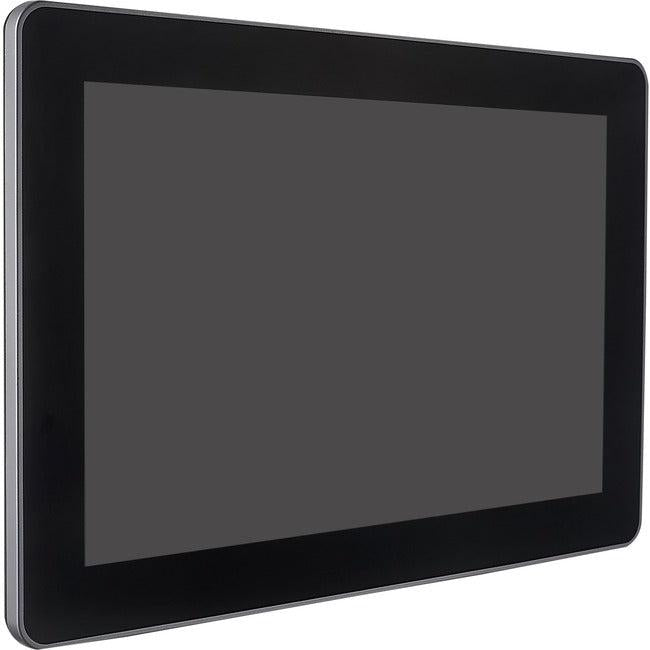

10.1 inch IPS display delivering vibrant colors and wide viewing angles for professional presentation quality in compact form factor
Key Features
-
Integrated BrightSign media player with HTML5, video playback, and interactive content support for comprehensive digital signage solutions
-
Responsive capacitive touchscreen supporting multi-touch gestures and precise finger tracking for intuitive user interaction
- Compatible with digital signage systems featuring cloud management, content scheduling, and remote monitoring capabilities
- Consistent PoE operation requiring only single Ethernet cable for both power delivery and network connectivity
-
Professional IPS panel technology providing 178-degree viewing angles and accurate color reproduction for commercial applications
Technical Specifications
| Manufacturer |
Mimo Monitors, Inc. |
| Model Number |
MBS-1080C-POE |
| Type |
10.1\" BrightSign Built-in Capacitive Touch Display |
| Screen Size |
10.1 inches diagonal |
| Resolution |
1280 x 800 pixels (WXGA) |
| Panel Technology |
IPS LCD with LED backlight |
| Touch Technology |
Projected capacitive touch (PCAP) |
| Touch Points |
10-point multi-touch support |
| Brightness |
350 cd/m² typical |
| Contrast Ratio |
800:1 native |
| Viewing Angles |
178°/178° horizontal/vertical |

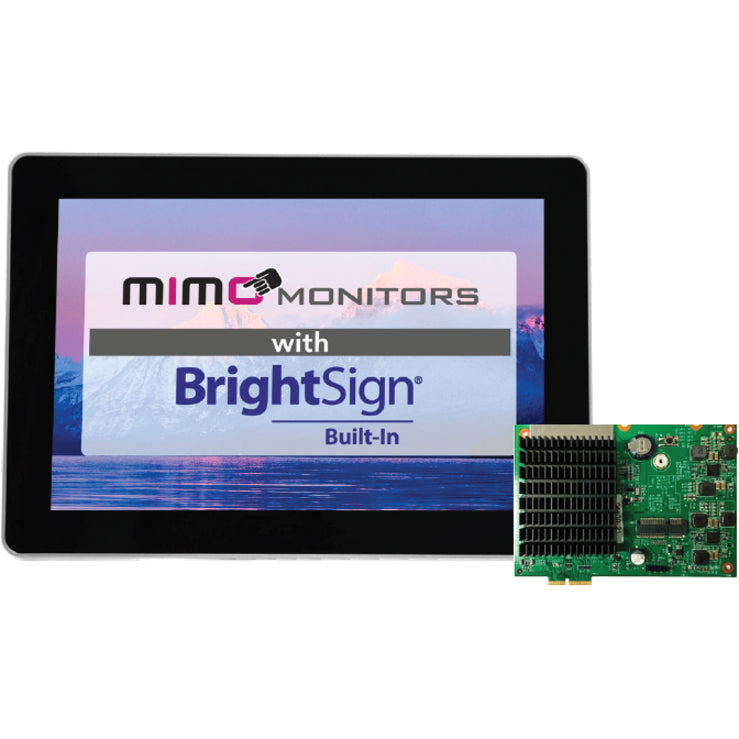

| Built-in Media Player |
BrightSign XT1144 with ARM Cortex-A72 processor |
| Operating System |
BrightSign OS with HTML5 engine |
| Power Requirements |
Power over Ethernet (PoE+) IEEE 802.3at |

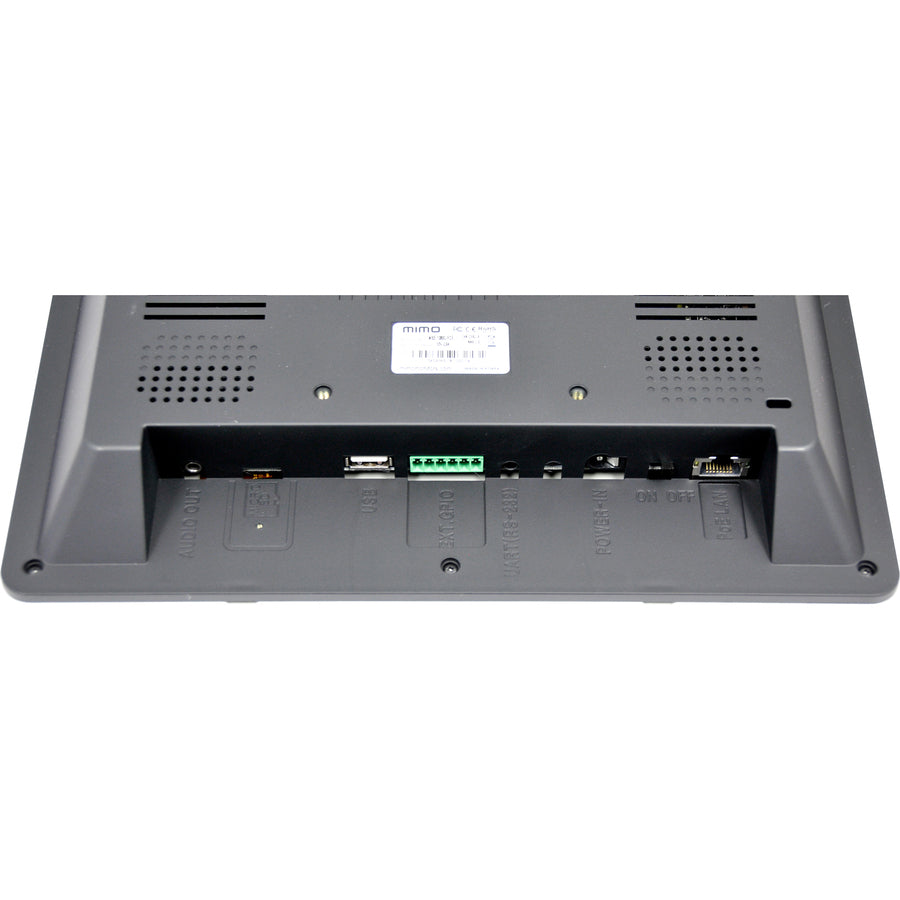

| Connectivity |
Ethernet (PoE+), Wi-Fi 802.11ac, Bluetooth |
| Audio |
Built-in speakers and 3.5mm audio output |
| Mounting |
VESA 75x75mm compatible with desktop stand |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Applications |
Digital signage, interactive kiosks, wayfinding |
| Compatible Systems |
BrightAuthor:connected, HTML5, video formats |
Frequently Asked Questions
Q: What advantages does BrightSign built-in technology provide for digital signage?
A: BrightSign built-in integration eliminates the need for external media players by providing native digital signage capabilities including HTML5 support, video playback, interactive content, and cloud-based content management. This integrated approach reduces hardware complexity while enabling sophisticated digital signage systems with centralized control and scheduling.
Q: How does Power over Ethernet simplify installation and deployment?
A: Power over Ethernet technology delivers both electrical power and network connectivity through a single Ethernet cable, eliminating the need for separate power adapters and reducing installation complexity. This PoE+ capability enables flexible placement in locations where power outlets are limited, making it ideal for point of sale display and kiosk applications.
Q: What touch capabilities does the capacitive touchscreen provide?
A: The capacitive touch interface supports precise 10-point multi-touch functionality with responsive finger tracking and gesture recognition. This technology enables intuitive user interaction for interactive menus, wayfinding applications, product catalogs, and customer engagement solutions in retail and hospitality environments.
Q: How does the 10.1 inch IPS display benefit commercial applications?
A: The 10.1 inch IPS panel provides exceptional color accuracy and 178-degree viewing angles, ensuring consistent image quality from multiple viewing positions. This display technology combined with 1280x800 resolution delivers sharp text and vibrant graphics suitable for professional digital signage display applications in compact desktop or wall-mounted configurations.
Mimo Vue 10.1\" BrightSign built-in capacitive touch display MBS-1080C-POE with Power over Ethernet for digital signage and interactive applications.
