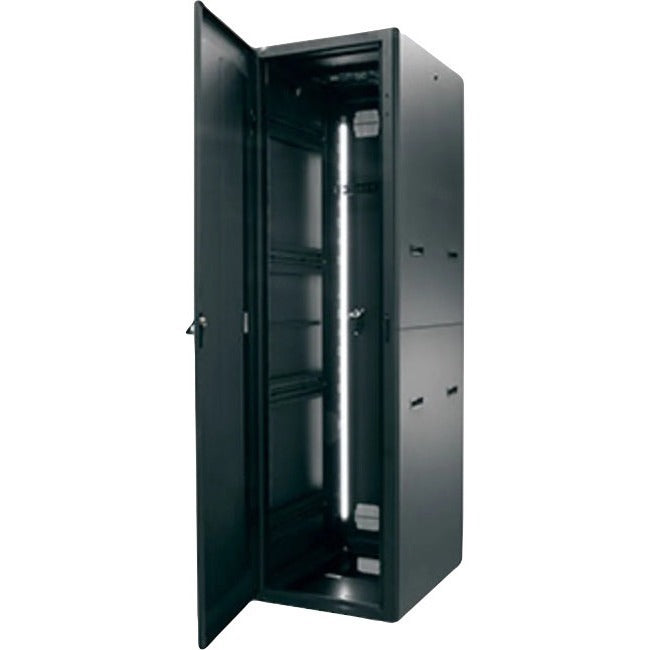

Middle Atlantic 45 RU BGR Series Rack, 38 Inches Deep, Pre-Configured for Pro AV
A pre-configured BGR built for today's AV systems. The accessories and options included with the Pre-Configured BGR for AV are exactly what you need to deliver an optimized AV system. It includes some of our most popular Forward accessories as well as thermal management and cable management.
The AV Pre-Configured BGR Includes:
Included Forward Panels
- (4) Forward 1RU flanged blank panels (FWD-EB1)
- (2) Forward 2RU flanged blank panels (FWD-EB2)
Included Horizontal Cable Management:
- (1) 4pk of Forward straight horizontal lacer bar (FWD-LB-1A-4PK)
- (1) 4pk of Forward 2" offset horizontal lacer bar (FWD-LB-2A-4PK)
Included Vertical Cable Management:
- (1) Forward Vertical Wire Grid Lace for vertical and horizontal cable routing on a single lace bar (FWD-LACE-WB3-44-45)
- (1) Forward Vertical Cable Management Lace (FWD-LACE-UMV-44-45) with the patented universal hole pattern. Compliment with FWD-C-RING, FWD-D-RING and FWD-TSW-15
- (2) Lever Lock™ vertical channel (LL-VC21)
Included Cable Management Accessories:
- (1) 15pk of Forward tie saddles for optimal cable management in any direction using absolutely no hardware. Accepts both cable zip ties and hook & loop. (FWD-TSW-15)
- (2) Velcro® straps for tie saddles (TW12)
Included Small Device Mounting:
- (2) 4pk of Forward small device clamps for quick mounting of small, non-rackmount devices without any hardware (FWD-SIDECLMP-4)
- (1) Lever Lock™ plate for small device mounting (LL-VP2110)
Included Thermal Management:
- (1) DC fan top with 4 fans moving 276CFM. Includes controller (BGR-276FT-FC)
Included Rack Options:
- (1) Solid front door (BFD-45)
- (1) Pair of side panels (BSPN-45-27)
- (1) set of leveling feet (LF-HD)
Included Hardware:
- (100) 10-32 threaded rackscrews (HP)
- All BGRs are now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels horizontal cable management and vertical cable management
- Provides more rackspace in a smaller overall height than similar racks
- Accepts patented Lever Lock™ tool free and hardware free internal device and cable management system accessories
- Fully welded construction provides the following weight capacities: UL Listed load capacity: 3,000 lbs., Seismic certified capacity: 1,175 lbs.
- Pre-threaded ganging holes allow for rack joining after loading
- Rackrail depth indicators
- 1/2", 3/4", 1" & 1-1/2" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts on rear top & bottom, easily removable for cable pass-through. Top cable management plate (38 space and up) includes 1/2", 3/4", 1" 1-1/2" & 3" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts
- 23" OD width, multiple depths

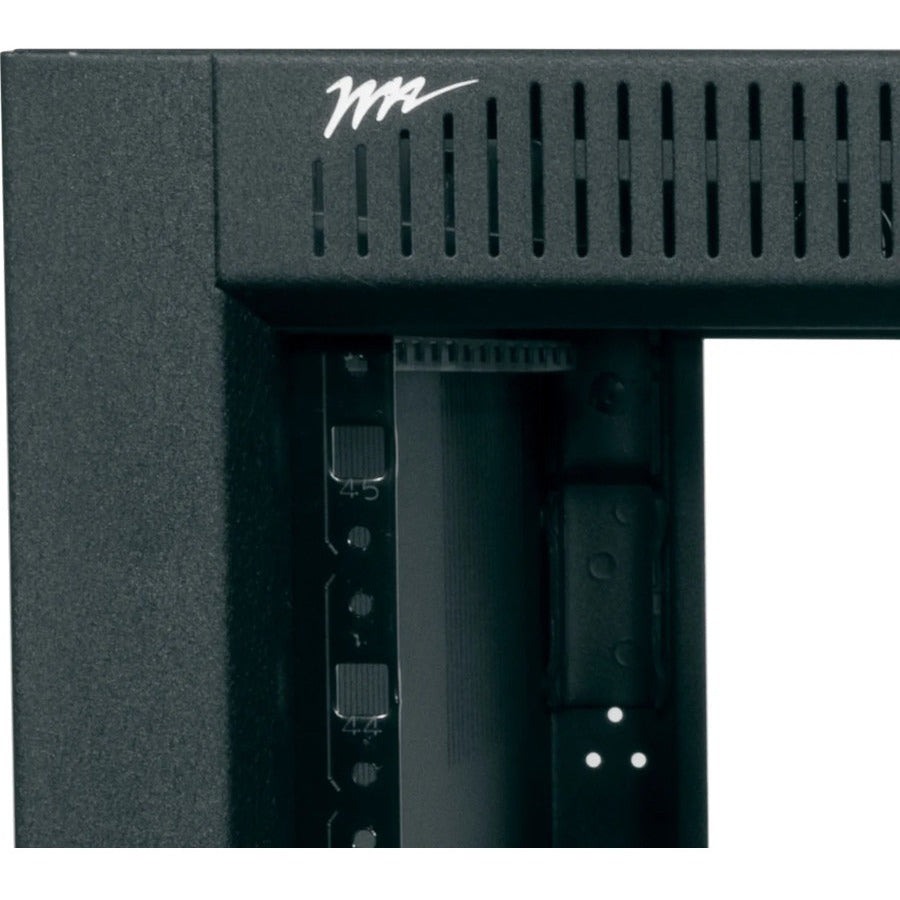

- Two pairs of 11-gauge, 10-32 threaded rackrail with numbered rackspace increments
- Optional stackable 3" extender bay available for front and rear
Product Type: Rack Cabinet
Environmentally Friendly: Yes
Environmental Certification: GREENGUARD Gold
Maximum Weight Capacity: 3000 lb
Rack Depth: 17.80"
Product Color: Black
Product Material: Steel
Country Of Origin: United States
Product Series: BGR
Rack Width: 19"
Rack Height: 45U
Brand Name: Middle Atlantic
Form Factor: Floor Standing
Manufacturer: Legrand Group
Product Name: 45 RU BGR Series Rack, 38 Inches Deep, Pre-Configured for Pro AV
Manufacturer Part Number: BGR-4527-AV
Manufacturer Website Address: http://www.legrand.us
Package Contents:
- 45 RU BGR Series Rack, 38 Inches Deep, Pre-Configured for Pro AV
- 4 x Forward 1RU Flanged Blank Panels
- 2 x Forward 2RU Flanged Blank Panels
- 1 x 4pk of Forward Straight Horizontal Lacer Bar
- 1 x 4pk of Forward 2" Offset Horizontal Lacer Bar
- 1 x Forward Vertical Wire Grid Lace for Vertical and Horizontal Cable Routing on a Single Lace Bar
- 1 x Forward Vertical Cable Management Lace
- 2 x Lever Lock Vertical Channel
- 1 x 15pk of Forward Tie Saddles for Optimal Cable Management
- 2 x Velcro Straps for Tie Saddles
- 2 x 4pk of Forward Small Device Clamps for Quick Mounting
- 1 x Lever Lock Plate for Small Device Mounting
- 1 x DC fan top with 4 Fans Moving 276CFM. Includes Controller
- 1 x Solid Front Door
- 1 x Pair of Side Panels
- 1 x Set of Leveling Feet
- 100 x 10-32 Threaded Rackscrews
Limited Warranty: Lifetime
