Description

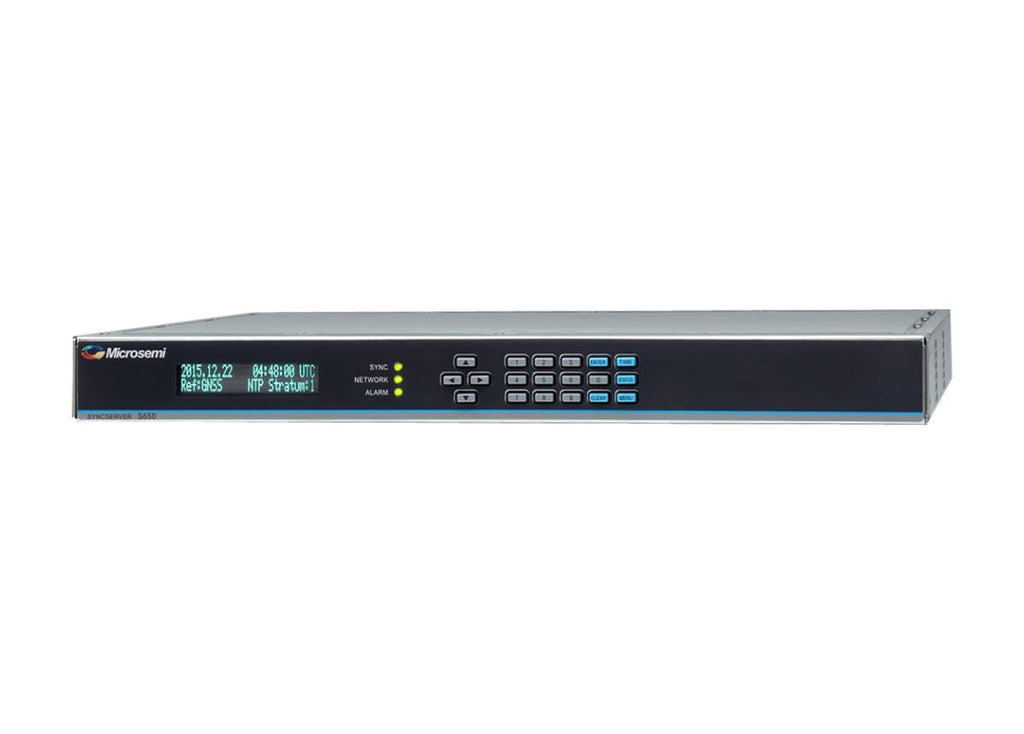

Microchip SyncServer S650 - network time server
The Microchip SyncServer S650 network time server combines expert instrumentation with unique FlexPort™ technology, offering unprecedented levels of timing signal flexibility and configurability. Its modular design includes an 8-connector BNC base module and a secure web interface for real-time configuration of up to 12 BNCs outputting any combination of supported signal types. A reliable and cost-effective solution for your time and frequency needs.
Key Features
- < 15 ns RMS to UTC (USNO) through GNSS
- < 1 × 10–12 frequency accuracy
- Modular timing architecture with innovative FlexPort technology
- Popular timing signal inputs/outputs are standard in the base timing I/O module (IRIG B, 10 MHz, 1 PPS)
- Four GbE ports with NTP/PTP hardware timestamping, two additional 10 GbE ports optional
- Secure, hardened, web-based management
- –20°C to 65°C operating temperature, shock and vibration qualified
- Rubidium atomic clock or OCXO oscillator upgrade
- Additional timecode I/O including IRIG A/B/C37/E/G/NASA/2137/XR3/HaveQuick/PTTI available
- T1/E1 telecom I/O available
- Superior 10 MHz low phase noise options
- Galileo/GLONASS/BeiDou/SBAS/QZSS option
- PTP multi-port/profile output option
- S650i model with no GNSS
- DISA/DoDIN approved product
General Information
| Manufacturer | Microchip Technology Inc. |
|---|---|
| Manufacturer Part Number | 920-15201-002 |
| Manufacturer Website Address | http://www.microchip.com |
| Brand Name | Microchip |
| Product Name | Security Protocols License Option |
| Product Type | Hardware Licensing |
| UPC | 0040232299155 |
