Microchip Single-port, Outdoor PoE Midspan, 60W, IEEE802.3at Compliant

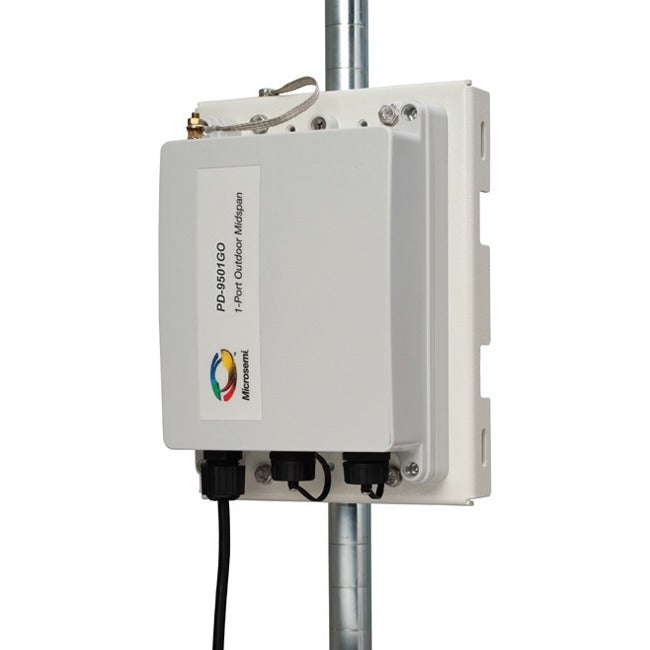

Microsemi's PD-9501GO/48VDC Power over Ethernet (PoE) single-port Midspan offers a cost effective, IEEE 802.3at compliant solution for outdoor installations, guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.
The PD-9501GO/48VDC also offers surge protection ensuring the indoor equipment is protected from outdoor surges.
Product Type: PoE Injector
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Philippines
Certifications & Standards:
- IEEE 802.3af (PoE, PoH Type1)
- IEEE 802.3at (PoE+ including 2-event
- GR-1089-CORE
- FCC Part 15, Class B
- EN 55022 Class B
- EN 55024
- EN61000-4-5 Class 5 (6kV CM)
- VCCI
- UL60950-1 & UL60950-22
GS
Brand Name: Microchip
Form Factor: Wall Mountable
Manufacturer: Microchip Technology Inc.
Product Model: PD-9501GO/48VDC
Product Name: Single-port, Outdoor PoE Midspan, 60W, IEEE802.3at Compliant
Mount Type: Pole/Wall-mountable
Manufacturer Part Number: PD-9501GO/48VDC
Manufacturer Website Address: http://www.microchip.com
Limited Warranty: 1 Year
Weight (Approximate): 1.65 lb
