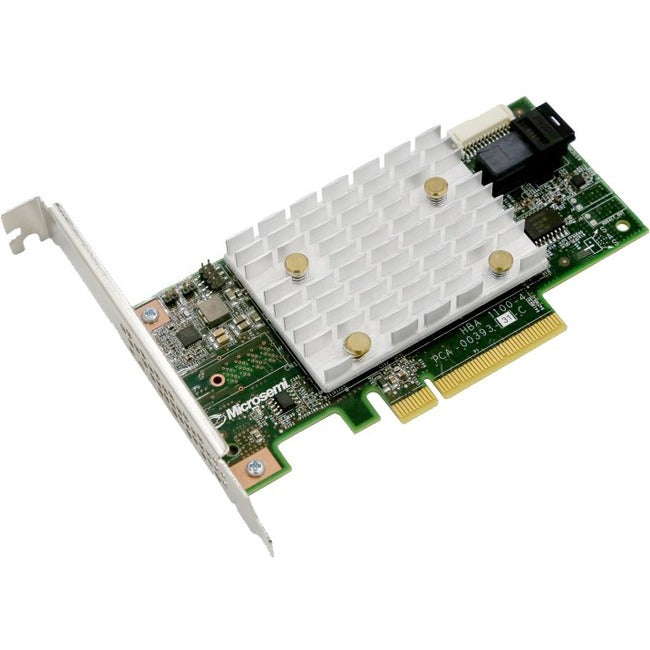

Microchip HBA 1100-4i Single
The 12 Gbps Adaptec HBA 1100-4i Host Bus Adapter has 4 internal SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor. Quality and reliability are assured through the unified harded Smart Storage stack, now deployed to over 30 million servers. Built on the Microchip SmartIOC 2100 SAS/SATA protocol controller, HBA 1100-4i adapters can aggregate the performance of devices to the limits of the PCIe Gen 3 host bus at 6.6 Gbps, and achieve up to 1.5M IOPS without additional overhead or latency. The HBA 1100 adapters also have 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions.
The HBA 1100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 1100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
- Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30 million servers
- 4 internal native SAS/SATA ports
- +1.5M 4K random read IOPS; 40% lower power than previous generations
- 28 nm SmartIOC 2100 SAS/ SATA protocol controller
- Familiar GUI, CLI, and pre-boot tools ensures consistent performance and user experience across all products
- Proven compatibility with existing Adaptec Smart solutions, multiple operating systems, servers, enclosures, SSDs, HDDs, and LTO tape driveS
Product Type: SAS Controller
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Singapore
Product Series: 1100
Brand Name: Microchip
Form Factor: Plug-in Card
Length: 5.2"
Manufacturer: Microchip Technology Inc.
Product Model: HBA 1100-4i
Product Name: HBA 1100-4i Single
Manufacturer Part Number: 2293400-R
Manufacturer Website Address: http://www.microchip.com
Platform Supported: Linux
Limited Warranty: 3 Year
Weight (Approximate): 14.11 oz
