Omnitron Systems Gigabit Fiber Media Converter

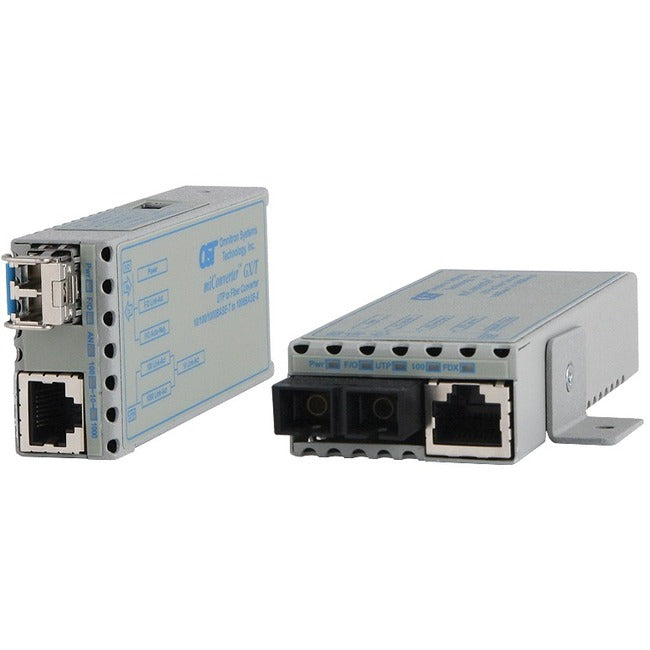

The miConverter GX/T is a miniature 10/100/1000BASE-T RJ-45 copper to 1000BASE-X fiber media converter that supports jumbo frames up to 10,240 bytes. The miConverter GX/T provides cost-effective fiber connectivity from Ethernet switches to diagnostic equipment, desktop and laptop computers.
The GX/T features Small Form Pluggable (SFP) transceivers that support 1000BASE-X for interoperability with Gigabit fiber equipment. SFP transceivers enable adaptability to different fiber types, speed and distances, and support Coarse Wave Division Multiplexing (CWDM) technology to increase the bandwidth capacity of fiber infrastructure.
The GX/T also supports SC and ST fixed fiber connectors for multimode, single-mode fiber; and single mode single-fiber models are available.
The Plug-and-Play capability of the miConverter GX/T simplifies fiber-to-the-laptop and fiber-to-the-desktop deployments. Both the fiber port and the RJ-45 port support auto-negotiation to achieve the best possible mode of operation (speed, duplex mode and Pause mode) between the devices. The auto-negotiation feature can be disabled on both ports (for manual configuration) using DIP-switches on the module. This is useful in a situation where the GX/T is connected to a non-negotiating device and the configuration parameters must be set manually.
Network flow control is managed by the Pause function (configured via auto-negotiation or manually) that prevents network congestion on both the RJ-45 and fiber ports. When Pause is enabled and the device is experiencing network congestion, it will send out a Pause signal to its link partner, instructing it to slow down data transmission.
The GX/T generates a remote fault indication when it detects link fault conditions, and reports detection of these signals by displaying status on the LED. Through user DIP-switch configuration, the detection of these indicators or link modes can also be propagated to the other port on the GX/T as a means of notifying connected end-devices of the link fault.
Diagnostic data is provided through LED indicators that assist in network installation and maintenance. The LEDs report the availability of power, port activity and link status and speed.
The miConverter GX/T combines Gigabit Ethernet connectivity with the lightweight design and low-power consumption required for both permanent deployment and mobile service networks.
The external AC power supply is available in US, Universal and Country/Region specific models. Country/Region specific models feature optional interchangeable connectors, allowing for compatibility with electrical outlet types found around the world. The GX/T is also available with a terminal connector for DC power between 5 to 12 volts.
Weighing less than 5 oz. with the USB Power Adapter Cable, the miConverter GX/T can easily fit into any pocket or laptop carrying case. It can also be attached to portable equipment using the included Velcro® strips or wall-mounted using the optional wall-mounting bracket kit.
The miConverter GX/T can be mounted in the miConverter 18-Module Power Chassis to consolidate individual modules into a rack-mount form factor that can be deployed where multiple fiber optic links are distributed from UTP switch equipment. The chassis powers converter modules with barrel-style DC connectors, and is available with a single universal AC, 24VDC or 48VDC internal power supply. This compact, high-density chassis is 1.5 rack units high, and can be mounted in a standard 19" or 23" equipment rack.
- Domestic, Universal and Country/Region specific power supply options
- LED indicators for RJ-45 and fiber port status
- Multimode and single-mode fiber options
- Supports Full/Half-Duplex fiber optic auto-negotiation
- Plug-and-Play capability
- USB power via optional Power Adapter Cable
- Supports MDI/MDIX auto-crossover
- Cost-effective mounting and proven solution
- Small and lightweight (5 ounces)
- Supports 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X and the IEEE 802.3 specification
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Country Of Origin: United States
Product Series: GX/T
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 1239-0-1Z
Product Name: Gigabit Fiber Media Converter
Product Line: miConverter
Manufacturer Part Number: 1239-0-1Z
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- Gigabit Fiber Media Converter
- US Power Supply
Limited Warranty: Lifetime
Weight (Approximate): 4 oz
