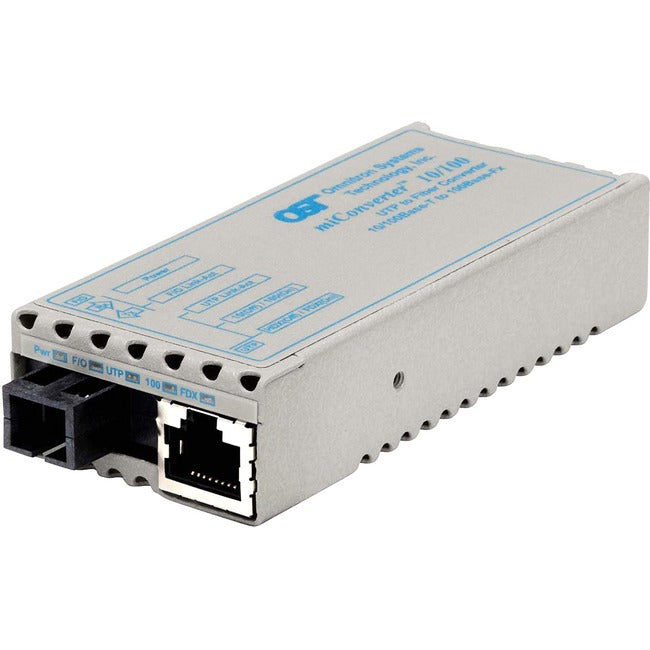

miConverter 10/100 Plus Ethernet Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km
The miniature miConverter 10/100 and miConverter 10/100 Plus are rate-switching 10/100 UTP copper to 100BASE-FX fiber media converters. The miConverter provides cost-effective fiber connectivity from Ethernet switches to diagnostic equipment, desktop and laptop computers.
They can be powered by a computer's USB port using the optional USB Power Adaptor Cable, which reduces the module's weight and eliminates the need to tether the miConverter to an electrical outlet that provide cost-effective fiber network extension and connectivity.
- Miniature 10/100BASE-TX to 100BASE-FX Ethernet media converter
- Supports 10BASE-T, 100BASE-TX, 100BASE-FX and the IEEE 802.3 specification
- Supports Full/Half-Duplex UTP auto-negotiation
- Automatically detects and adjusts crossover function
- Multimode, single-mode and single-fiber options
- ST or SC fiber connector options
- Domestic, Universal and Country/Region specific AC power supply options available
- Optional USB power adapter cable available for operation without AC power adapter
- The miConverter 10/100 Plus features DIP-switches for UTP and Link Mode configurations
- LED indicators for UTP and fiber status
- Wall-mount with optional mounting brackets
- Cost-effective
- Small and light, weighs only 5 ounces (without power supply)
- Lifetime Warranty and free 24/7 Technical Support
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
- The Rack-mountable provides convenient installation
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: 10/100 Plus
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 1131-1-x
Product Name: miConverter 10/100 Plus SC Single-Mode Single-Fiber 15/13 20km US AC Powered
Package Type: Retail
Product Line: miConverter
Manufacturer Part Number: 1131-1-1
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- miConverter 10/100 Plus SC Single-Mode Single-Fiber 15/13 20km US AC Powered
- US Power Supply - 120Volt / 60Hz
- Velcro Strip
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 5 oz
