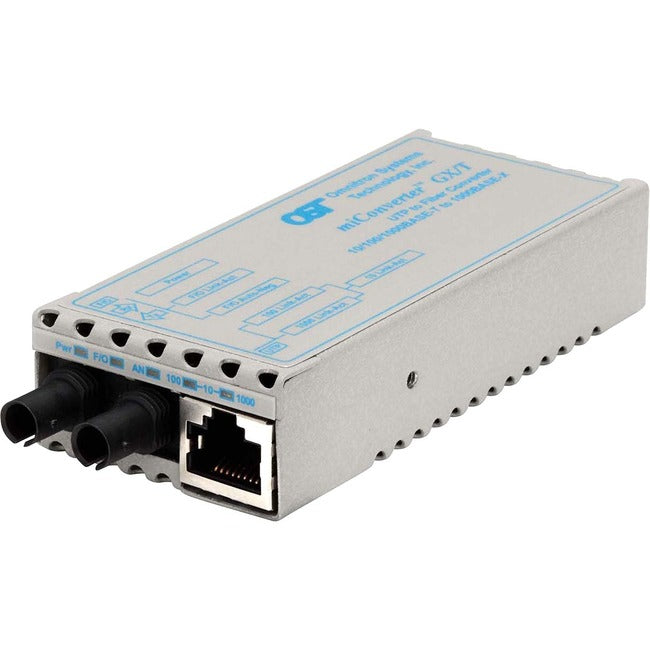

miConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 ST Multimode 550m
The miConverter GX/T is a miniature 10/100/1000BASE-T UTP copper to 1000BASE-X fiber media converter that supports jumbo frames up to 10,240 bytes. The miConverter GX/T provides cost-effective fiber connectivity from Ethernet switches to diagnostic equipment, desktop and laptop computers.
The GX/T also supports multimode, single-mode fiber; and single mode single-fiber models are available.
The GX/T features SC and ST fixed fiber connectors, or Small Form Pluggable (SFP) transceivers.
- Supports 1000BASE-T, 1000BASE-X and the IEEE 802.3 specification
- Plug-and-Play capability
- USB power via optional Power Adapter Cable
- Supports Full/Half-Duplex fiber optic auto-negotiation
- Multimode and single-mode fiber options
- LED indicators for UTP and fiber status
- Domestic, Universal and Country/Region specific power supply options
- Wall-mount with optional mounting brackets or an 18-Module Powered Chassis
- Small and lightweight, only 5 ounces (without power supply)
- Cost-effective
- Commercial (0 to 50C), wide (-40 to 60C), extended (-40 to 75 C) and industrial (-40 to 85C) temperature ranges
- Lifetime Warranty and free 24/7 Technical Support
- Expand your network capabilities with this 2 transceiver/media converter
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- No hassle of internal installation, install externally
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: GX/T
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 1220-0-x
Product Name: miConverter GX/T ST Multimode 550m US AC Powered
Package Type: Retail
Product Line: miConverter
Manufacturer Part Number: 1220-0-1
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- miConverter GX/T SC Multimode 550m US AC Powered
- US Power Supply - 120Volt / 60Hz
- Velcro Strip
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 5 oz
