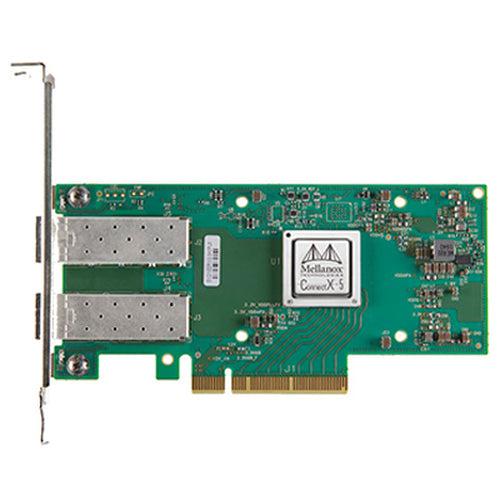

Mellanox Technologies Connectx-5 En Internal Ethernet 25000 Mbit/S

10/25GbE Dual-Port SFP28 PCIe3.0 x8 UEFI Enabled x86 ARM Tall Bracket

Mellanox Technologies ConnectX-5 EN. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 25000 Mbit/s. Product colour: Multicolour

Intelligent RDMA-enabled, single and dual-port network adapter with advanced application offload capabilities for Web 2.0, Cloud, Storage, and Telco platforms.

ConnectX-5 Ethernet adapter cards provide high performance and flexible solutions with up to two ports of 100GbE connectivity, 750ns latency, up to 200 million messages per second (Mpps), and a record setting 197Mpps when running an open source Data Path Development Kit (DPDK) PCIe (Gen 4.0). For storage workloads, ConnectX-5 delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads. ConnectX-5 adapter cards also bring advanced Open vSwitch offloads to telecommunications and cloud data centers to drive extremely high packet rates and throughput with reduced CPU resource consumption, thus boosting data center infrastructure efficiency.

ConnectX-5 adapter cards are available for PCIe Gen 3.0 and Gen 4.0 servers and provide support for 1, 10, 25, 40, 50 and 100 GbE speeds in stand-up PCIe cards, OCP 2.0, and OCP 3.0 form factors. ConnectX-5 cards also offer advanced Mellanox Multi-Host and Mellanox Socket Direct technologies.
