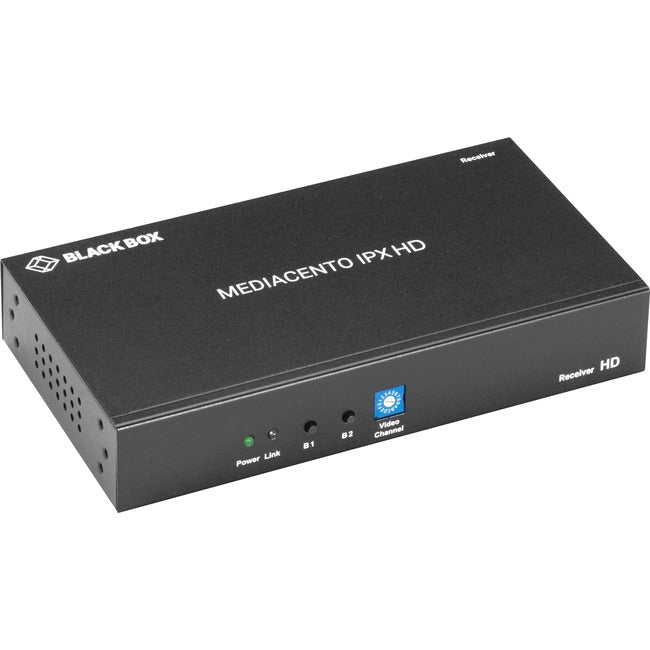

Black Box MediaCento IPX HD Extender Receiver - HDMI-Over-IP
MediaCento IPX HD is great for:
- Touchscreen applications using the iCOMPEL Digital Signage system.
- Basic HDMI video and audio extension direct point to point, or point to multipoint over a gigabit Ethernet network.
- Streaming video to classrooms in schools.
- Corporate video sharing and training.
- Sharing video in command and control room setup.
HDMI HD video over IP
This IP-based video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to unicast HDMI HD video signals on your Gigabit Ethernet network. In a multicast configuration, one transmitter can drive multiple receivers with no extra network load.
HD means better video
The MediaCento IPX HD supports High Defenition video for great pictures up to 1080p.
Plug-and-play setup
Whether you choose to utilize existing LAN infrastructure or set up a dedicated video network, setup is easy. For a unicast setup, simply connect your source, your display, a network switch, and you're ready to go!
PoE support for remote powering
The MediaCento IPX HD is PoE powered eliminating the need for additional power supplies. Using a PoE network switch completely eliminates the need for external power supplies making installation easier.
Create 8x8 video walls
For video streaming and multicasting video over a network to a video wall, see our LPB2900 Series Gigabit PoE+ Managed Switches (LPB2910A, LPB2926A, LPB2952A).
Signals that go for miles
The MediaCento IPX HD Unicast system transmits up to 328 feet (100 m) point to point but goes even further with a network switch added to the mix.
Optimal PC-to-screen performance
MediaCento features EDID copy function and is HDCP 2.2-compliant.
Digital signage and video wall applications:
- Hospitality
- Bars/restaurants
- Retail
- Venues/events
- Corporate multi-room solutions
- Supports up to 1080p HD

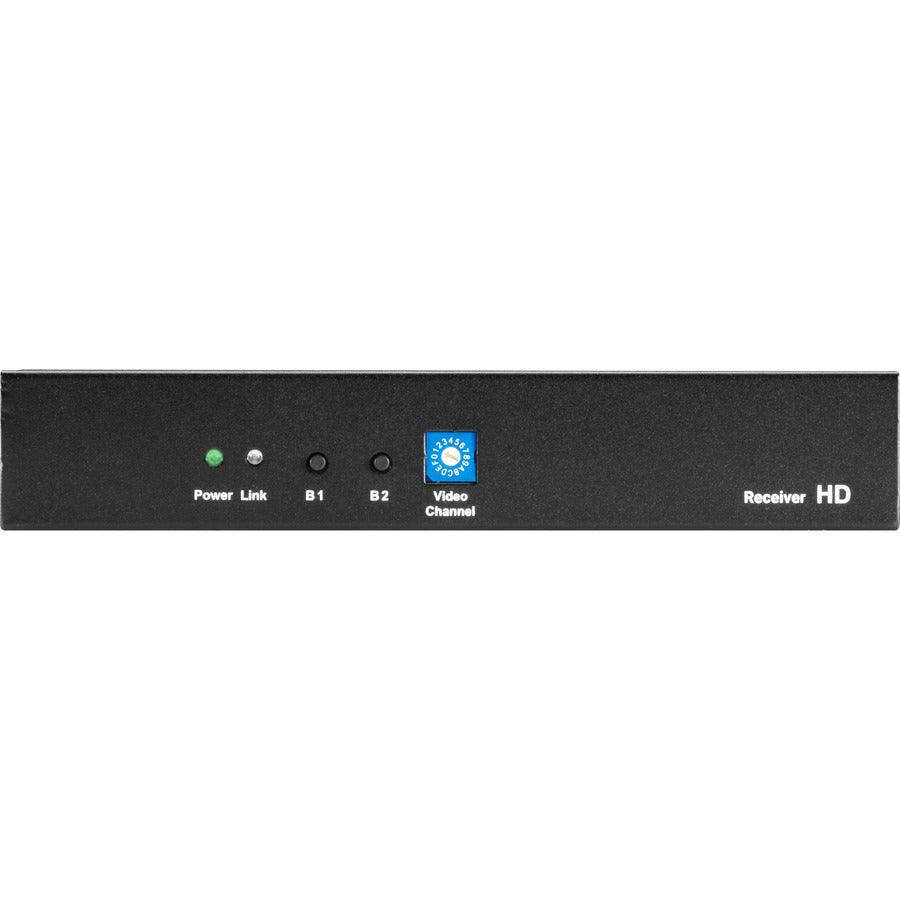

- Setup units using only the front panel interface, no additional configuration required
- Intercompatible with the MediaCento 4k
- Any source to any screen, over IP
- Extend HDMI video signals over a Gigabit Ethernet network
- Create eye-catching video walls of up to 8x8 displays
- PoE power eliminates external power supplies
- Use with the MediaCento Controller for matrix switching and video wall control
- Maximum latency 2 frames or 33ms
Product Type: Video Extender Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Receiver Height: 1.26"
Receiver Width: 7.09"
Receiver Depth: 3.86"
Receiver Weight (Approximate): 1.04 lb
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: MediaCento IPX HD Extender Receiver - HDMI-Over-IP
Product Line: MediaCento
Manufacturer Part Number: VX-HDMI-HDIP-RX
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- MediaCento IPX HD Extender Receiver - HDMI-Over-IP
- 1 x 5-VDC, 3-A Power Supply
- 1 x Quick Start Guide
Limited Warranty: 3 Year
