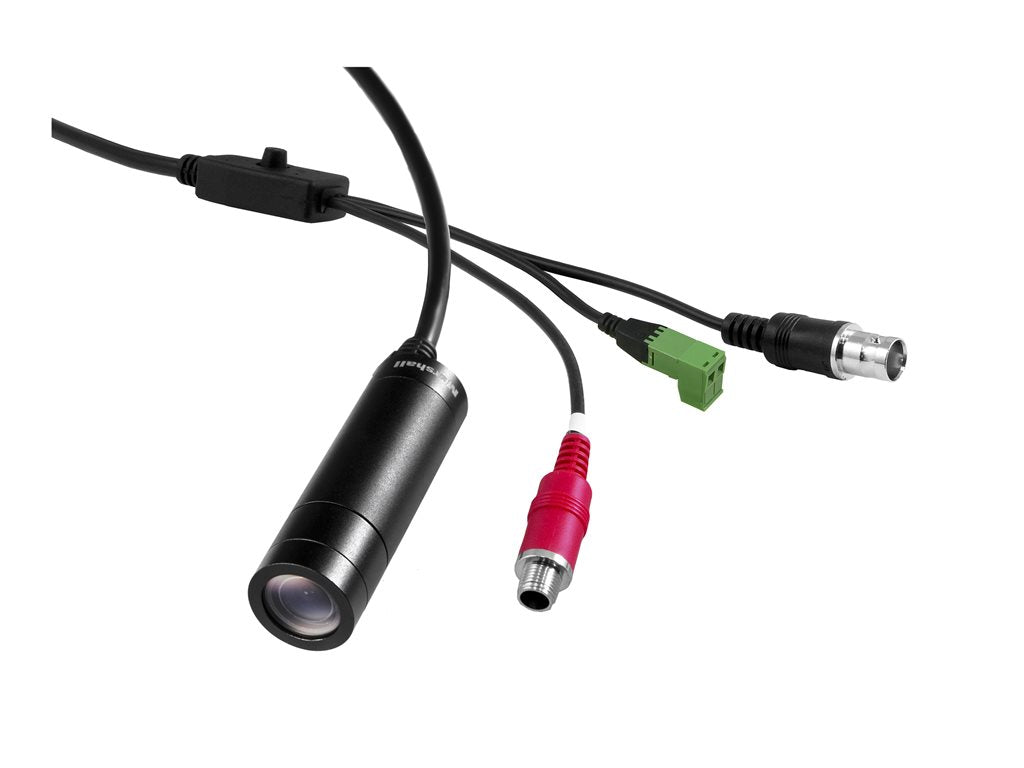

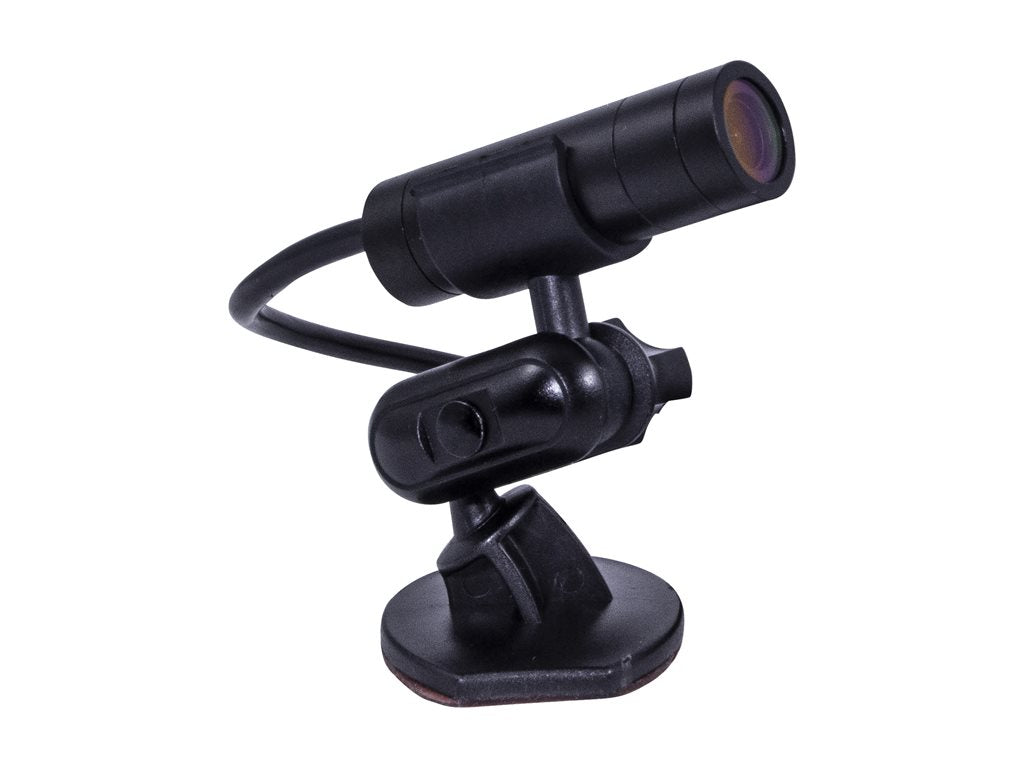

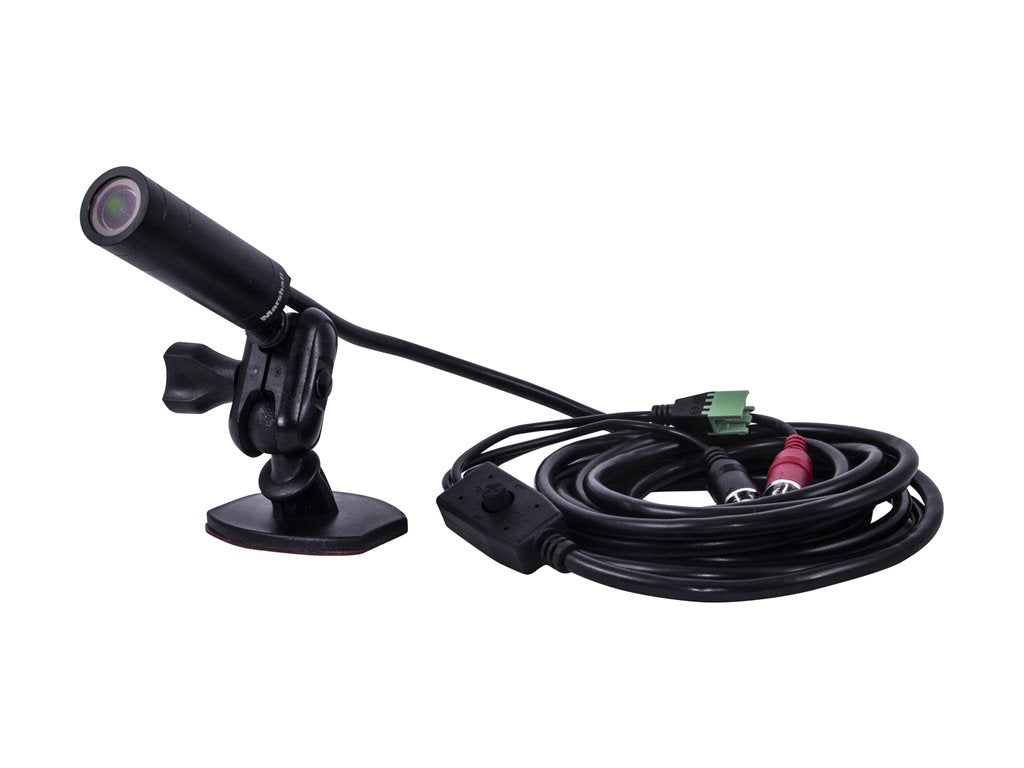

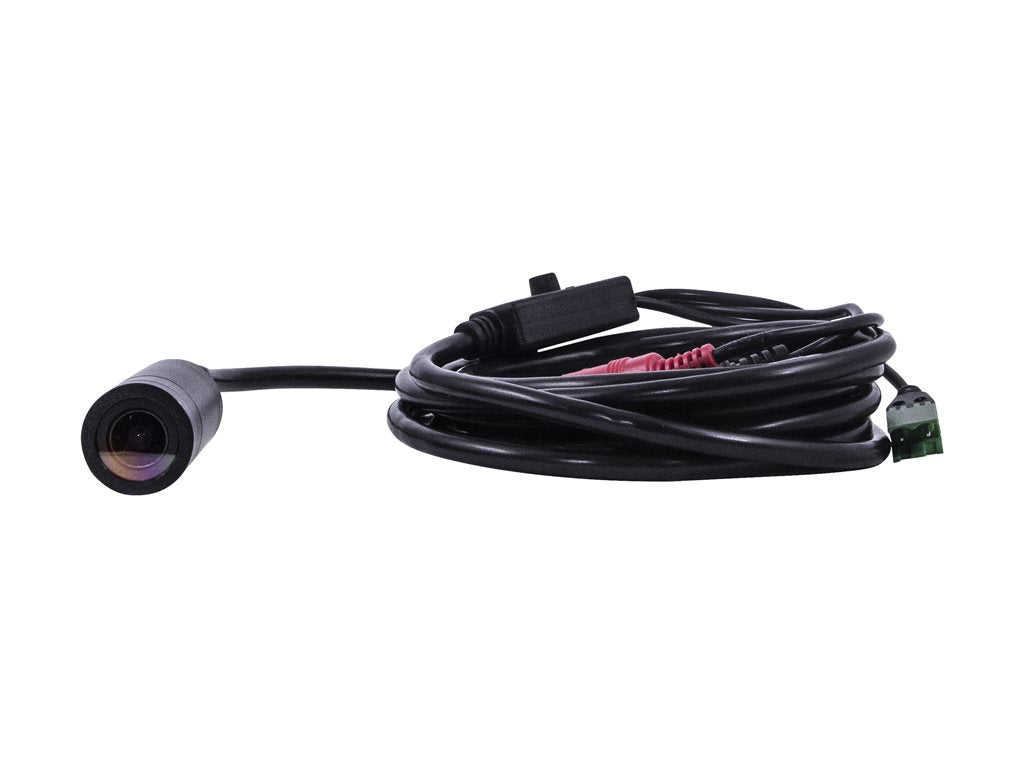

Marshall CV228 - Surveillance camera - lipstick - outdoor - weatherproof - color (Day&Night) - 2.5 MP - 1920 x 1080 - M12 mount - fixed focal - 1000 TVL - HD-SDI, 3G-SDI - DC 12 V
-
Robust surveillance capabilities
The Marshall CV228 features advanced motion detection and day/night functionality, making it suitable for monitoring high-activity areas at any time. Its fixed mechanical design ensures stability in image capture, providing consistent performance.
-
High image quality
Equipped with a lens aperture of f/2.0 and a fixed focal length of 4 mm, this camera delivers crisp images. The digital video capture resolution of up to 1920 x 1080 allows for detailed recordings suitable for analytical purposes.
-
Versatile connectivity options
The camera supports wired connectivity with a serial RS-485 interface for streamlined communication. It is compatible with HD-SDI and 3G-SDI video signals, allowing for versatile integration into existing systems.
-
Environmentally resilient design
With an IP67 rating, the CV228 is protected against dust and capable of withstanding heavy rain, ensuring reliable operation in diverse weather conditions.
-
Enhanced user controls
The camera boasts manual white balance, exposure control, and multiple image adjustments, allowing users to fine-tune settings according to specific surveillance needs.
The Marshall CV228 is designed for versatile surveillance needs, offering weatherproof protection suitable for outdoor use. Equipped with a Progressive Scan CMOS sensor, it has a total of 2,500,000 pixels and supports multiple video modes including 1080/60p and 720/60p. The lens system features a fixed focal length of 4 mm with an aperture of f/2.0, ensuring clear imaging under various conditions. Advanced features such as Wide Dynamic Range, 3D digital noise reduction, and an adjustable gain control provide enhanced video quality, essential for effective monitoring. With a minimum illumination of 0.005 lux, the CV228 excels in low-light environments, capable of day and night functionality. It supports high-definition video signals including HD-SDI and 3G-SDI, ensuring compatibility with a range of devices. The camera operates efficiently on a low voltage power supply with a consumption of 6 W, making it an economical choice for continuous surveillance.
- Weatherproof design for outdoor surveillance
- High-resolution 2,500,000 pixel Progressive Scan CMOS sensor
- Multiple video modes including 1080p and 720p
- Effective low-light performance with minimum illumination of 0.005 lux
- Wide Dynamic Range for clear images in varying lighting conditions
What's in the Box:
- Marshall CV228

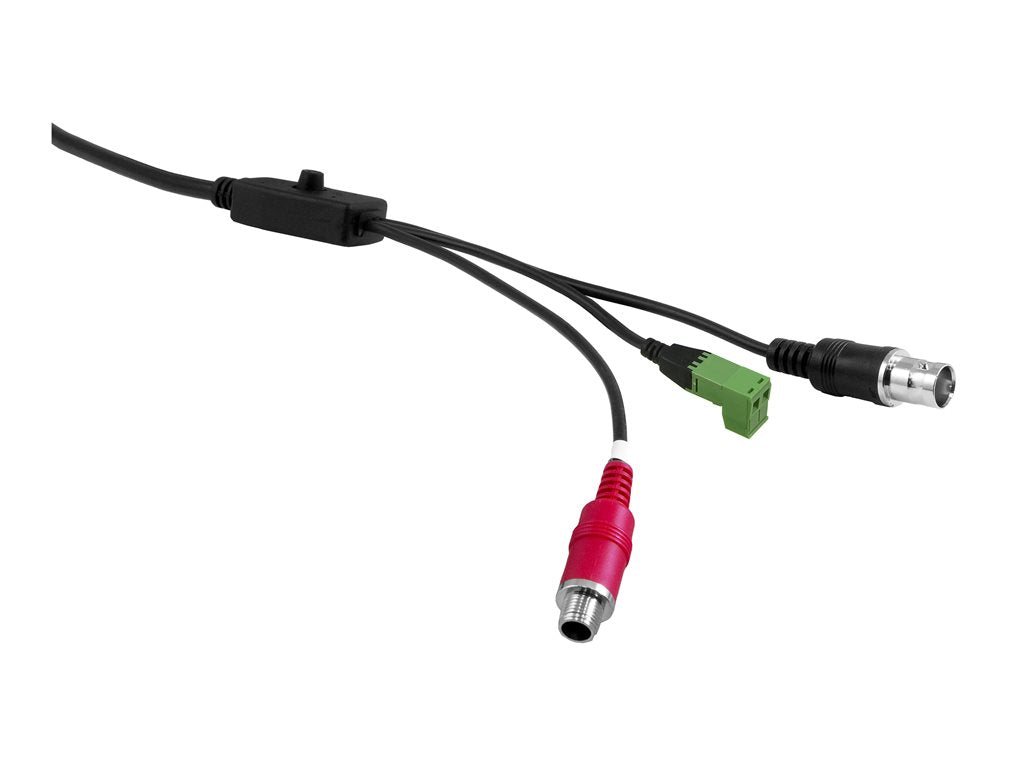

- Breakout cable - 3 m
