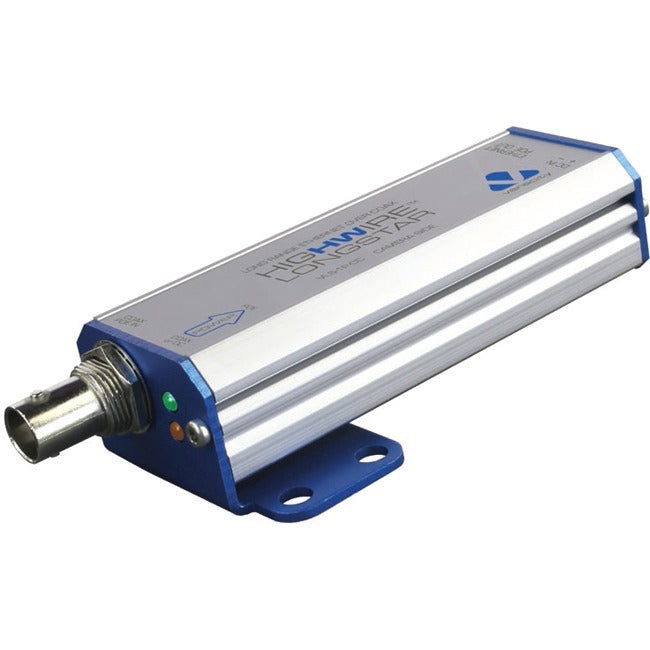

Veracity HIGHWIRE Longstar (Base). Single POE converter with POE in, extended POE out.
HIGHWIRE Longstar delivers unsurpassed distances
HIGHWIRE Longstar delivers a full bandwidth 100Base-T network signal and POE Plus over unsurpassed lengths of regular coaxial cable. It provides the reassurance of exceptional performance and reliability, while enabling considerable savings in the cost, time and risk of upgrading legacy analogue camera installations to IP.
A range of 540 - 690 metres with RG-59 or even up to 1400 metres with RG-11 is supported, without compromising the 100Base-T data rate. For even greater distances it can automatically configure to 10Base-T operation, running approx. three times further with data only
Models with optional POE in or out can deliver the full 25 watts of 802.3at POE Plus to cameras over the same legacy cable. Designed for straight-forward installation, all the HIGHWIRE Longstar models are entirely self-configuring, and feature extended temperature operation, have a rugged enclosure with both wall-mount or high density rack mounting options
Designed for Installers
Used in pairs, installation of HIGHWIRE Longstar is extremely fast and efficient. The devices self-configure and self optimise on connection. No set-up or system pairings are required. Data and power connections are easily monitored during installation using the embedded LEDs. The system incorporates Veracity's SafeView™ technology, which provides instant confirmation of link status, power level and diagnostic information.
Flexible High Performance
Although designed for 75 Ohm cable, HIGHWIRE Longstar will operate over 50 Ohm cable with full performance and only a slight reduction in the maximum distance attainable.
POE - Simple Reliability
POE-equipped models allow all of the power for the link to be sourced from a POE switch, POE injector or power supply, for simple installation and optional UPS backed power delivery for high resilience against grid power failures.
- Up to 4.2km (2.5 miles) data-only link at 10Base-T without POE
- BS EN 50121-4 compliant (rail and metro)
- Fully automatic, simple to install and maintenance-free
- Ruggedised for high-performance over extreme temperature range
- Unrestricted 100Base-T and POE over 1400m (4,600ft) on RG11
- Long range Ethernet and POE over new or legacy coaxial cable
Product Type: Network Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Taiwan
Brand Name: Veracity
Length: 4.5"
Manufacturer: Veracity USA, Inc
Product Name: HIGHWIRE Longstar (Base). Single POE converter with POE in, extended POE out.
Product Line: HIGHWIRE Longstar
Manufacturer Part Number: VLS-1P-BC
Manufacturer Website Address: http://www.veracityusa.com
