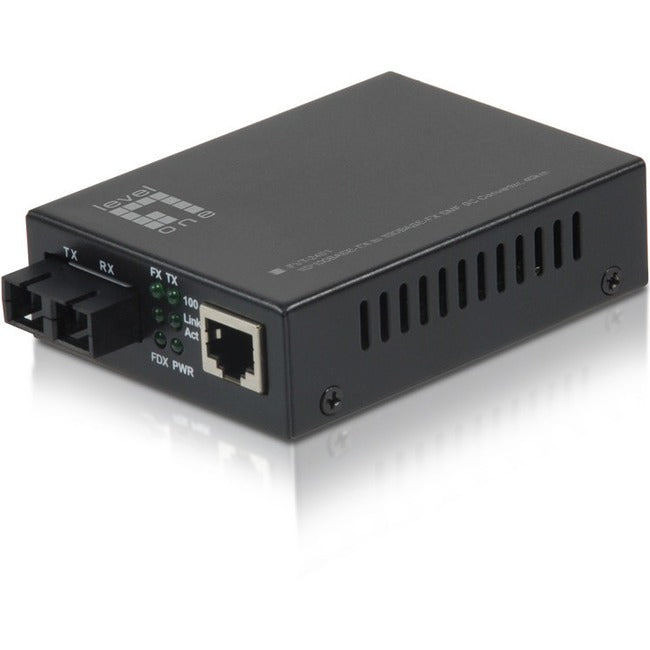

LevelOne 10/100BASE-TX to 100BASE-FX SMF SC Converter, 40km
The FVT-2401 SMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in single-mode with fibre-optic cabling, this can extend a network range up to 40 km.
The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode.
The FVT-2401 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19-inch Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.
- -10°C to 55°C operating temperature range
- Supports low-time lag transmission
- Supports the transmission of extra-long packets up to 1.6KB
- Dip switches for customized configuration
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
- Single-mode fiber with SC connector for transmission of up to 40km
- Transfers data from 10/100Base-TX copper to fiber interfaces
Product Type: Transceiver/Media Converter
Brand Name: LevelOne
Form Factor: Desktop
Manufacturer: CP Technologies
Product Model: FVT-2401
Product Name: 10/100BASE-TX to 100BASE-FX SMF SC Converter, 40km
Manufacturer Part Number: FVT-2401
Manufacturer Website Address: http://www.cptechusa.com
Package Contents:
- 10/100BASE-TX to 100BASE-FX SMF SC Converter, 40km
- Power Adapter
- Quick Installation Guide
Weight (Approximate): 14.82 oz
