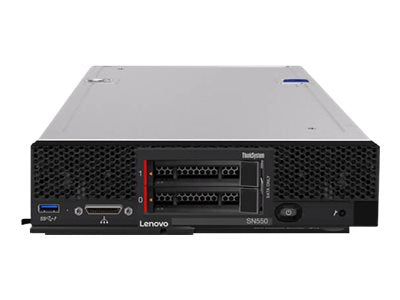

Lenovo ThinkSystem SN550 7X16 - Server - blade 2-way - 1 x Xeon Silver 4110 up to - RAM 16 GB - no HDD - Matrox G200 - no OS - monitor: none
-
Enhanced security
Equipped with Trusted Platform Module (TPM 1.2 and TPM 2.0), the Lenovo ThinkSystem SN550 offers robust security features to protect against unauthorized access and ensure data integrity.
-
Scalable performance
With support for up to 2 Intel Xeon Silver processors, the server offers scalability, making it an ideal choice for growing businesses that require increased processing power.
-
Advanced memory capabilities
Features such as Memory Mirroring, Memory Sparing, and TruDDR4 technology, combined with the capacity to hold up to 24 DIMM 288-pin DDR4 SDRAM modules, ensure high-speed, reliable memory performance.
-
Comprehensive compliance
Meets a wide range of compliance standards including ASHRAE Class A3, BSMI, CB, and many more, ensuring it meets global regulatory requirements and industry standards.
-
Versatile connectivity
Offers multiple interface options including USB 3.0 and management ports located in front for easy access, enhancing connectivity and management capabilities.
The Lenovo ThinkSystem SN550 is a high-performance server that offers enhanced security, efficiency, and reliability features to handle business-critical workloads. The blade server incorporates up to two Intel Xeon Processor Scalable Family of processors. The processors feature up to 28 cores each and use Lenovo TruDDR4 memory, which runs at speeds up to 2666 MHz.
- Up to 14 SN550 servers can be installed in one Flex System Enterprise chassis
- Improves productivity by offering superior system performance with up to 28-core processors, up to 38.5 MB of L3 cache, two 10.4 GT/s Ultra Path Interconnect links and a Thermal Design Power (TDP) rating of up to 165 W
- Supports up to two processors, 56 cores, and 112 threads, which maximizes the concurrent execution of multi-threaded applications
- Intelligent and adaptive system performance with energy-efficient Intel Turbo Boost technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor TDP
- Intel Hyper-Threading technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core
- Intel Virtualization technology integrates hardware-level virtualization hooks that allow operating system vendors to better use the hardware for virtualization workloads
- Intel Advanced Vector Extensions 512 (AVX-512) enable acceleration of enterprise-class workloads, such as databases and enterprise resource planning
- Each processor has 6 memory channels with up 2 two DIMMs per channel running at up to 2666 MHz
- Embedded 4-port 10Gb Intel adapter built into the system board is based on the Intel Ethernet Connection X722 network controller
- With Intel Integrated I/O technology, the PCI Express 3.0 controller is integrated into the Intel Xeon processor Scalable family
- Support for high-bandwidth I/O adapters; up to two in each SN550 server
- Support for 40 Gb Ethernet, 16 Gb Fiber Channel, and FDR InfiniBand
- High-speed USB 3.0 port for connectivity to external devices
