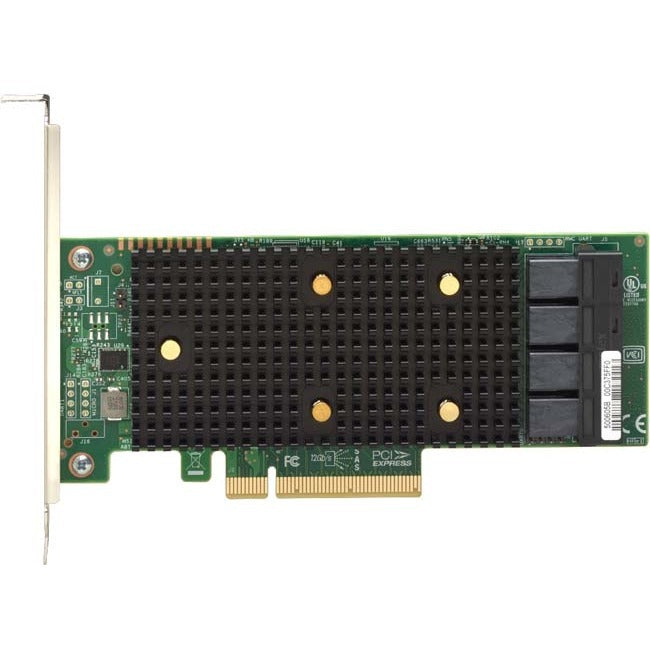

Lenovo ThinkSystem SD530 430-8i SAS/SATA 12Gb Dense HBA Kit
The Lenovo ThinkSystem 430-8i and 430-16i SAS/SATA 12Gb HBAs are high performance host bus adapters for internal storage connectivity in ThinkSystem servers. They integrate the latest enhancements SAS technology and offer eight or 16 lanes of 12 Gbps SAS.
- Advanced power management support
- High performance architecture with very deep queue depth of up to 10,240
- Optimized for SSD performance
- Support internal SAS tape drives
- Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported)
- Two internal x4 HD Mini-SAS connectors (SFF-8643)
- 8 or 16 internal 12 Gbps SAS/SATA ports: 430-8i support connectivity to 8 internal drives
- PCI low profile, half-length form factor
- 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
- PCIe 3.0 x8 host interface
Product Type: SAS Controller
Environmentally Friendly: Yes
Environmental Certification: WEEE
Card Height: Full-height/Low-profile
Brand Name: Lenovo
Form Factor: Plug-in Card
Manufacturer: Lenovo Group Limited
Product Model: 430-8i
Product Name: ThinkSystem SD530 430-8i SAS/SATA 12Gb Dense HBA Kit
Manufacturer Part Number: 4C57A16217
Manufacturer Website Address: http://www.lenovo.com/us/en/
Platform Supported: PC
Package Contents:
- ThinkSystem SD530 430-8i SAS/SATA 12Gb Dense HBA Kit
- Documentation Flyer
- SAS Cables for use in the SD530
Limited Warranty: 1 Year
