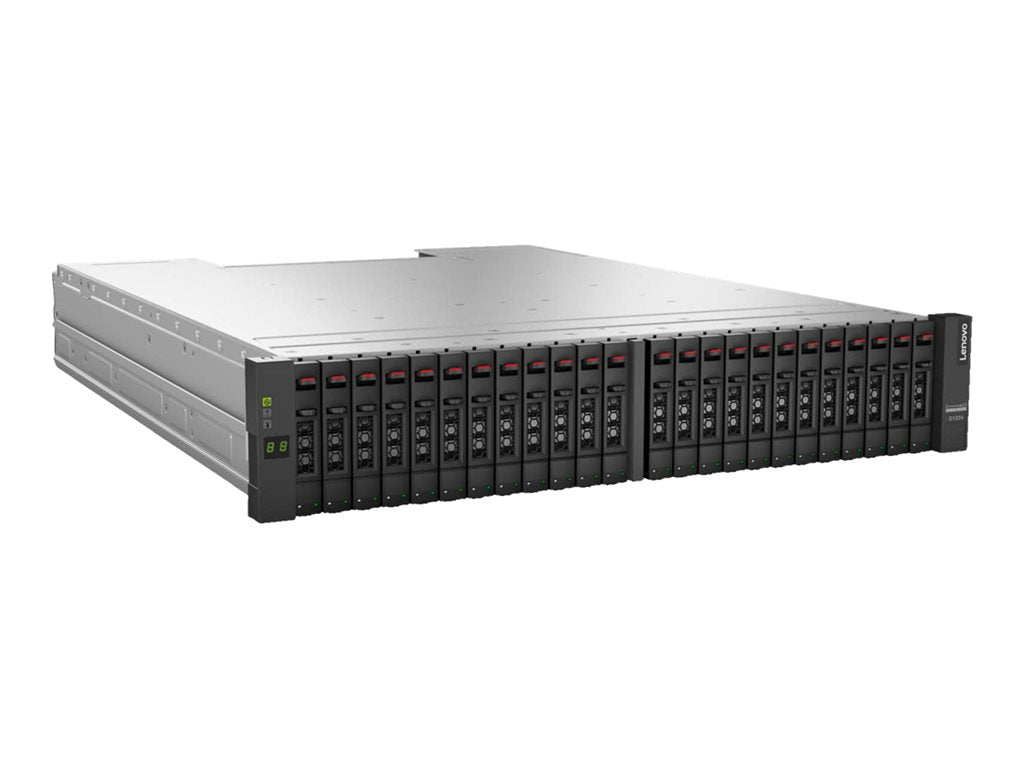

Lenovo Storage D1224 4587 - Storage enclosure - 24 bays (SAS-3) - rack-mountable - 2U
-
Robust scalability
Designed to support up to 24 devices or modules, the Lenovo Storage D1224 offers a scalable solution for growing storage needs. With support for Serial Attached SCSI 3 interface, it ensures high-speed data transfer and reliability for critical applications.
-
Efficient management
Equipped with RJ-45 connectors for management purposes, this storage enclosure simplifies the task of system administration, allowing for efficient monitoring and management of the storage environment.
-
Highly compliant
Meeting a wide range of compliance standards including BSMI CNS 13438 Class A, FCC Part 15 A, and RoHS, the Lenovo Storage D1224 ensures operation within regulatory frameworks, making it suitable for deployment in various global markets.
-
Enhanced reliability
The dual hot-plug power supplies with a 1+1 redundancy scheme and a power output of 580 W provide a reliable power source, minimizing downtime and ensuring continuous operation.
-
Optimized for environmental conditions
With an operating humidity range of 20 - 80% (non-condensing) and temperature tolerance from 5°C to 40°C, the Lenovo Storage D1224 is built to perform reliably in a wide range of environmental conditions.
The Lenovo Storage D1224 Disk Expansion Enclosures offer 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide simplicity, speed, scalability, security, and high availability for small to large businesses. The D1224 deliver enterprise-class storage technology in a cost-effective solution with flexible drive configurations and RAID or JBOD (non-RAID) host connectivity.
This product guide provides essential pre-sales information to understand the structure of the D1224 drive enclosure offerings, their key features and specifications, components and options, and configuration guidelines.
- Versatile, scalable storage expansion with dual Environmental service Module (ESM) configurations for high availability and performance
- Flexible host connectivity to match diverse client needs for direct attach storage with support for 12 Gb SAS RAID adapters for advanced data protection or 12 Gb SAS Host Bus Adapter (HBA) for maximum JBOD performance
- Flexibility in storing data on high performance SAS SSDs, performance-optimized enterprise SAS HDDs, or capacity-optimized enterprise NL SAS HDDs; mixing and matching drive types and form factors on a single RAID adapter or HBA to perfectly meet performance and capacity requirements for various workloads
- Self-encrypting drives with a supported RAID adapter allow clients to secure their sensitive data and to comply with various security regulations when required
- Support multiple host attachments and SAS zoning for storage partitioning
