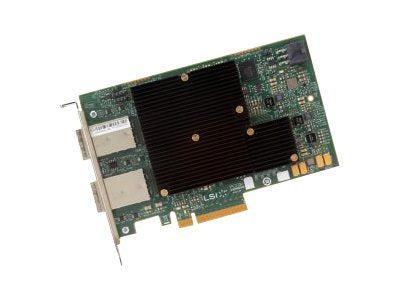

Lenovo N2226 Interface Cards/Adapter Sas, Sata

N2226 12Gbps SAS/SATA External HBAs for System X

Lenovo N2226. Host interface: PCIe, Output interface: SAS,SATA, Expansion card form factor: Full-height. Product colour: Black, Green, Silver, Purpose: Server, Certification: UL, cUL, IEC60950, EMC, FCC, CE, VCCI, BSMI, C-tick, KC. Data transfer rate (max): 12 Gbit/s, Dell E-Value Code: A5M1. Linux operating systems supported: RedHat EL Linux 6.0,RedHat EL Linux 7.0, Server operating systems supported: SUSE Linux Enterprise Server 11,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2, Other operating systems supported: VMware vSphere ESXi. Width: 18 mm, Depth: 170 mm, Height: 111 mm

The N2225 and N2226 SAS/SATA HBAs provide high performance for storage connectivity for servers by integrating the latest enhancements in PCI Express and SAS technology, offering eight lanes (N2225) or 16 lanes (N2226) of 12 Gbps SAS matched with eight lanes of PCIe 3.0 to eliminate performance bottlenecks and provide high data transfer rates for medium-to-large capacity server storage applications.

The N2225 and N2226 SAS/SATA HBAs support SAS data transfer rates of 3, 6, and 12 Gbps per lane and SATA transfer rates of 3 and 6 Gbps per lane, and they enable maximum connectivity and performance in a low-profile (N2225) or full-height (N2226) form factor.

Rigorous testing of the N2225 and N2226 SAS/SATA HBAs by Lenovo through the ServerProven® program ensures a high degree of confidence in storage subsystem compatibility and reliability. Providing an additional peace of mind, these controllers are covered under Lenovo warranty.
