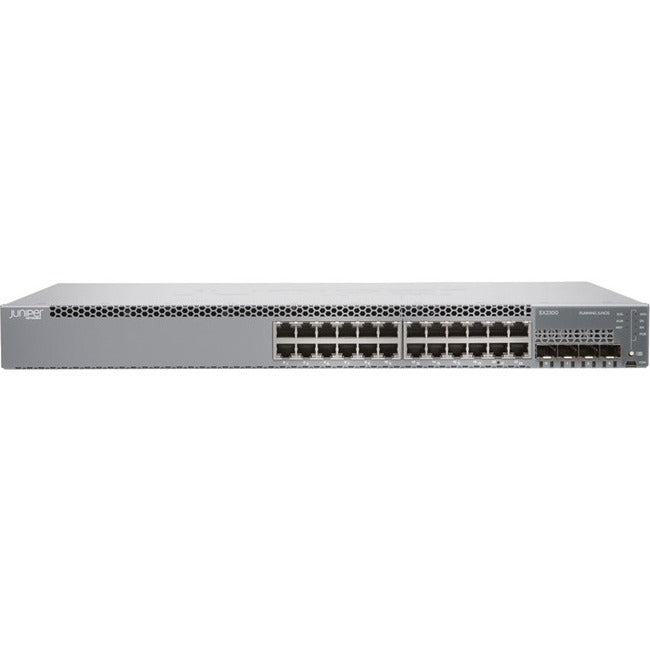

Lenovo Juniper EX2300-24P PoE Switch
The Juniper EX2300-C-12P and EX2300-24P Ethernet switches for Lenovo with Power over Ethernet (PoE) deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, these switches are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
The EX2300-C-12P offers 12x 10/100/1000BASE-T ports in a single platform, while the EX2300-24P offers 24x 10/100/1000BASE-T ports. Both models offer Power over Ethernet (PoE) for powering attached network devices, such as such as telephones, video cameras, IEEE 802.11ac WLAN access points, and videophones. Optional front panel 10GbE uplink ports support connections to higher-layer devices.
The EX2300 switches support L2 switching protocols as well as L3 routing protocols like RIP and static routing that are included in the base license. An enhanced license is available via special bid for supporting additional L3 protocols such as OSPF, Internet Group Management Protocol (IGMP v1/v2/v3), Protocol Independent Multicast (PIM), and Virtual Router Redundancy Protocol (VRRP), as well as IEEE 802.1 Q-in-Q VLAN tunneling.
- Customers who want to implement a converged infrastructure with NAS or iSCSI
- Customers who want to avoid oversubscription, which can result in congestion and loss of performance
- Customers who want to reduce total cost of ownership (TCO) and improve performance while maintaining high levels of availability and security
- Customers who require investment protection for 10 GbE ports
- Customers who are implementing a virtualized environment and require multiple GbE ports
- Customers who want to use GbE in their infrastructure (servers and networking)
- Customer who need economical network connectivity solution for access layer deployments in branch and remote offices, as well as enterprise campus networks
- Customers who are implementing Power over Ethernet (PoE) standards for supporting networked devices such as telephones, video cameras, IEEE 802.11ac WLAN access points, and videophones in converged networks
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: TV-GS
Compatible Rack Unit: 1U
Product Series: EX2300
Brand Name: Lenovo
Form Factor: Desktop
Manufacturer: Lenovo Group Limited
Product Model: EX2300-24P
Product Name: Juniper EX2300-24P PoE Switch
Manufacturer Part Number: 7165H2X
Manufacturer Website Address: http://www.lenovo.com/us/en/
Package Contents:
- Juniper EX2300-24P PoE Switch
- Generic Rack Mount Kit (2-post) (EX2300-24P only)
- Power Cord Retainer Clip
- RJ-45 (plug) to RJ-45 (plug) cable with the DB-9 (plug) to RJ-45 (jack) adapter attached
- Documentation package
Limited Warranty: Lifetime
Weight (Approximate): 9.92 lb
