Lenovo Ce0152Pb Managed L2/L3 Gigabit Ethernet (10/100/1000) Power Over Ethernet (Poe) 1U Black

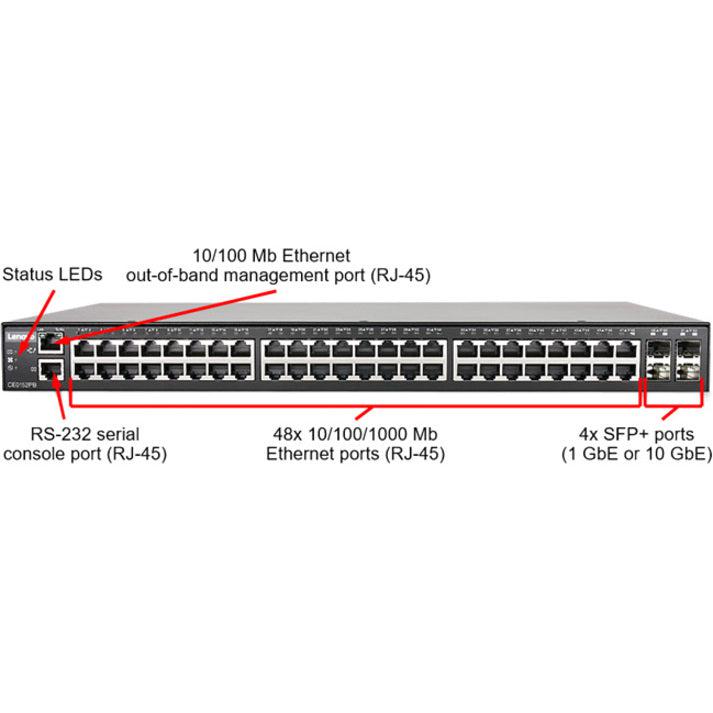

1U, 48 x 1GB LAN, 4 x SFP/SFP+, 1 x RS-232, 1 x RJ-45 (Management), 4.6 kg

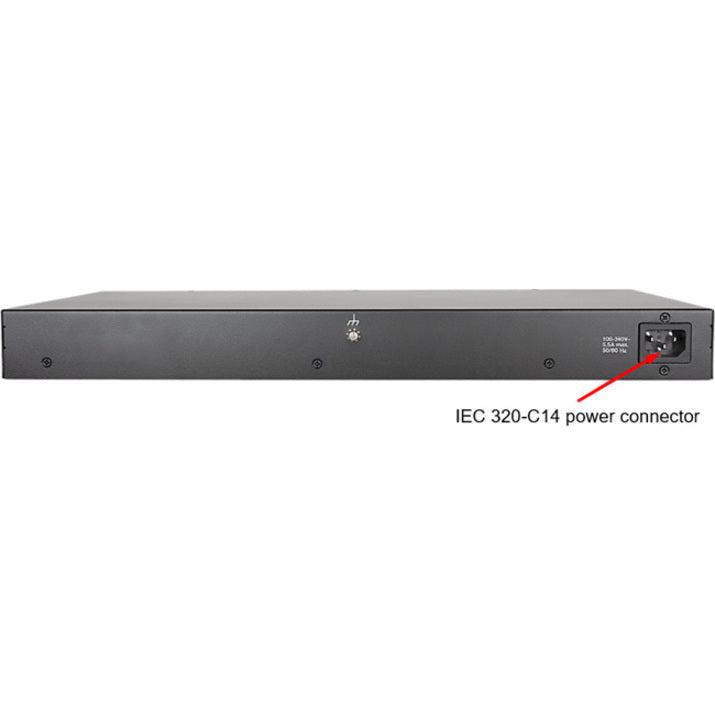

Lenovo CE0152PB. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP+ modules quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 16384 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

The Lenovo CE0152PB Switch is a 1/10 Gb Ethernet (GbE) switch with Power over Ethernet (PoE) that delivers a compact, high-density, cost-effective GbE solution for network environments where space and power are at a premium. Featuring a small, 1U footprint, this switch is designed for access-layer deployments in branches, retail and workgroup environments, and campus networks. It can also be used as a management network switch in the data center infrastructures

The CE0152PB switch offers 48x 10/100/1000BASE-T (RJ-45) fixed ports with Power over Ethernet (PoE) for powering attached network devices, such as such as telephones, video cameras, IEEE 802.11ac WLAN access points, and videophones. The switch also offers 4x SFP+ ports that support 1 GbE and 10 GbE optical transceivers, 10 GbE active optical cables (AOCs), and 10 GbE direct attach copper (DAC) cables. The switch supports a wide range of L2 and L3 features that provide performance, availability, security, and manageability for campus networks.

High performance
The 1/10 GbE CE0152PB switch provides a combination of low latency and non-blocking, line-rate switching.

Availability and redundancy
The CE0152PB switch offers learns alternate routes automatically and performs faster convergence in case of a link or switch failure

Unified communications
The CE0152PB switch provides flexibility for the most demanding converged data, voice, and video environments, delivering a reliable platform for unifying enterprise communications by providing PoE to VoIP telephones, videophones, closed-circuit security cameras, wireless access points, and other IP-enabled devices.

Layer 3 functionality
In addition to Layer 2 switching, the CE0152PB switch includes Layer 3 functionality, which provides security and performance benefits of inter-VLAN routing with support for static routes and dynamic routing protocols, including Routing Information Protocol (RIP) and Open Shortest Path First (OSPF).

Quality of Service
The CE0152PB switch supports traffic classification and processing to provide consistent network performance and efficient use of network bandwidth by allocating and scheduling resources based on service levels requirements for different data streams.

Security
Working as an enforcement point, the CE0152PB switch provides standards-based 802.1x portlevel access control for multiple devices per port, as well as Layer 2-4 policy enforcement with Access Control Lists (ACLs).

Stacking
The CE0152PB supports stacking of up to eight campus switches (including intermix of CE0128TB, CE0128PB, CE0152TB, and CE0152PB switches), enabling simplified, centralized management of a single logical entity that uses a single switch image, configuration file, management IP address, and management interface.
