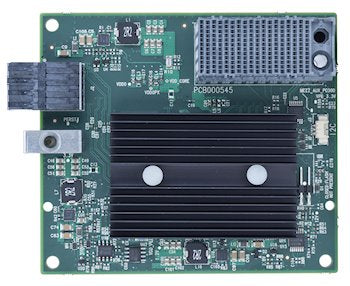

Lenovo 90Y3454 Network Card Internal

Flex System IB6132 2-port FDR InfiniBand Adapter

Lenovo 90Y3454. Internal. Connectivity technology: Wired, Host interface: PCI Express. Product colour: Black, Green

The Flex System IB6132 2-port FDR InfiniBand Adapter and Mellanox ConnectX-3 Mezz FDR 2-Port InfiniBand Adapter deliver low latency and high bandwidth for performance-driven server clustering applications in enterprise data centers, high-performance computing (HPC), and embedded environments. The adapter is designed to operate at InfiniBand FDR speeds (56 Gbps or 14 Gbps per lane).

Clustered databases, parallelized applications, transactional services, and high-performance embedded I/O applications potentially achieve significant performance improvements, helping to reduce completion time and lower the cost per operation. These Mellanox ConnectX-3 adapters simplify network deployment by consolidating clustering, communications, and management I/O, and helps provide enhanced performance in virtualized server environments.

Mellanox ConnectX-3 technology provide a high level of throughput performance for all network environments by removing I/O bottlenecks in mainstream servers that are limiting application performance. Servers can achieve up to 56 Gbps transmit and receive bandwidth. Hardware-based InfiniBand transport and IP over InfiniBand (IPoIB) stateless off-load engines handle the segmentation, reassembly, and checksum calculations that otherwise burden the host processor.

RDMA over the InfiniBand fabric further accelerates application run time while reducing CPU utilization. RDMA allows very high-volume transaction-intensive applications typical of HPC and financial market firms, as well as other industries where speed of data delivery is paramount to take advantage. With the ConnectX-3-based adapter, highly compute-intensive tasks running on hundreds or thousands of multiprocessor nodes, such as climate research, molecular modeling, and physical simulations, can share data and synchronize faster, resulting in shorter run times. High-frequency transaction applications are able to access trading information more quickly, making sure that the trading servers are able to respond first to any new market data and market inefficiencies, while the higher throughput enables higher volume trading, maximizing liquidity and profitability.

In data mining or web crawl applications, RDMA provides the needed boost in performance to search faster by solving the network latency bottleneck associated with I/O cards and the corresponding transport technology in the cloud. Various other applications that benefit from RDMA with ConnectX-3 include Web 2.0 (Content Delivery Network), business intelligence, database transactions, and various Cloud computing applications. Mellanox ConnectX-3's low power consumption provides clients with high bandwidth and low latency at the lowest cost of ownership.
