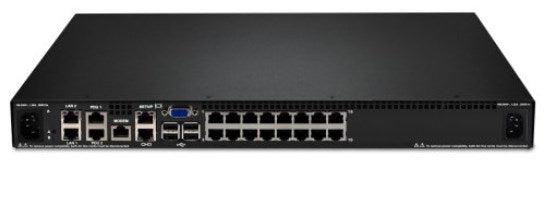

Global Console Manager GCM16, 16 ports, 1U Rack, Black
Lenovo 1754D1X. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u. Maximum resolution: 1600 x 1200 pixels. Product colour: Black, Rack capacity: 1U. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 18 W
The IBM GCM16 Global Console Manager includes the following items:
- 16-port console switch - Mounting hardware for EIA space for rack sidewall compartment - One 1U filler panel - Two C13/C14 rack power cables - RJ45-DB9F DCE adapter for use with Setup port - RJ45-DB9M DTE adapter for use with Modem port - 16 terminators for daisy-chaining configurations - Installation publications and warranty
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
1754D1X
Manufacturer Website Address
http://www.lenovo.com/us/en/
Brand Name
Lenovo
Product Model
GCM16
Product Name
GCM16 KVM Switch
Product Type
KVM Switchbox
UPC
883436082860
Network (RJ-45)
Yes
Height
1.7"
Width
17"
Depth
9.2"
Weight (Approximate)
7 lb
Miscellaneous
Package Contents
GCM16 KVM Switch
Mounting Hardware
1 x 1U Filler Panel
2 x C13/C14 Rack Power Cables
RJ45-DB9F DCE Adapter
RJ45-DB9M DTE Adapter
16 Terminators
Installation Publications and Warranty
Warranty
Limited Warranty
3 Year
