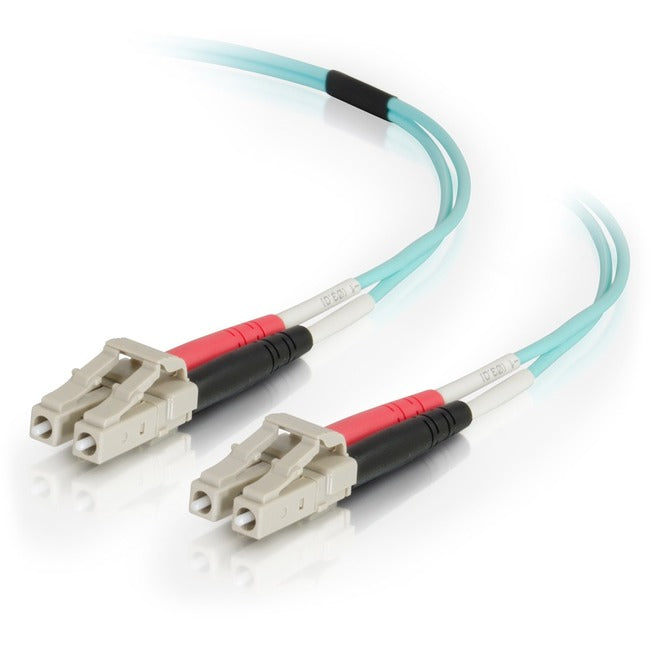

1M LC-LC 50/125 OM4 Duplex PVC Fiber Optic Cable
The Legrand DAT 1M LC-LC 50/125 OM4 duplex PVC fiber optic cable delivers high-speed data transmission for modern network infrastructure. This OM4 multimode fiber cable is engineered for enterprise-grade connectivity, supporting 10 Gigabit Ethernet and beyond. Perfect for data centers, server rooms, and high-performance computing environments, this LC-LC fiber patch cable ensures reliable signal integrity over extended distances. The duplex configuration enables simultaneous bidirectional communication, while the PVC jacket provides durability and flame resistance for demanding installations.
Key Features
- 1-meter length LC-LC fiber optic cable for flexible deployment
-
OM4 multimode fiber supports up to 10 Gigabit Ethernet transmission
- Duplex configuration enables full-duplex communication
- 50/125 micron core/cladding diameter for optimal performance
- PVC jacket provides flame resistance and environmental protection
- Precision-polished LC connectors ensure minimal signal loss
- Compatible with standard fiber optic network equipment
- Ideal for data center, server, and network backbone applications
Technical Specifications
| Specification |
Value |
| Manufacturer |
Legrand DAT |
| Part Number |
00997 |
| Cable Length |
1 Meter |
| Connector Type |
LC-LC Duplex |
| Fiber Type |
50/125 Multimode (OM4) |
| Jacket Material |
PVC |
| Transmission Speed |
Up to 10 Gbps |
| Wavelength Support |
850nm / 1300nm |
| Insertion Loss |
<0.3dB per connector |
Frequently Asked Questions
What is an OM4 multimode fiber cable used for?
OM4 multimode fiber cables are designed for high-speed data transmission in enterprise networks. They support 10 Gigabit Ethernet over distances up to 550 meters, making them ideal for data centers, server interconnects, and backbone networks where reliable, fast connectivity is essential.
What is the difference between LC and other fiber connectors?
LC connectors feature a small form factor with a 1.25mm ferrule, making them compact and ideal for high-density installations. The LC-LC fiber patch cable configuration provides a secure, low-loss connection suitable for modern network equipment and patch panels.
Is this fiber optic cable suitable for outdoor use?
The PVC jacket provides flame resistance and environmental protection for indoor installations. For outdoor applications, cables with specialized outdoor-rated jackets are recommended. This 1M LC-LC 50/125 OM4 duplex cable is optimized for controlled indoor environments such as data centers and server rooms.
How do I ensure proper installation of this LC-LC fiber cable?
Ensure connectors are clean and properly aligned before insertion. Use appropriate cable management to avoid sharp bends that exceed the cable's minimum bend radius. Professional installation is recommended for critical network applications to maintain signal integrity and minimize insertion loss.
