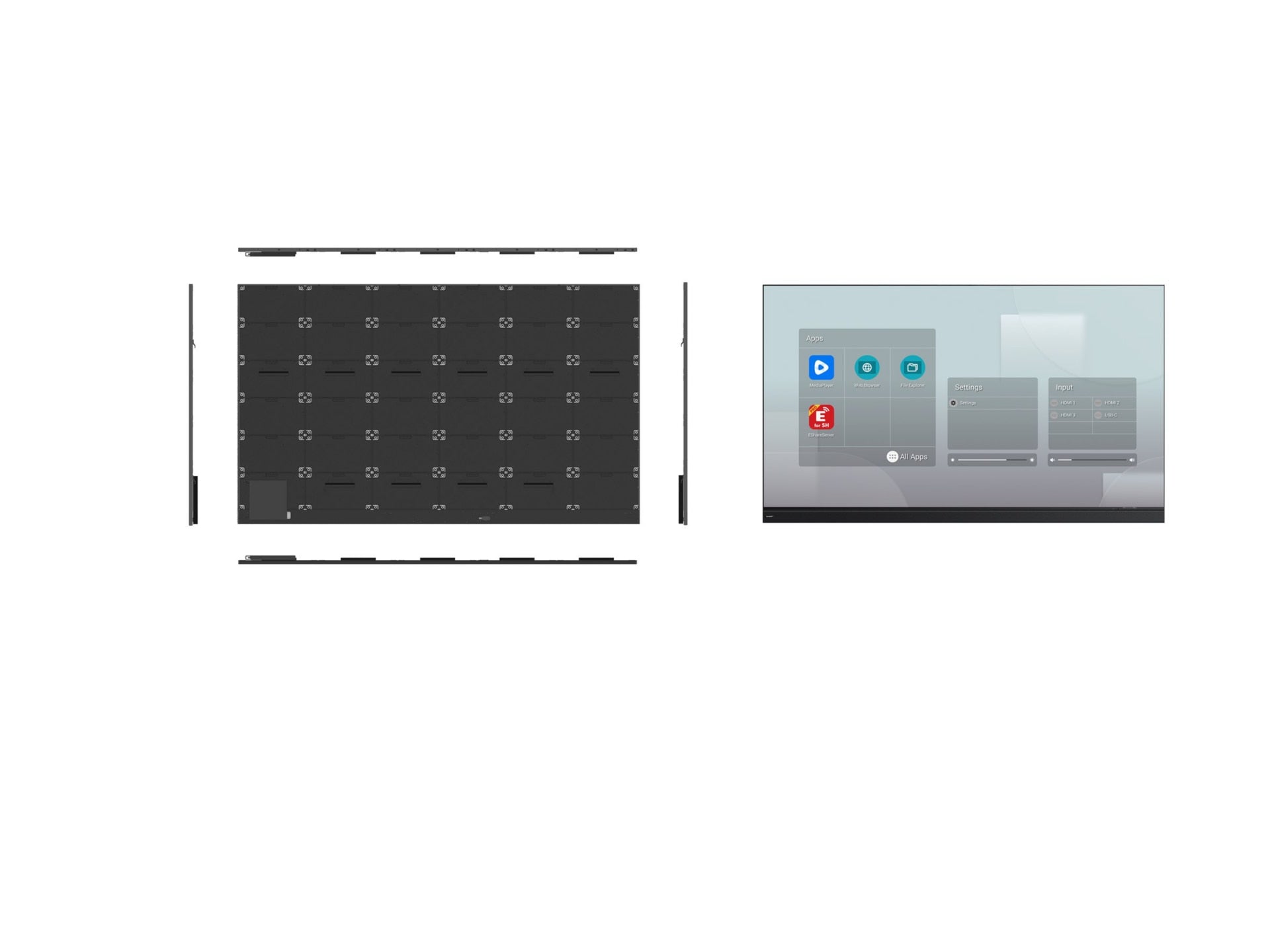

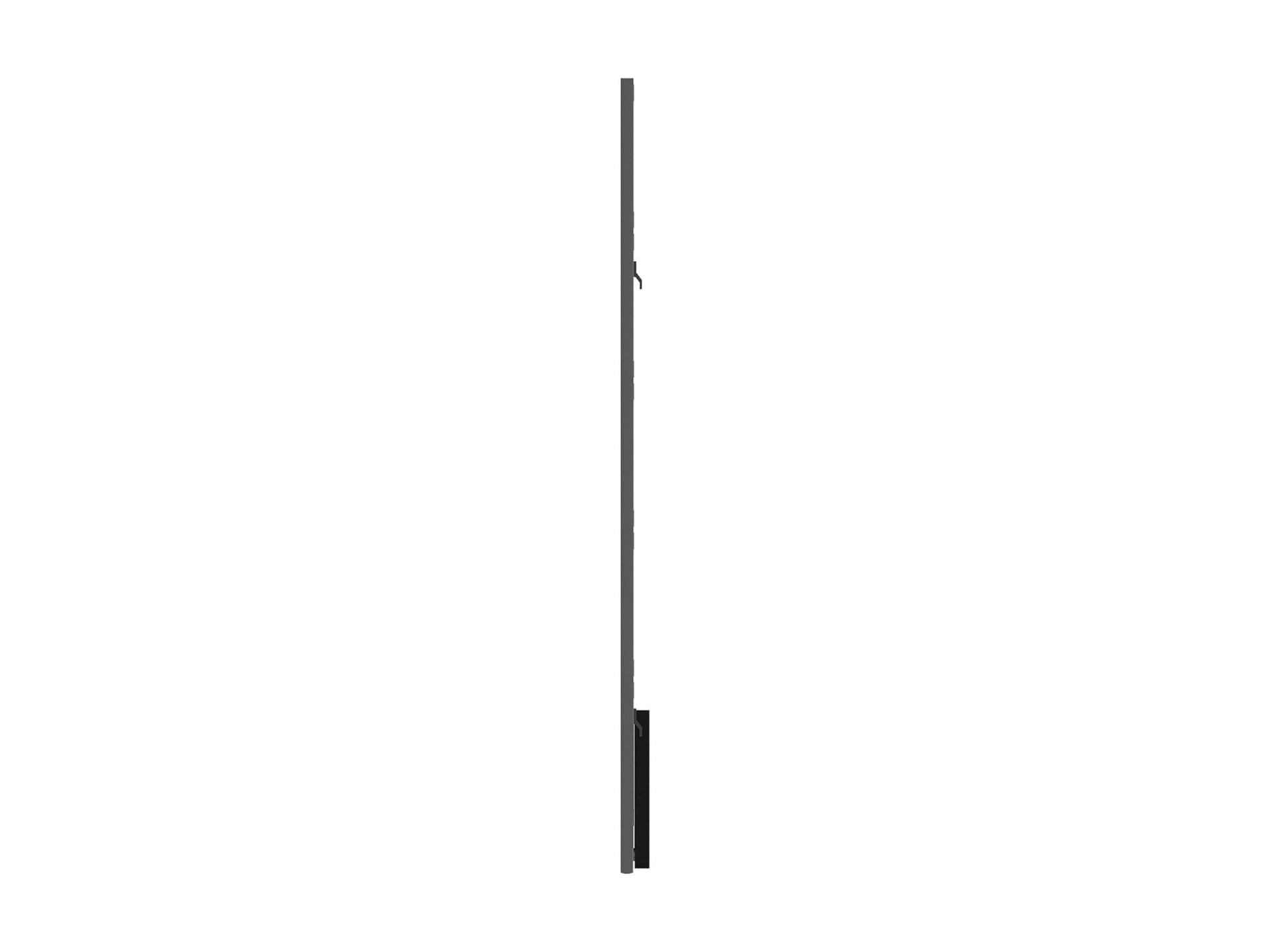

Experience immersive, professional-grade visuals with the LD-1651F, a 165-inch all-in-one Direct View LED display from SHARP ELECTRONICS CORPORATION. Designed for corporate, educational, and digital signage environments, it combines sharp Full HD imagery with integrated content management and robust connectivity in a single, reliable package.
-
Screen Size: 165 inches
-
Resolution: 1920 × 1080 (Full HD)
-
Pixel Pitch: 1.9 mm for crisp detail across the large canvas
-
Operating System: Android 13 embedded in the System-on-Chip
-
Inputs: HDMI × 3; USB-C In (5V/3A with DP Alt Mode)
-
Connectivity & Control: USB Hub with USB-A 3.0 and USB-C ports; RS232C and LAN (Sharp and NEC protocols)
-
Audio: Integrated 18W × 2 speakers; Mini-Jack Out; Optical Out
-
Media & Scheduling: Integrated schedulable media player for automated content playback
-
Build & Reliability: Durable, all-in-one design tailored for demanding environments
The LD-1651F is purpose-built to minimize setup complexity while maximizing impact. With Android 13 on board, you can run familiar apps directly on the display, manage content through the schedulable media player, and control the unit remotely for seamless installations in conference rooms, classrooms, and digital signage hubs. Flexible inputs and integrated audio ensure you can connect cameras, PCs, media players, and sound systems without extra hardware, reducing total cost of ownership and maintenance.
Specifications
-
Screen Size: 165 inches
-
Resolution: 1920 × 1080 (Full HD)
-
Pixel Pitch: 1.9 mm
-
Operating System: Android 13 (Embedded System-on-Chip)
-
Inputs: HDMI × 3; USB-C In (5V/3A with DP Alt Mode)
-
Control: RS232C; LAN (Sharp and NEC protocols)
-
Audio: 18W × 2 speakers; Mini-Jack Out; Optical Out
-
Media: Integrated schedulable media player
FAQ
-
What operating system does the LD-1651F use? It runs on Android 13 embedded in the System-on-Chip, providing app compatibility and smooth performance.
-
How many HDMI inputs are available? There are three HDMI inputs for connecting multiple devices and sources.
-
Can the device be controlled remotely? Yes. It supports RS232C and LAN with compatibility for Sharp and NEC protocols, enabling centralized management.
-
Does it have built-in speakers? Yes. The LD-1651F includes dual 18W speakers with options for Mini-Jack Out and Optical Out.
-
Is a media player included? Yes. The display includes an integrated schedulable media player to manage playback and content scheduling.
