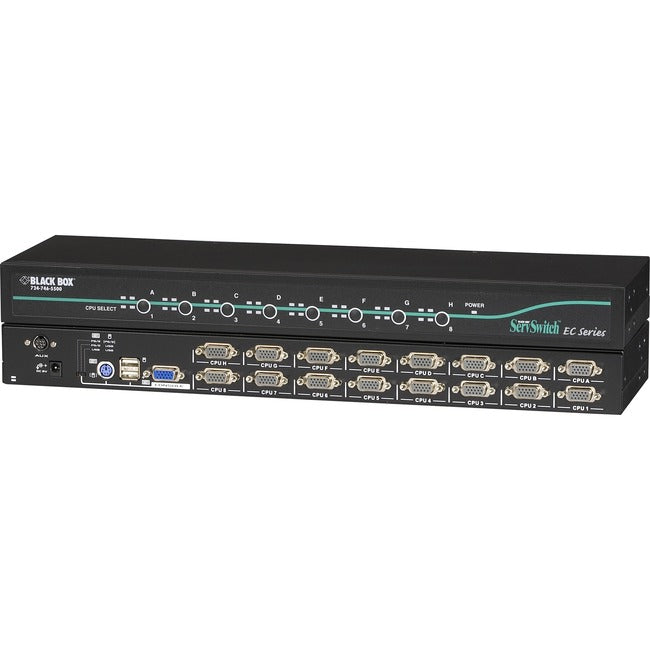

Black Box EC Series KVM Switch for PS/2 or USB Servers and PS/2 or USB Consoles - 16-Port
- Cascade up to 136 servers!
- Save rack space-only 1U high!
- Supports Microsoft® IntelliMouse® (Pro).
- Operating system independent and transparent to all applications.
- Switch manually or use autoscan, which selects servers sequentially.
- Assign unique names to servers.
- Save and store keyboard settings while switching.
- Hot-pluggable keyboard/mouse ports.
- Password protected.
- Plug-and-play configuration.
- DDC2B compatible.
Want the option of using either a PS/2 or USB console (keyboard, mouse, and monitor) to control a number of PS/2 and/or USB servers? The ServSwitch™ EC KVM Switch series makes it possible.
Expand your system
With the ServSwitch EC KVM Switch for PS/2 and USB Servers and PS/2 or USB Consoles, 16-Port, switch between 16 servers from a single console. To expand your switching platform to include additional servers, simply cascade units in a master-slave configuration. Cascade up to 136 servers with the 16-port model. The ServSwitch EC is plug-and-play, so you can add or subtract servers almost as quickly as you can plug and unplug cables.
Four- and 8-port models are also available, as are other models for PS/2 and/or USB switching; see Related Items.
Tight quarters
Ideal for applications where you have a limited amount of space, the 1U-high ServSwitch EC KVM Switch can be used on the desktop or mounted in a rack or cabinet. Brackets are included. To save more space, the keyboard, monitor, and mouse circuitry is concentrated in a single HD15 connector at the server end. This way, you have fewer cables to install when making server connections.
Very switchable
A simple yet well-designed on-screen display makes these switches very easy to use for managing server connections. You can assign 14-character server names that make sense to you. Switch between servers using front-panel buttons or hotkeys. Or you can let the switch do it automatically with its autoscan function. The ServSwitch EC KVM Switch will scan and switch between servers, one by one, at an interval that you determine. When autoscan detects any keyboard or mouse activity, it suspends the scanning until activity stops, and then resumes with the next computer in sequence.
Set it and forget it
System settings and name entries are stored in nonvolatile memory so you don't have to worry about a power outage wiping out your information. The ServSwitch EC also saves your keyboard settings for each server and restores them when you come back to that machine.
Check it
The front panel includes port LEDs, which light with the corresponding active port when you switch between servers. You can also use the on-screen display to view the connection status on each port and lock servers from unauthorized users.
Digital quality
With video enhancement technology that ensures superb quality and resolutions up to 1920 x 1440, the ServSwitch EC KVM Switch is DDC2B compatible, so it can be used with the latest digital monitors. What's more, the switch is operating-system independent and transparent to all applications.
- Support for VGA resolutions up to 1920x1440
- The User Port can support VGA Video and USB or PS/2 Keyboards and Mice
- 1 User can easily access up to 16 computers that support VGA Video with USB or PS/2 Keyboard and mouse
Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: Taiwan
Product Series: EC
Rack Height: 1U
Brand Name: Black Box
Form Factor: Rack-mountable
Manufacturer: Black Box Corporation
Product Name: EC Series KVM Switch for PS/2 or USB Servers and PS/2 or USB Consoles - 16-Port
Product Line: ServSwitch
Manufacturer Part Number: KV9216A
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
Weight (Approximate): 5.70 lb
