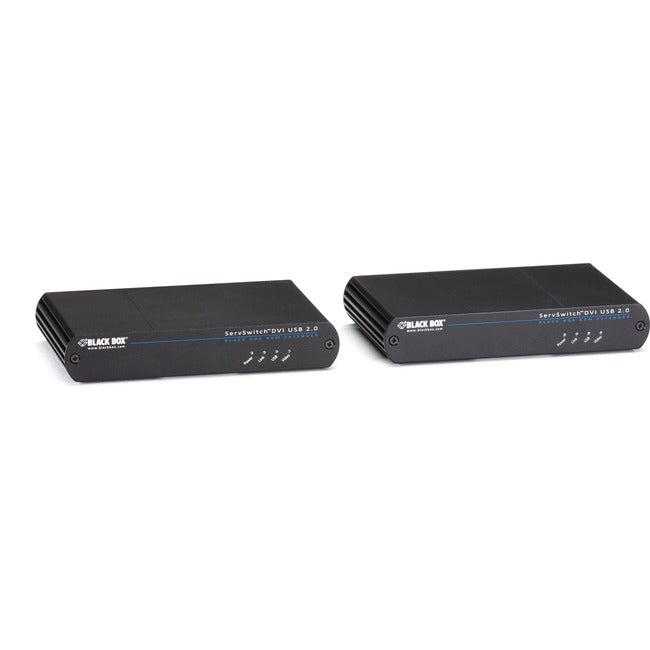

Black Box KVM Extender - DVI-D, USB 2.0, Single-Access, CATx
- No compression, no delay of video data.
- Easy setup, no adjustments.
- Supports all major operating systems.
- Uses a single, solid core CAT5 (or better) cable for desktop extension, simplifying installation. Solid-core CAT6 is recommended for best performance.
- A computer can be located remotely from a desktop area, freeing up space and providing security.
- Servers, computers, software, and any other sensitive hardware can be kept in a secure location where maintenance can be performed easily.
- Supports USB 2.0 devices, as well as USB audio devices.
- Supports HDCP pass-through.
- Mass-Strorage Acceleration Technology.
Place a computer up to 330 feet (100 m) from the workstation area, connected with a single inexpensive CATx cable. Supports Full HD video and USB 2.0, including control of the keyboard, mouse, Web cameras, Flash drive, speakers, microphone, and other USB 1.1 and USB 2.0 devices.
The ideal high-resolution KVM extenderThe ServSwitch™ DVI-D with USB 2.0 KVM Extender preserves the quality of the DVI video signal and offers real-time transmission without the delays and compression that degrades the high-resolution viewing experience.
USB HID supportThe extender supports of a variety of HIDs. Keyboards and mice are the most common HIDs, but other devices based on HID protocol, including some touch screens, will work as well.
DDC read channelThe DDC read capability enables true EDID information to be received from the attached display. This guarantees optimum plug-and-play support.
- Up to 328-ft. over CATx
- True EDID read mode.
- USB 2.0 @ 40Mbps
- CATx connections
- DVI-D Video Resolution 1920 x 1200 at 24-bit color depth.
Product Type: KVM Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 4.40"
Transmitter Width: 6.90"
Transmitter Depth: 1.20"
Receiver Height: 4.40"
Receiver Width: 6.90"
Receiver Depth: 1.20"
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: KVM Extender - DVI-D, USB 2.0, Single-Access, CATx
Manufacturer Part Number: ACU1500A-R3
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
