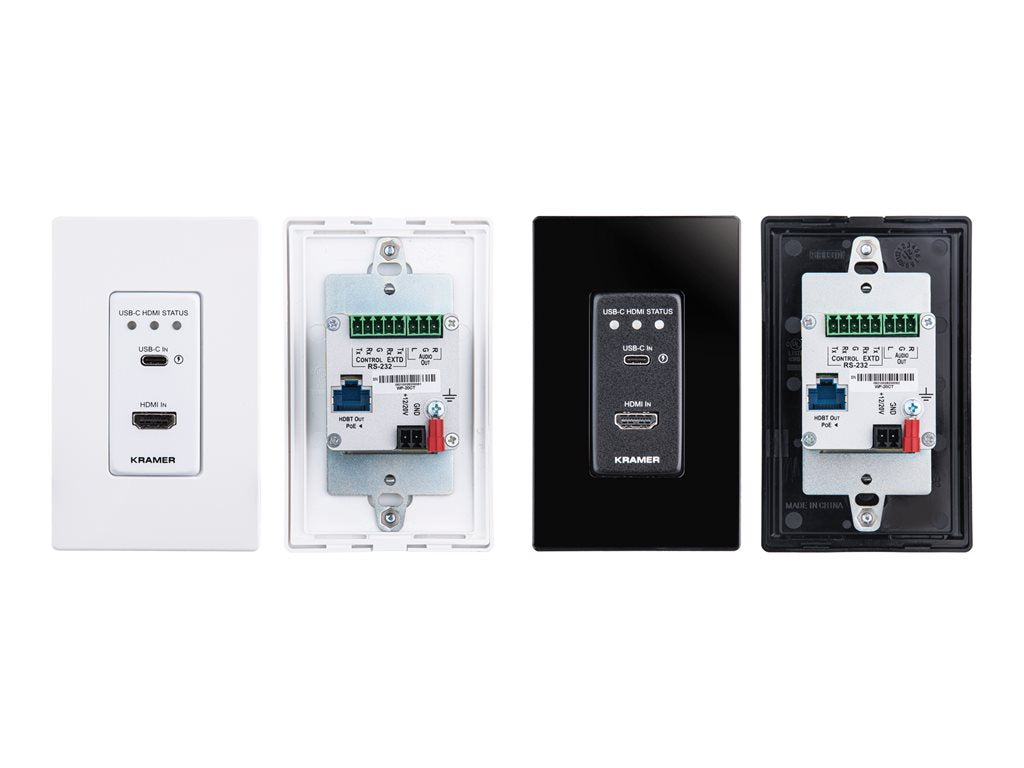

Kramer WP-20CT - Wall plate panel set - D size - HDMI, USB Type C - black, white - 1-gang
-
High-performance switcher transmitter
Professional HDBaseT switcher transmitter for providing long-reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market-available HDBaseT-compliant extension product.
-
BYOD ease and convenience
Connect any DP-Alt-Mode-capable USB-C device as an AV presentation source, while providing the connected device, if PD-2.0-capable, with up to 60 watts of power (with the use of an optional 20V power supply).
-
Plug-and-Play auto switcher
Automatically plays the switched user device source signal on the connected display according to user-configured preferences, such as priority or last-connected input. When the user manually switches, by pressing a button, the auto switching is overridden.
-
HDMI signal switching
HDCP 2.3 compliant, supporting deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.
-
Multichannel audio switching
Up to 8 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
-
Audio de-embedding
The digital audio signal passing-through to the output, is de-embedded, converted to an analog signal and sent to the stereo analog audio output. This enables playing the audio on locally connected speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).
-
Reliable PoE (Power over Ethernet) powering
Auto-senses the HDBaseT extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
-
Cost-effective maintenance and management
Status LED indicators for Power, HDMI, and HDBT ports facilitate easy local maintenance and troubleshooting. Local device management using built-in web interface via the USB-C connection. Local firmware upgrade via USB-C and RS-232 connection tool ensure lasting, field-proven deployment.
-
Easy installation
Compactly fits into standard US, EU and UK 1-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoC) connections.
WP 20CT is an intelligent 2x1 automatic wall-plate switcher transmitter over long-reach HDBaseT for 4K USB-C and HDMI video signals. WP 20CT offers an intelligent switching experience with built-in Maestro room control and the standard priority / last-connected switching function based on active video signal detection.
- High-performance switcher transmitter
- BYOD ease and convenience
- Plug-and-Play auto switcher
- HDMI signal switching
- Multichannel audio switching
- Audio de-embedding
- Reliable PoE (Power over Ethernet) powering
- Cost-effective maintenance and management
- Easy installation
