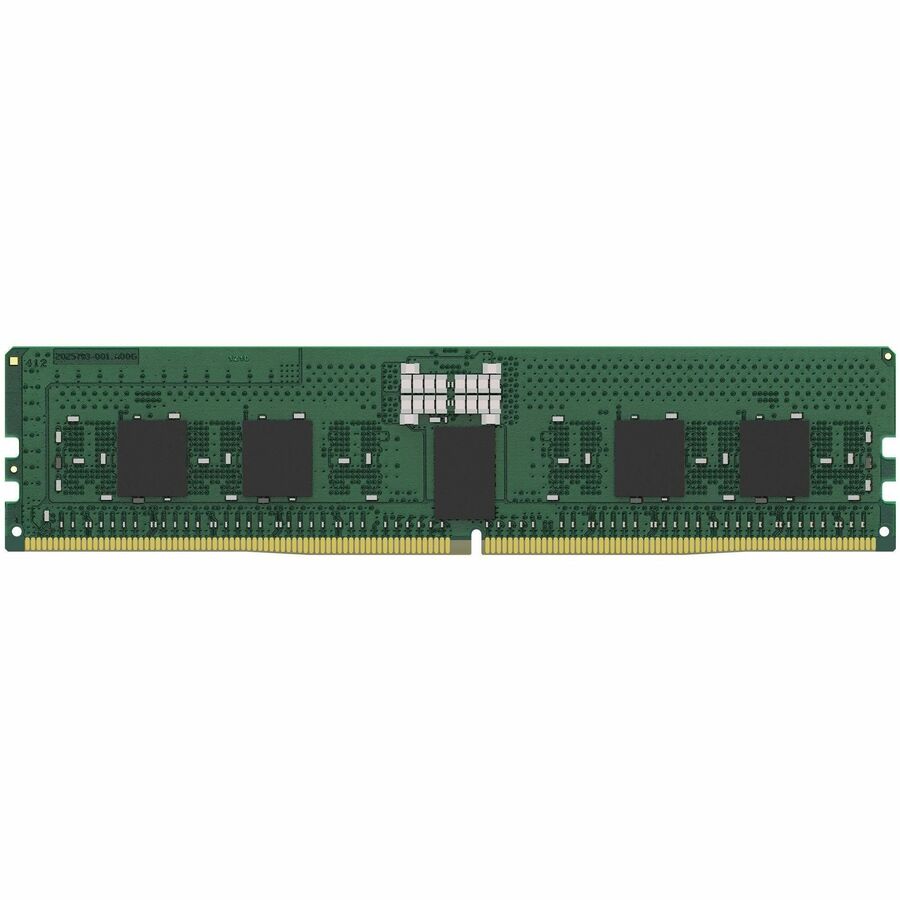

Kingston 32GB DDR5 5600MT/s ECC Registered DIMM - For Server, Motherboard - 32 GB - DDR5-5600/PC5-44800 DDR5 SDRAM - 5600 MHz Single-rank Memory - CL46 - 1.10 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty
Kingston's KSM56R46BS4PMI-32MDI is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx4, ECC, memory module, based on twenty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
- ASRock - Server 1U12E-EGS/2L2Q
- ASRock - Server 1U12E-EGS2
- ASRock - Server 1U4L4E-EGS/2T
- ASRock - Server 1U4L-EGS/2T
- ASRock - Server 1U8S4E-EGS/2T
- ASRock - Server 2U24E-EGS2
- ASRock - Server 2U4G8E-EGS2
- ASRock - Server 4U10G-EGS2
- ASRock - Server 4U36L6E-EGS/2T
- ASRock - Server 4U8G-EGS2
- ASRock - Server Board SP2C741D16-2T
- ASRock - Server Board SP2C741D16HM3
- ASRock - Server Board SP2C741D16NQM3-2Q
- ASRock - Server Board SP2C741D16X-2T
- ASRock - Server Board SP2C741D32G-2L+
- ASRock - Server Board SP2C741D32TM3
- ASRock - Server Board SPC741D16QM3-2L2Q
- ASRock - Server Board SPC741D8-2L2T/BCM
- ASRock - Server Board SPC741D8HM3
- ASRock - Server Board SPC741D8QM3-2T
- ASRock - Server Board SPC741D8QM3-2T/X550
- ASRock - Server Board SPC741D8UD-2T/X550
- ASRock - TRX50 WS Motherboard
- ASRock - W79
