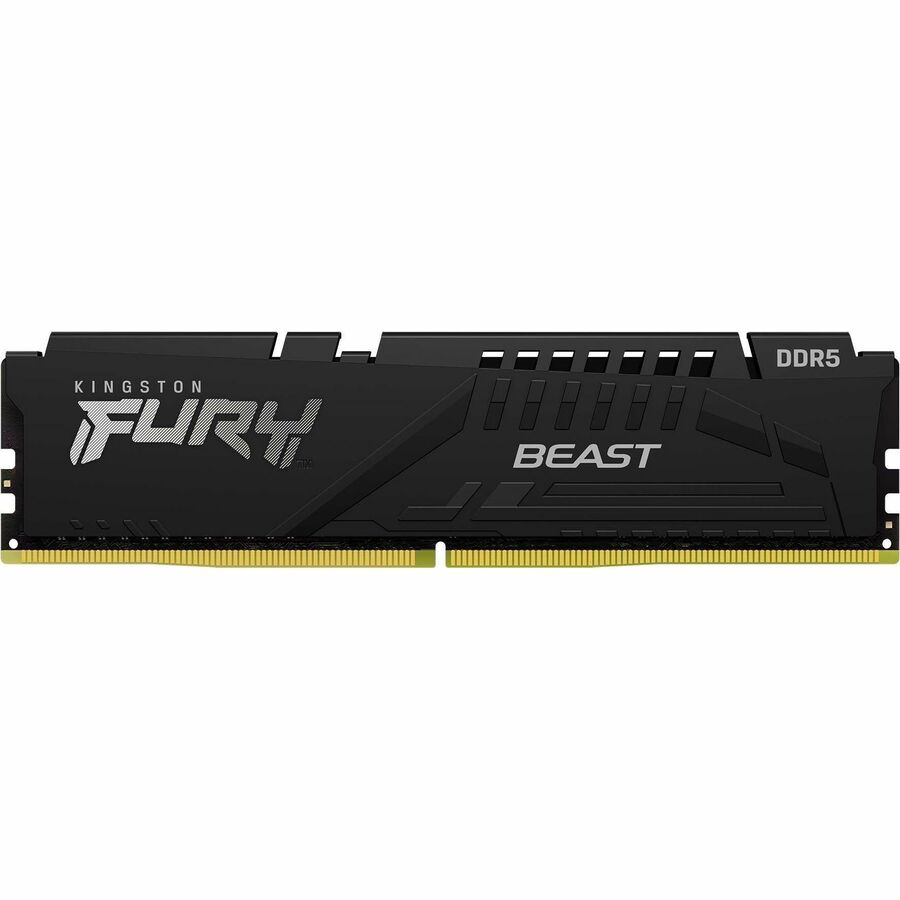

Kingston 32GB (2x16GB) DDR5 6800MT/s CL34 FURY Beast Black RGB EXPO - 32 GB (2 x 16GB) - RGB - DDR5-6800/PC5-54400 DDR5 SDRAM - 6800 MHz Single-rank Memory - CL34 - 1.40 V - Non-ECC - Unbuffered - 288-pin - DIMM
Kingston FURY KF568C34BBEAK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6800 CL34 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6800 at a low latency timing of 34-45-45 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6800 CL34-45-45 @1.4V
- EXPO Profile #1: DDR5-6400 CL32-39-39 @1.4V
- XMP Profile #1: DDR5-6800 CL34-45-45 @1.4V
- XMP Profile #2: DDR5-6400 CL32-39-39 @1.4V
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1
