Name: Kasda Kw52283 Vdsl2 Wireless Modem Router W/ 2X Internal 3Dbi Antennas
Brand: Kasda
SKU: KW52283
Price: 112.00 CAD
Availability: InStock

Kasda Kw52283 Vdsl2 Wireless Modem Router W/ 2X Internal 3Dbi Antennas

Roll over image to zoom in Click on image to zoom

✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.

Mfr Part Number: KW52283
Features:
- All- in-one - ADSL2+/VDSL2 modem, 4-port Ethernet router, wireless N access point in one device
- VDSL fall back - Falling back to ADSL2/2+ automatically
- High Speed - Downstream rates up to 100Mbps and upstream rates up to 50Mbps
- 2.4G 300Mbps Wi-Fi - Two internal antennas to deliver the best wireless signal, connect everything in your home and office in one device
- 1-Gigabit Ethernet Port - Gigabit Ethernet port for WAN(Dual WAN) or LAN to allow 10 x higher speed
- 4-Fast Ethernet Port - Extend the LAN to more devices and further distances
- Multi-function USB2.0 Port - Printers, files and media can be shared with computer or using the device's FTP server
- Operating distance - 7KM in ADSL mode; 1KM in VDSL mode
- Rate Adaptive - 32 Kbps steps
- Compatibility - Interoperable with all major DSLAM equipments
- QOS - Quality of Service control for traffic prioritization and bandwidth management
- Simple set up with GUI - GUI makes installation easier and faster
Basics:
- IEEE Standards: IEEE 802.3, 802.3u, 802.3ab
- VDSL/VDSL2 Standards:
  - ITU-T G.993.1(VDSL)
  - ITU-T G.993.2(VDSL2) (Profile 8a, 8b, 8c, 8d, 12a,12b,17a)
- ADSL Standards:
  - Full-rate ANSI T1.413 issue 2
  - ITU-T G.992.1 (G.dmt), supporting Annex A or B
  - ITU-T G.994.1 (G.hs)
  - ITU -TG.992.2 (G.lite), supporting Annex A or B
- ADSL2 Standards:
  - ITU-T G.992.3 (G. dmt.bis), supporting Annex A or B, Annex L and Annex M
  - ITU-T G.992.4 (G.lite.bis), supporting Annex A or B
- ADSL2+ Standards: ITU-T G.992.5, supporting Annex A or B, Annex L and Annex M
- Speed: Downstream - up to 100Mbps; Upstream - up to 50Mbps
- Operation Modes: VDSL/ADSL Modem, Wireless Router, 5 Ports Switch
- WAN Connection Types: PPPoE, PPPoA, IPoE, Bridge, IPoA
- DSL Features:
  - PTM and ATM mode including dual latency
  - Both Annex A and Annex B including dual latency
  - US0
  - Diagnostics mode/DELT
  - Bitswaps, SRA and SOS/ROC, Virtual Noise
  - FEXT equalized UPBO
  - Dying gasp
  - INM
  - PhyR and G.INP (framing type 1)
  - G.vector
Wireless:
- Wireless Standards: IEEE 802.11b/g/n
- Wireless Speed: 11n speed up to 300Mbps
- WIFI Frequency Range: 2.4Ghz-2.4835Ghz
- Transmit Power: <20dBm(EIRP)
- Wireless Security: 64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES
- Wireless Features:
  - Multi-SSID
  - Access Control List
  - WDS and WMM
  - Wireless operating range - Indoor up to 100m, Outdoor up to 300m
Software:
- Function Features:
  - Static Route, Dynamic RIPv1, RIPv2 support
  - DMZ support
  - NAT Application Level Gateway for popular applications
  - DHCP Server/Relay/Client
  - DNS Relay Agent/DDNS Support
  - PPP Auto, Reconnect on WAN Access/PPP
  - IGMP Snooping v1/2 and IGMP Multicast
  - IPv4 and IPv6 dual stack
- Security Support:
  - 64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES
  - Parental control
  - PAP/CHAP for PPP mode
  - NAT for Firewall
  - SPI Firewall
  - 3 Level (Support/User/Admin) Authentication to Router
  - IP and MAC Filtering
- Management Support:
  - Web Based GUI
  - FTP /HTTP /Telnet /TR069 /SNMP v1/2c
  - Command Line Interface
  - Diagnostic Test
  - Firmware upgrade-able
  - Supports Remote Access Control
- ATM, PTM and PPP Features:
  - RFC2684 /2364 /2516 /2225 /1577 /148 /1483 /2684
  - ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5
  - VPI Range (0-255) and VCI range (32-65535)
  - UBR, CBR, VBR-rt, VBR-nrt
  - F4/F5 OAM Loopback
  - AIS and RDI OAM cells
  - Supports 16 PVCs
- VPN: IPSec client /PPTP /L2TP pass through
- Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
- Dynamic DNS: DynDns, TZO, NO-IP (optional)
- DHCP: Server, Client, DHCP Client List; Address Reservation, DHCP Relay
- QOS: Priority Queuing; Classification Rules; 802.1p
Hardware:

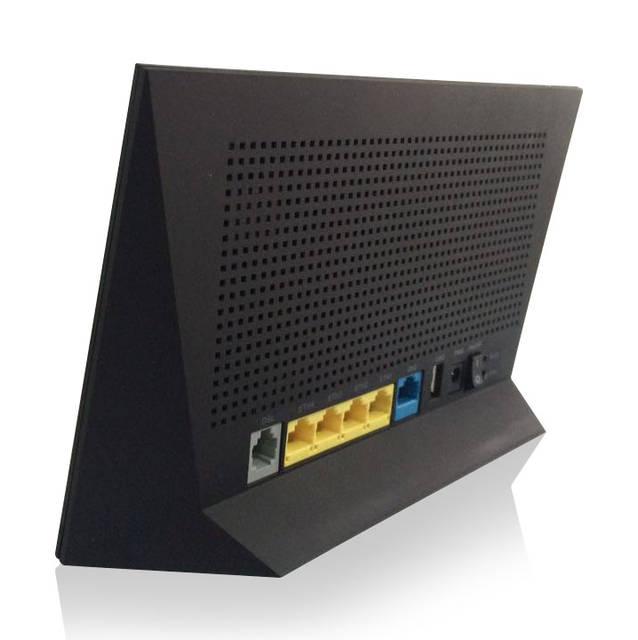

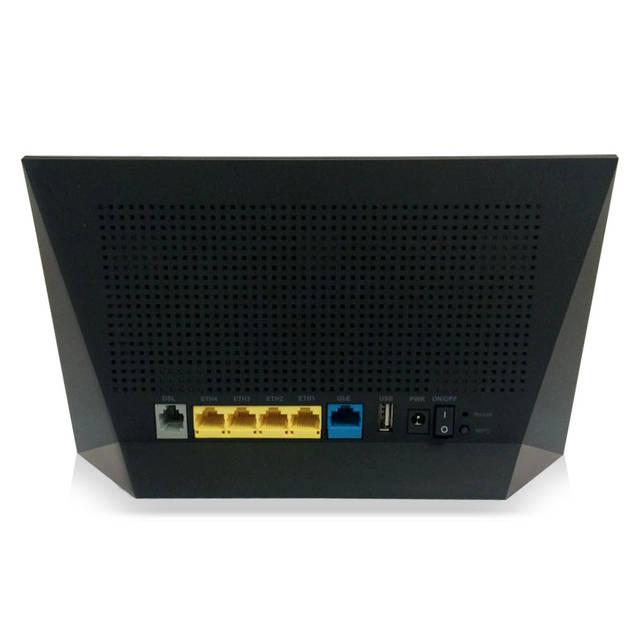

- Physical Interface: 4x 10/100 RJ45 Ports for LAN; 1x 10/100/1000Mbps Port for WAN or LAN; 1x DSL RJ11 port; 1x USB 2.0 Port
- Buttons: 1x Power ON/OFF Button; 1x WPS Button; 1x Reset Button
- Power: Input - 100-240V AC,50Hz; Output - 12V/1A
- LED Indicators:Power, GbE, LAN1/2/3/4, WLAN, DSL, INET, WPS
- USB sharing: Samba(Storage)/FTP Server/Media Server/Printer Server
- Antenna: Two internal antennas, MIMO 3dBi (default)
- Processor: BCM63168+BCM50612E+BCM6303
- Memory: 128MB flash and 64MB RAM
Other:
- Operation System: Windows 10/8/7/vista/XP, Mac OS, Android, iOS
- Environment:
  - Operating Temperature: 0C~40C (32~104F)
  - Storage Temperature: -30C~60C (-22~140F)
  - Operating Humidity: 10%~95% non-condensing
  - Storage Humidity: 5%~90% non-condensing
- Dimension: 11.22 x 7.26 x 1.97 inch / 285.0 x 184.5 x 50.0 mm
- Weight: 1.65 lbs / 750.0 g
- Package Contents:
  - Power Adapter
  - Installation Manual
  - RJ11 Cable
  - RJ45 Cable
  - External Splitter
