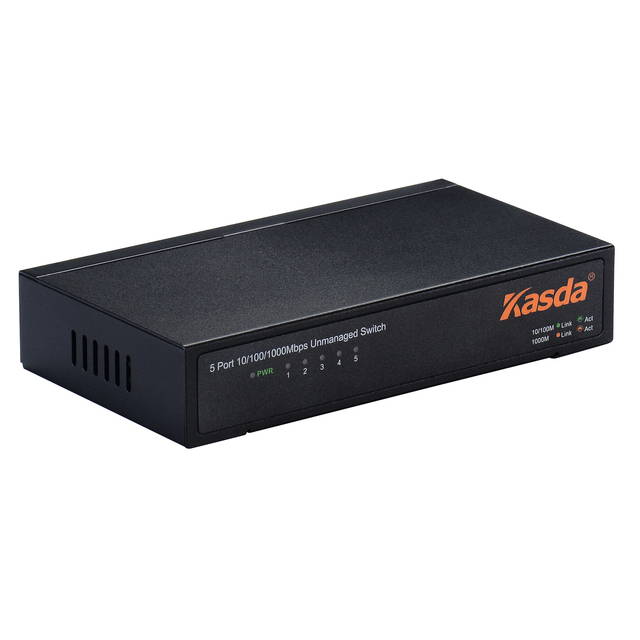

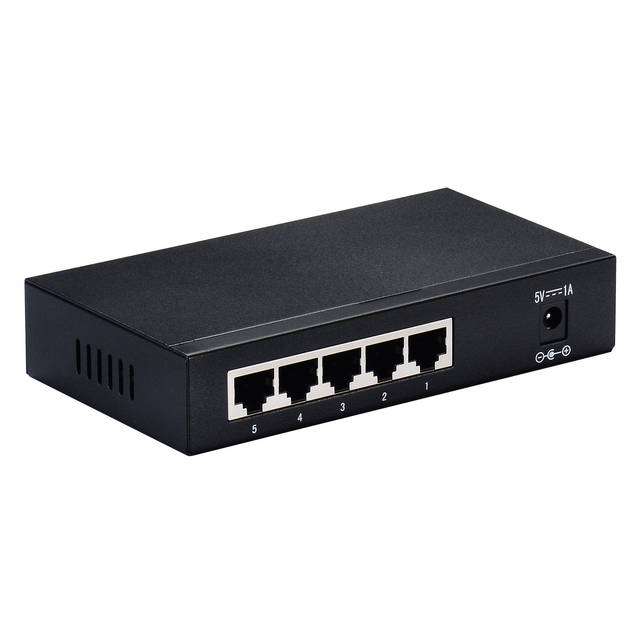

Mfr Part Number: KS1005
-
Features:
- Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3az, IEEE802.3ab standards
- 5-10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Supports IEEE802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode
- Store and forward mode operates
- Supports MAC address auto-learning and auto-aging
- Supports IEEE802.3az Protocol
- LED indicators for monitoring power, link/activity
- Metal case
- External power adapter supply
-
Chipset: RTL8367N
-
Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3az, IEEE802.3ab
-
Network Media (Cable):
-
10BASE-T: UTP category 3,4,5 cable (maximum 100m)
-
100BASE-T: UTP category 5, 5e cable (maximum 100m)
-
1000BASE-T: UTP category 5e, 6 cable (maximum 100m)
-
Number of Ports: 5x 10/100/1000Mbps Auto-Negotiation ports
-
LED indicators:
-
Link/Act\Speed:
-
10M/100M: Green
-
1000M: Amber
-
Power: Green
-
Transfer Method: Store-and-Forward
-
Switching Capacity: 10Gbps
-
MAC capacity: 2K
-
Frame Filtering and Forward Rate:
-
10Mbps: 14880pps
-
100Mbps: 148800pps
-
1000Mbps: 1488000pps
-
Environment:
-
Operating Temperature: 0C - 40C
-
Storage Temperature: -40C - 70C
-
Operating Humidity: 10%~90% non-condensing
-
Storage humidity: 5%~90% non-condensing
-
Power Supply/Consumption:
-
Input: DC 5V /550mA(adapter)
-
Consumption: 1.6W
-
Dimensions(WxLxH): 78.0 x 140.0 x 28.0 mm
