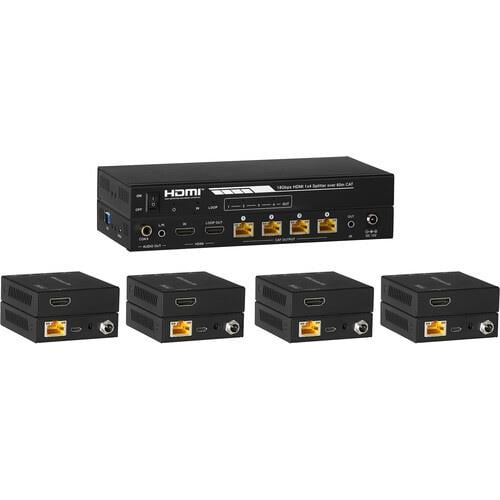

KanexPro SP-HDPOC1X4 HDMI 1x4 Distribution Amplifier
The KanexPro HDMI 1x4 distribution amplifier is engineered for professional AV installations requiring reliable 4K signal distribution across multiple displays. This 18Gbps HDMI splitter distributes a single HDMI source to four display devices via cost-effective CAT5e/6 cabling, eliminating expensive HDMI cable runs. Perfect for conference rooms, digital signage networks, broadcast facilities, and corporate training environments where extended cable runs and multi-display setups demand professional-grade performance.
With support for 4K2K@60Hz 4:4:4 color depth and transmission distances up to 60 meters at 1080p60 over CAT6 cable, this distribution amplifier delivers cinema-quality video without signal degradation. The integrated HDMI loop output enables daisy-chaining while four independent CAT outputs provide flexible display placement.
Key Features
- 18Gbps HDMI 1x4 splitter with one HDMI loop output and four CAT outputs
- 4K2K@50/60Hz 4:4:4 color support for professional video production
- Extended transmission: 60M at 1080p60, 50M at 4K30, 35M at 4K60 over CAT6/6a/7
- CAT5e/6 compatible cabling reduces installation costs versus traditional HDMI runs
- Professional-grade HDMI distribution amplifier for multi-display environments
- Loop output enables source monitoring and daisy-chain capability
- Compact form factor suitable for rack mounting and AV integration
Technical Specifications
| Specification |
Details |
| Manufacturer |
KANEXPRO |
| Part Number |
SP-HDPOC1X4 |
| Product Type |
HDMI 1x4 Distribution Amplifier |
| HDMI Bandwidth |
18Gbps |
| Video Resolution Support |
4K2K@50/60Hz 4:4:4, Full HD 1080p60 |
| HDMI Outputs |
1x Loop Output |
| CAT Outputs |
4x CAT5e/6/6a/7 |
| Max Transmission Distance (4K60) |
35 meters over CAT6 |
| Max Transmission Distance (4K30) |
50 meters over CAT6 |
| Max Transmission Distance (1080p60) |
60 meters over CAT6 |
| Cable Type |
CAT5e, CAT6, CAT6a, CAT7 |
Frequently Asked Questions
What is an HDMI distribution amplifier and how does it work?
An HDMI distribution amplifier like the KanexPro SP-HDPOC1X4 takes a single HDMI source signal and amplifies it to multiple display outputs simultaneously. This splitter ensures each connected display receives a clean, full-strength signal without degradation, making it ideal for conference rooms, digital signage, and broadcast applications requiring synchronized multi-display output.
Can I extend HDMI signal over CAT5e/6 cable with this 1x4 splitter?
Yes. The KanexPro HDMI 1x4 distribution amplifier converts HDMI signals for transmission over standard CAT5e/6 cabling, extending signal up to 60 meters at 1080p60 or 35 meters at 4K60. This approach reduces cabling costs compared to running multiple long HDMI cables and simplifies installation in buildings with existing structured cabling infrastructure.
Does this 4K HDMI splitter support 4K60 resolution?
Yes. The SP-HDPOC1X4 supports 4K2K@60Hz 4:4:4 color depth at distances up to 35 meters over CAT6 cable. For longer runs, 4K30 is supported up to 50 meters, providing flexibility for various installation scenarios while maintaining professional video quality.
What is the HDMI loop output used for?
The integrated HDMI loop output allows you to monitor the source signal on a local display while simultaneously distributing the signal to four remote displays via CAT outputs. This feature enables source verification and supports daisy-chaining configurations in complex AV installations.
