SIIG ipcolor 4K HDMI 2.0 Extender Daisy Chain Transceiver - 230ft
Extends 4K@60Hz HDMI signals up to 230ft with zero latency, IR, HDR, audio extraction, and ARC using industry leading ipcolor video transmission technology; receives HDMI signals from ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit, part number CE-H26M11-S1, sold separately, supports daisy chain connection for additional extension and displays
-
4K HDMI Extension - Extends UHD 4K@60Hz HDMI signals up to 230ft/70m from a source device to an HDMI display via Cat6/6a/7 cable -
Advanced ipcolor Transmission Technology - ipcolor is a global leading innovative technology for ultra high definition video digital transmission and connectivity, it can extend and transmit uncompressed 4K@60Hz YUV 4:4:4 video + audio, including HDR, with zero latency -

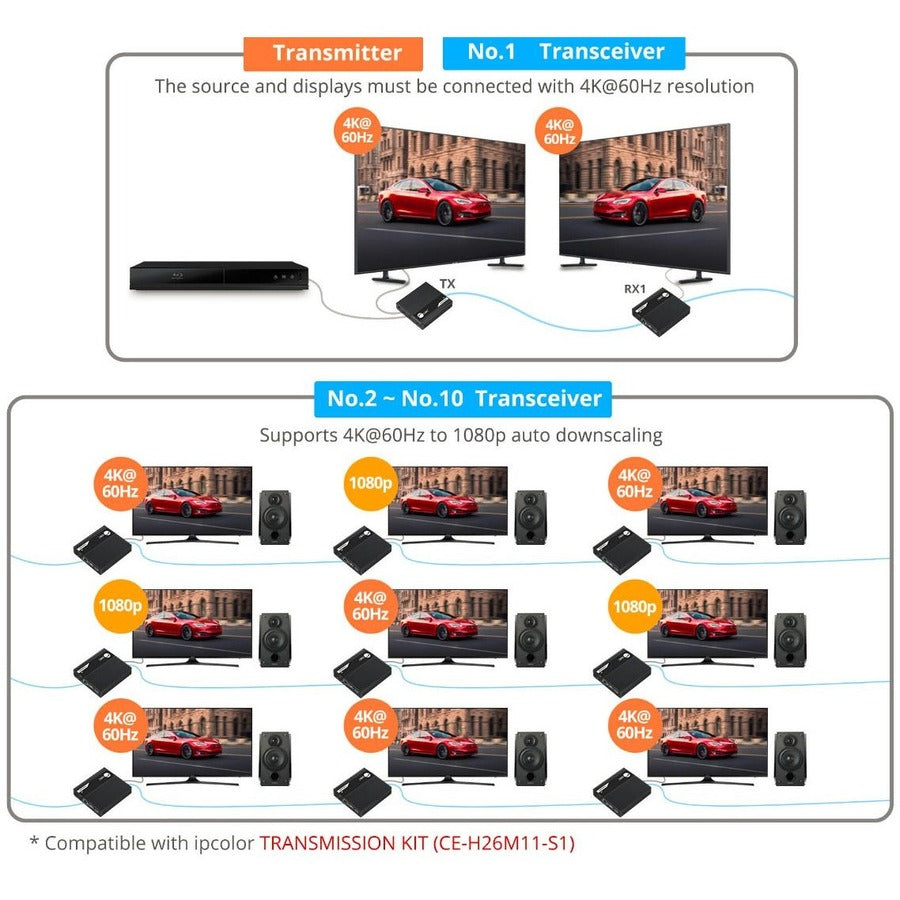

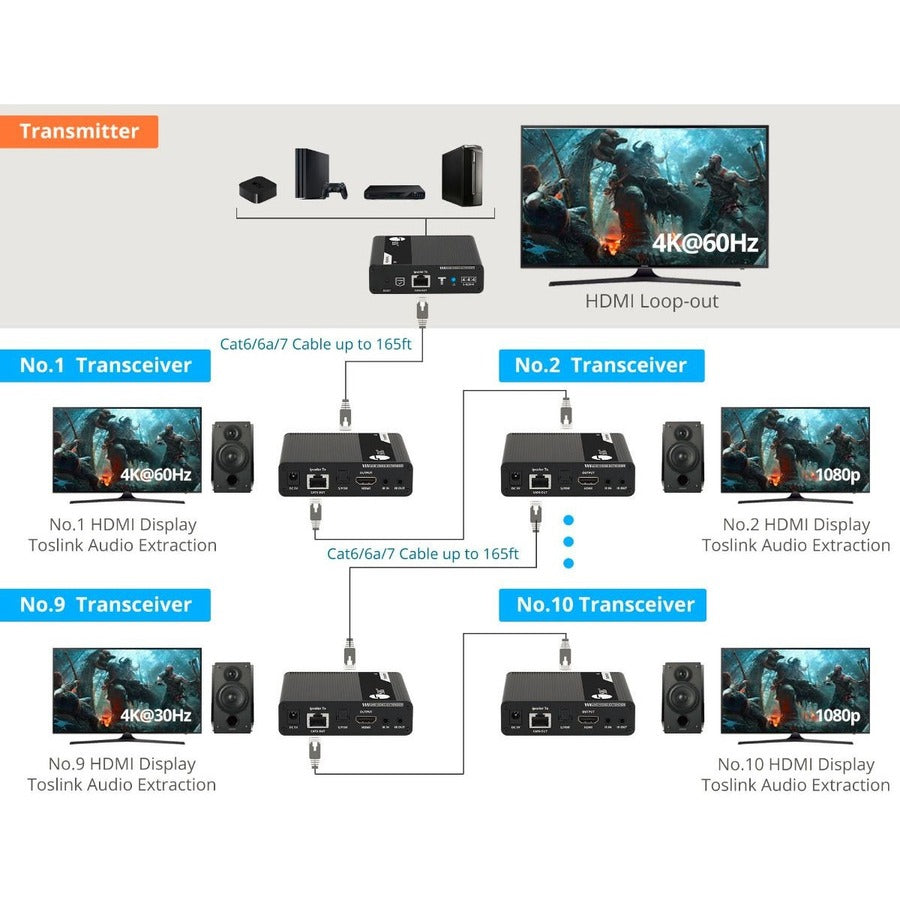

Daisy Chain Extension - Supports daisy chain connection of up to 10 transceivers to further extend HDMI signal up to 165ft to each transceiver -
Note: Requires ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit, part# CE-H26M11-S1, sold separately -

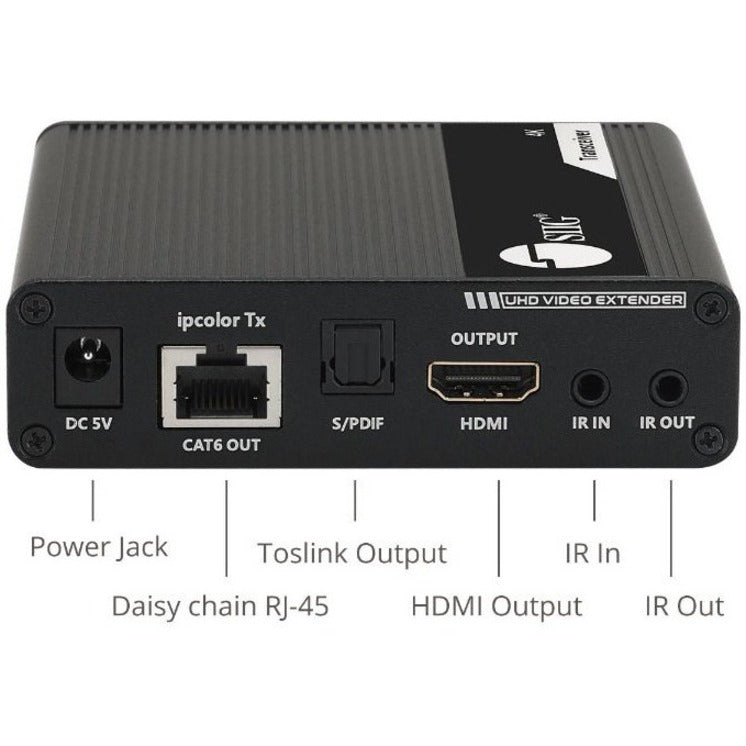

Audio Extraction - Extracts and routes digital audio from the HDMI signal through the transceiver's digital Toslink port, supports PCM, Dolby 5.1, DTS 5.1 audio output signal -

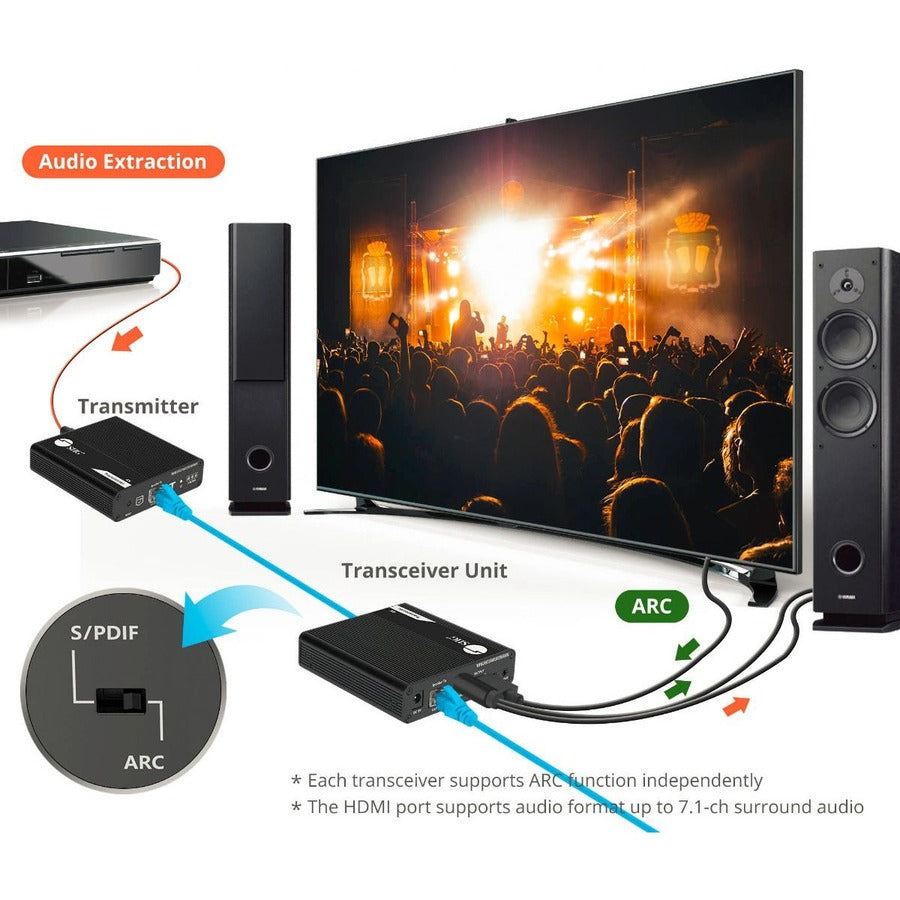

ARC - Connects through the Toslink optical port of the transceiver to the display's ARC sink -

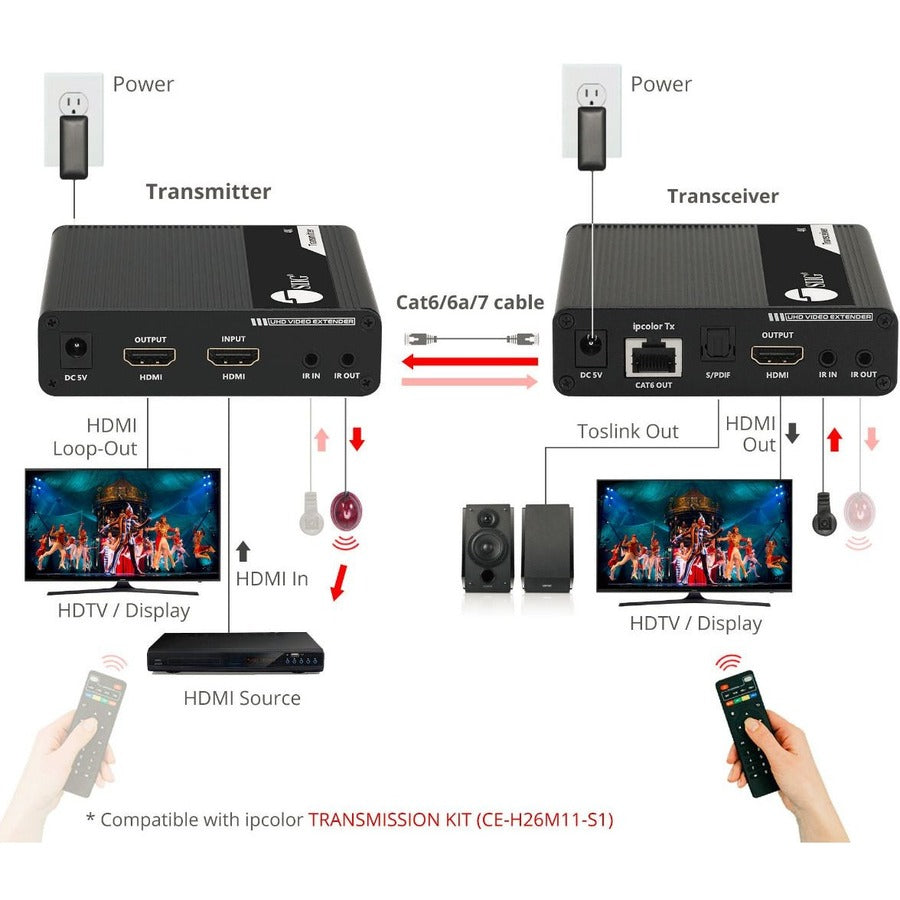

IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa, IR blaster and receiver cables included -
Auto EDID and Downscaling - The lowest EDID capability of the connected display(s) controls the resolution output to the display(s) -
Protection - Lightning Protection, Surge Protection, ESD protection -
High Quality Construction - High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operationEasy Installation - Plug and play installation, no driver installation required
Compatibility Notes:
- Does not work with routers and switches
- Requires ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit, part# CE-H26M11-S1, for daisy chain connection, sold separately
Product Type: Video Extender Transceiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: ipcolor 4K HDMI 2.0 Extender Daisy Chain Transceiver
Manufacturer Part Number: CE-H26N11-S1
Manufacturer Website Address: http://www.siig.com
Package Contents:
- ipcolor 4K HDMI 2.0 Extender Daisy Chain Transceiver
- 1 x Power Adapter
- 1 x IR Blaster Cable
- 1 x IR Receiver Cable
- 4 x Mounting Ears and installation hardware
- User Manual
Limited Warranty: 2 Year
