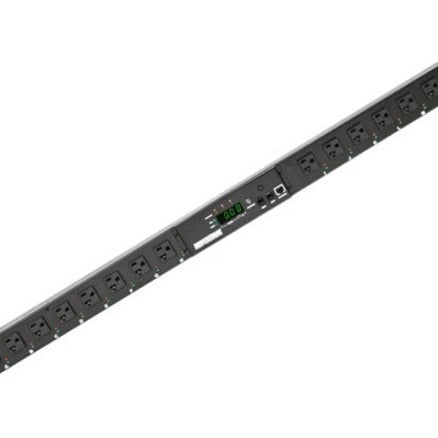

This smart power distribution unit is perfect for IT professionals and data center managers who need advanced power monitoring and control. Our Minuteman RPM158N1LCD delivers:
-
Real-time LCD display monitoring that tracks power consumption and status
-
Network management capabilities for remote monitoring and control
-
8-outlet power distribution with individual outlet switching
-
Rack-mountable 1U design for efficient server room installation
Key Features
-
LCD display interface for local power monitoring and configuration
-
Network management support via SNMP and web interface
- Individual outlet switching control for remote power cycling
-
Real-time power metering with voltage, current, and power readings
-
IEC C13 outlet configuration for standard server equipment
- Compact 1U rack-mount design maximizes rack space efficiency
-
Environmental monitoring with temperature and humidity sensors
- Compatible with network monitoring systems via SNMP protocol
Technical Specifications
| Manufacturer |
Minuteman UPS |
| Model Number |
RPM158N1LCD |
| Type |
Smart Power Distribution Unit |
| Outlet Configuration |
8 x IEC C13 outlets |
| Display |
LCD screen with power monitoring |
| Network Management |
SNMP, HTTP, Telnet protocols |
| Input Voltage |
120V AC, 50/60Hz |
| Maximum Current |
15A total load capacity |
| Form Factor |
1U rack-mountable design |
| Switching |
Individual outlet control |
| Monitoring |
Voltage, current, power, temperature, humidity |
| Compatible Systems |
Servers, network equipment, UPS systems |
Frequently Asked Questions
Q: What makes this a smart power distribution unit compared to basic PDUs?
A: The RPM158N1LCD features an LCD display interface and network management capabilities that allow real-time monitoring and remote control of individual outlets, making it ideal for advanced data center management.
Q: Can I monitor and control this PDU remotely over the network?
A: Yes, it supports SNMP protocol and web-based management for remote monitoring and control. You can view power consumption, switch outlets on/off, and receive alerts from anywhere on your network.
Q: How does the metered power distribution unit help with energy management?
A: The built-in metering provides real-time power consumption data including voltage, current, and wattage readings — perfect for capacity planning and energy efficiency optimization in server rooms.
Q: Is this compatible with standard rack mount configurations?
A: Yes. The 1U rack-mount design fits standard 19-inch racks and provides efficient power distribution while maximizing valuable rack space.
Smart power distribution unit with LCD display for data centers. Advanced network monitoring, individual outlet control and real-time metering capabilities.
