IOGEAR USB PS/2 Combo KVM Switch
The GCS1716 KVM is a combo switch allowing access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.
More from the Manufacturer
- Rack mountable in a 19" (1U) system rack
- Front USB Port - Fully compliant with USB 1.1 for system upgrades and shared peripherals
- Supports both USB and PS/2, VGA computers
- Maximum video resolution: up to 2048 x 1536
- Security - 2 level password protection for OSD
- Cascade up to 2 levels - control up to 256 computers from a single console
- Broadcast Mode to send commands to all connected computers
- Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display), and hotkeys
- Auto Scan Mode to monitor connected computers
- Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rack Height: 1U
Brand Name: IOGEAR
Form Factor: Rack-mountable
Manufacturer: IOGEAR, Inc
Product Name: USB PS/2 Combo KVM Switch
Manufacturer Part Number: GCS1716KIT
Manufacturer Website Address: http://www.iogear.com

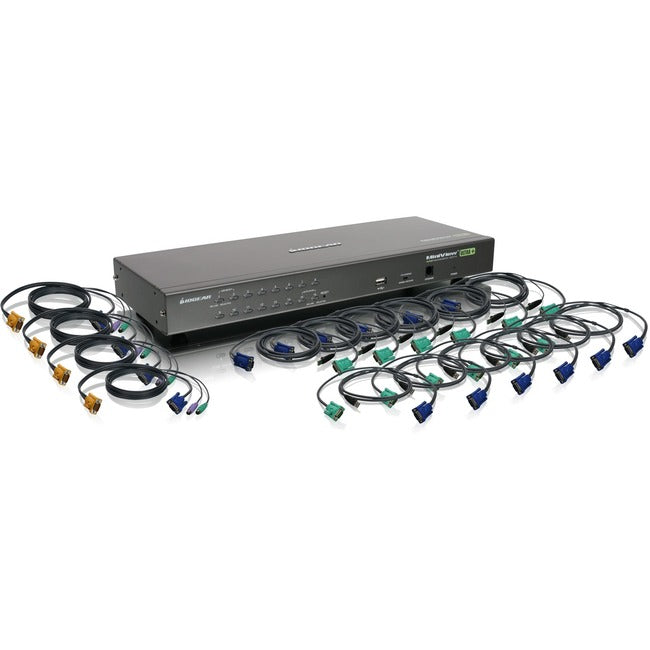

Package Contents:
- USB PS/2 Combo KVM Switch
- Rack Mount Kit
- 6 x 2M USB KVM Cable (G2L5202U)
- 6 x 3M USB KVM Cable (G2L5203U)
- 2 x 2M PS/2 KVM Cable (G2L5202P)
- 2 x 3M PS/2 KVM Cable (G2L5203P)
- 1 x Console Cable
- 1 x Firmware Upgrade Cable
- 1 x Grounding Wire
- 1 x Foot Pad Set (4 Pads)
- 1 x Power Adapter
- 1 x User Manual
- 1 x Warranty Registration Form
Limited Warranty: 3 Year
