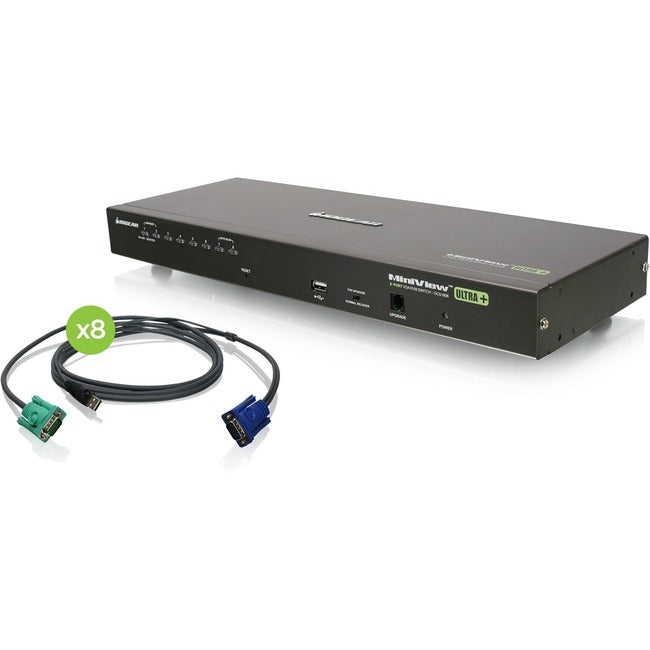

Iogear 8-Port Usb Ps/2 Combo Vga Kvm Switch With Usb Kvm Cables

IOGEAR 8-Port USB PS/2 Combo VGA KVM Switch with USB KVM Cables

The GCS1808KITU KVM is a combo VGA switch that includes 8 USB KVM cables (4 x 6ft and 4 x 10ft).

Access and control of up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1808KITU features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

The GCS1808KITU includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1808KITU intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.

Benefits:

• Equipped with 8 USB KVM Cables (4 x 6ft and 4 x 10ft)
• Eliminates the excessive expense of additional monitors, keyboards and mice
• Increases office space, productivity, and provides as an energy cost savings solution
• It contributes to a greener environment by reducing the amount of waste generated by multiple components
• An easy / efficient way to organize and streamline a growing or expanding server operation

More from the Manufacturer

• Front USB Port - for system upgrades and shared peripherals (fully compliant with USB 1.1)


• Maximum video resolution: up to 2048 x 1536


• Security - 2 level password protection for OSD


• Cascade up to 2 levels* - control up to 128 computers from a single console


• Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys


• Broadcast Mode to send commands to all connected computers


• Auto Scan Mode to monitor connected computers


• Equipped with 8 USB KVM Cables (4 x 6ft and 4 x 10ft)


• Supports both USB and PS/2, VGA computers


• Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®

Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: Taiwan
Rack Height: 1U
Brand Name: IOGEAR
Form Factor: Rack-mountable
Manufacturer: IOGEAR, Inc
Product Model: GCS1808
Product Name: 8-Port USB PS/2 Combo VGA KVM Switch with USB KVM Cables
Product Line: Miniview Ultra+
Manufacturer Part Number: GCS1808KITUTAA
Manufacturer Website Address: http://www.iogear.com
Packaged Quantity: 1
Package Contents:

• 8-Port USB PS/2 Combo KVM
• 4 x USB KVM Cables (6ft - G2L5202U)
• 4 x USB KVM Cables (10ft - G2L5203U)
• 1 x PS/2 KVM Cable (6ft - G2L5202P)
• 1 x Console Cable
• 1 x Cascade Cable
• 1 x Firmware Upgrade Cable
• 1 x Grounding Wire
• 4 x Foot Pad
• 1 x Power Adapter
• 1 x Standard Rack Mounting Kit
• 1 x Installation Guide
• 1 x Warranty Card
