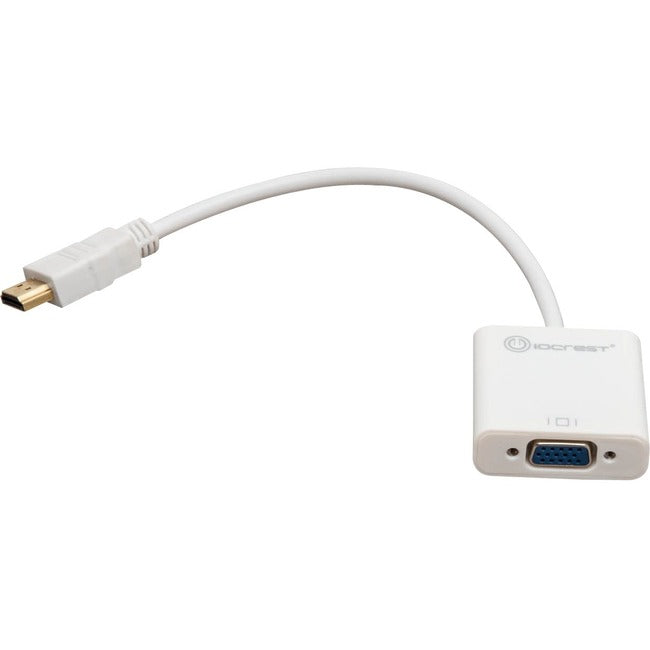

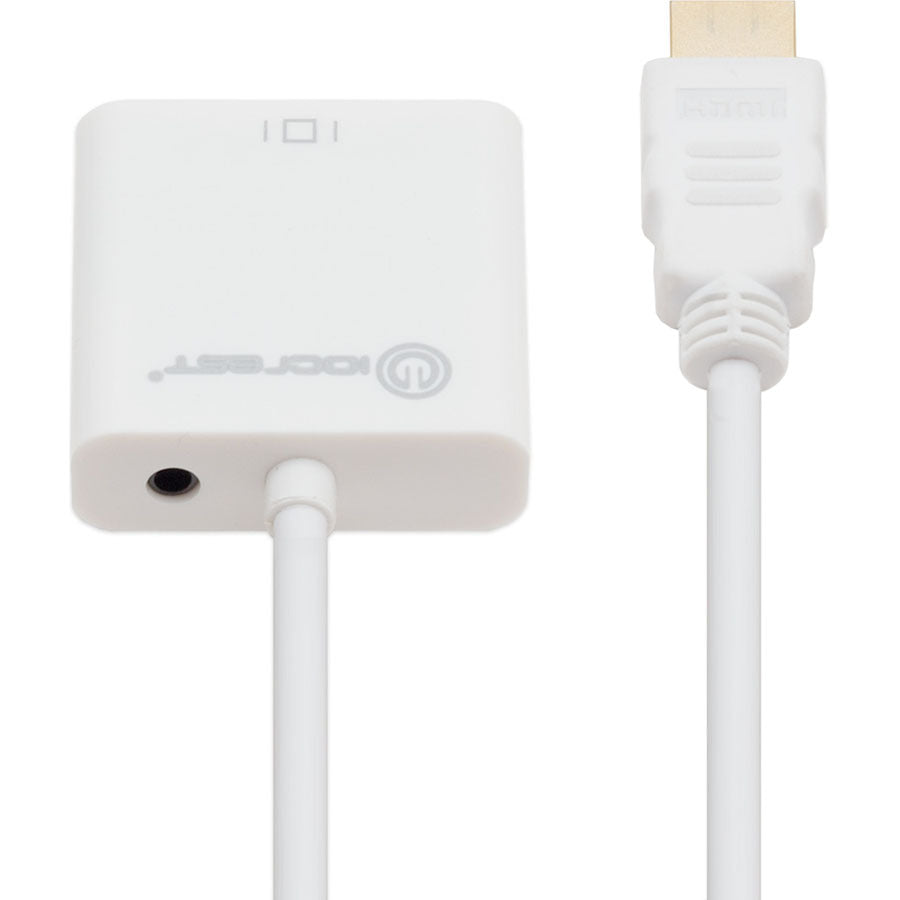

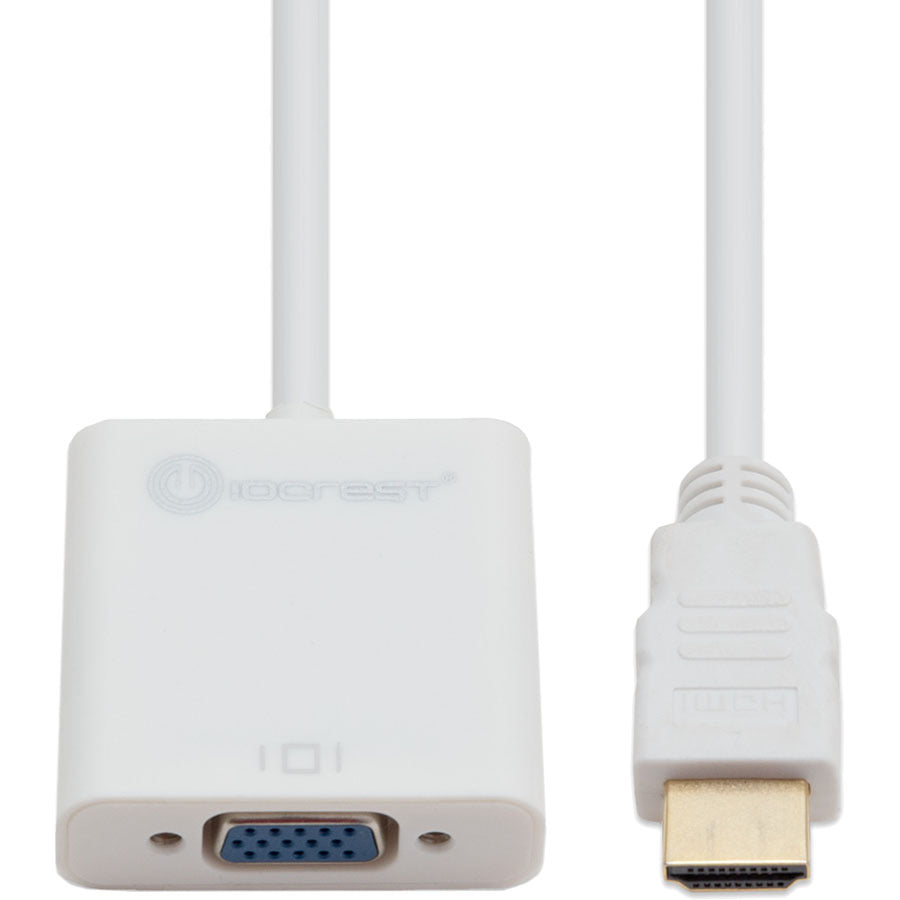

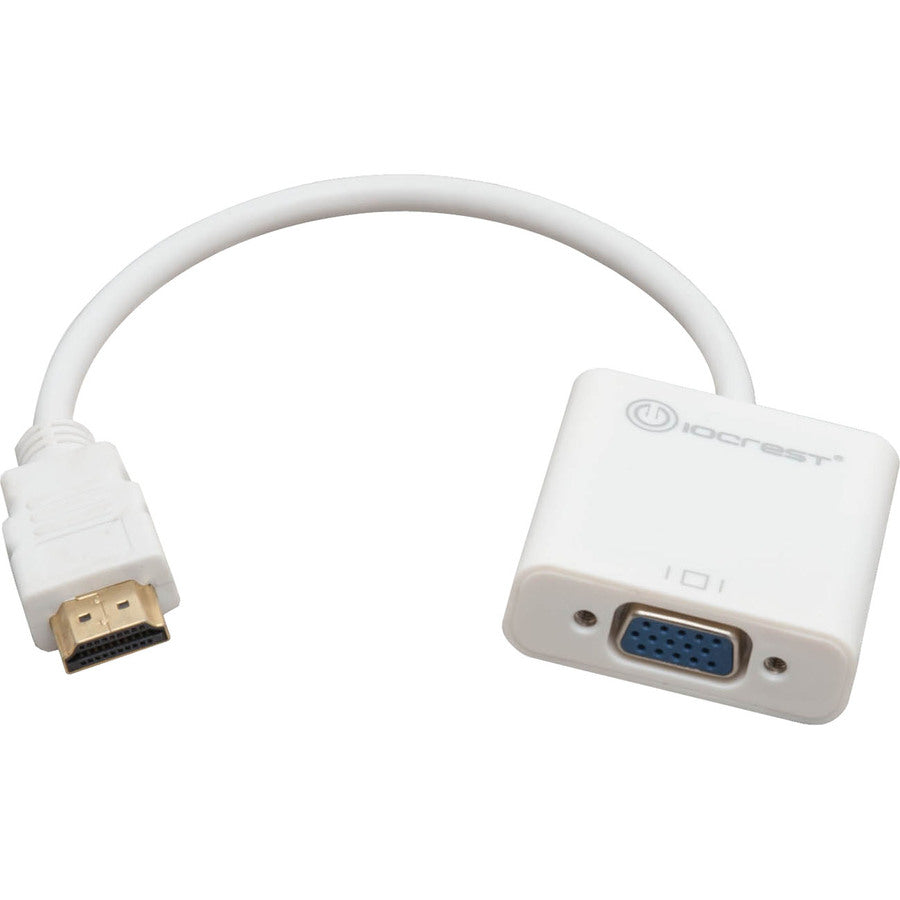

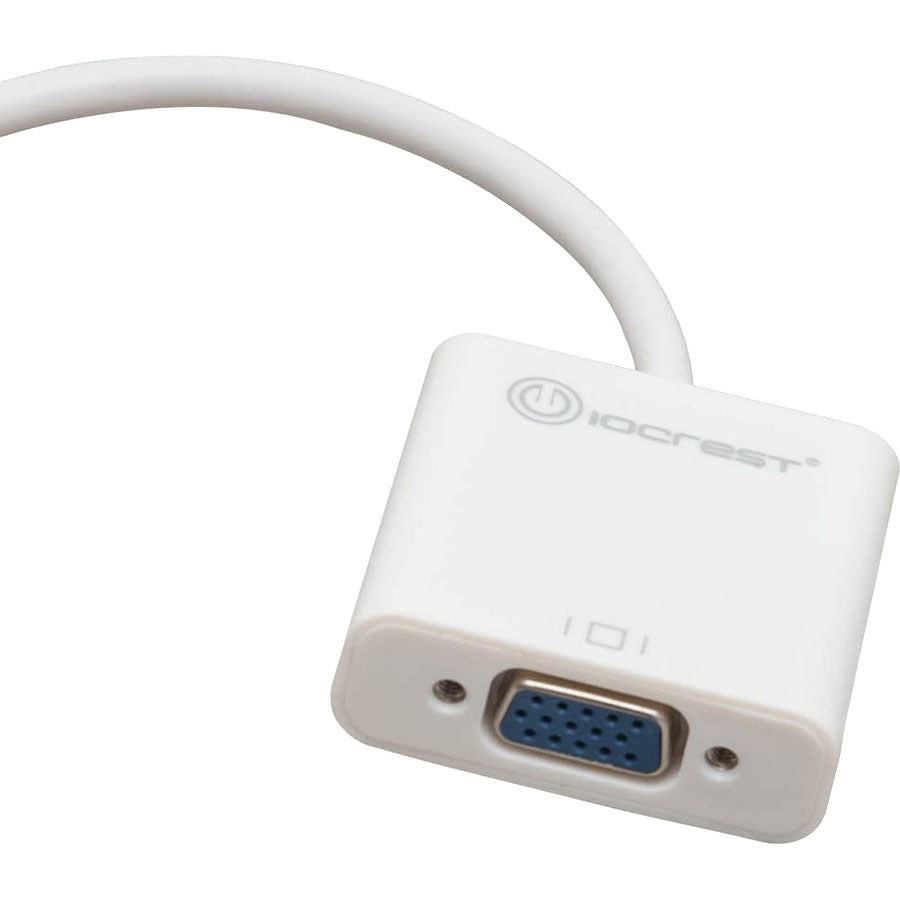

IO Crest Active HDMI to VGA Adapter with Audio Support via 3.5mm jack SY-ADA31044

IO Crest Active HDMI to VGA Adapter with Audio Support via 3.5mm jack

Convert HDMI signals into VGA outputs at a maximum conversion rate of 200 MHz with IIS or SPDIF audio output. The HDMI Receiver integrated is compliant with HDMI 1.4b. The DACs are based on current source architecture. And the VGA output meet VESA VSIS v1r2 clock jitter target.

• VGA/HDMI connection detection supported


• Integrated EDID buffer


• On-chip encoder supports 2 channel IIS/S/PDIF audio output


• Supports VESA and CEA timing standards up to WUXGA 1920x1200@60MHz and 1920x1080@60MHz.


• Analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate.


• Complaint with HDMI 1.4 specification


• Supports HDMI Standard Norm

Product Type: A/V Cable
Product Color: White
Brand Name: IO Crest
Manufacturer: SYBA Multimedia, Inc
Product Name: Active HDMI to VGA Adapter with Audio Support via 3.5mm jack
Manufacturer Part Number: SY-ADA31044
Manufacturer Website Address: http://www.syba.com
Packaged Quantity: 1

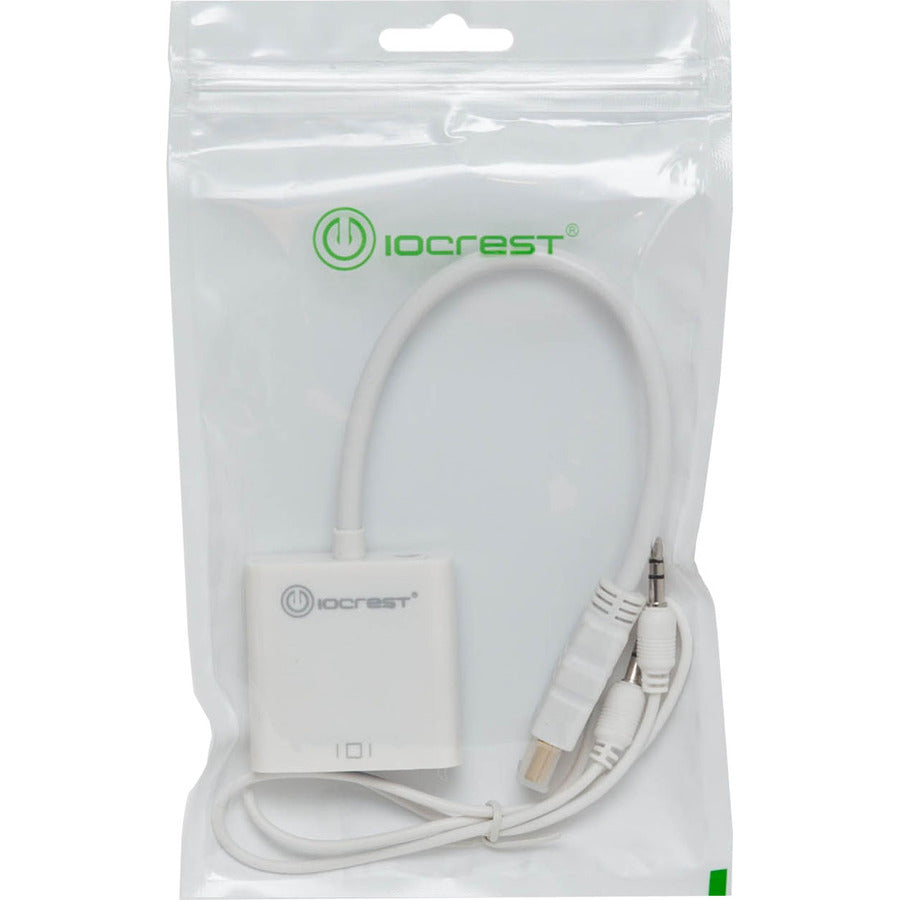

Package Contents:

• Active HDMI to VGA Adapter with Audio Support via 3.5mm jack
• 1 x Male to Male Audio Jack
