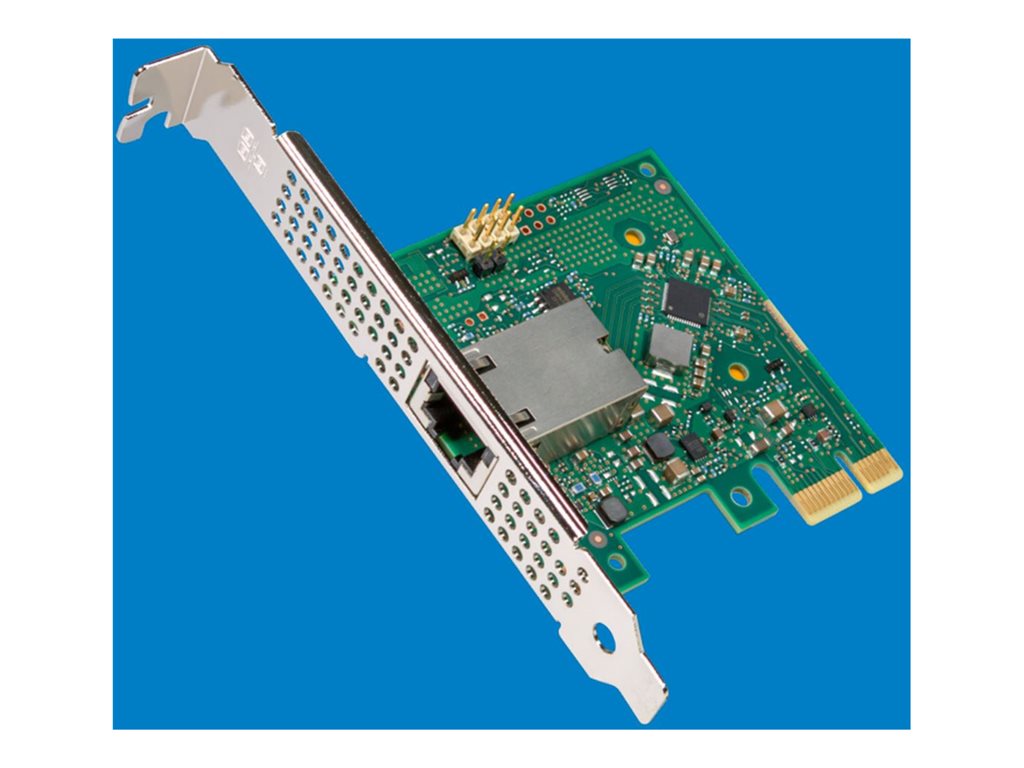

Intel Ethernet Network Adapter I226-T1 - Network adapter - PCI Express 3.1 x1 low profile - 2.5GBase-T x 1
-
Enhanced connectivity
The Intel Ethernet Network Adapter I226-T1 offers robust 2.5GBase-T connectivity, ensuring high-speed data transfer rates of up to 2.5 Gbps. This feature is designed to meet the demands of computing environments, providing a seamless and efficient networking experience.
-
Comprehensive compatibility
With support for a wide range of standards including IEEE 802.3, 802.3x, and 802.3z, as well as a variety of network and transport protocols like IPv4, IPv6, TCP/IP, and UDP/IP, this network adapter ensures broad compatibility with existing infrastructure and future network deployments.
-
Efficient power management
The Intel Ethernet Network Adapter I226-T1 is engineered with features like Active State Power Management (ASPM), low power consumption, and an operational power draw of only 1.4 W, making it an energy-efficient choice for any setup.
-
Advanced networking features
This adapter comes equipped with functionalities such as auto-negotiation, flow control, load balancing, and Receive Side Scaling (RSS), enhancing its operational efficiency and reliability in handling network traffic.
-
Durable and compliant
Adhering to a comprehensive list of standards and certifications including FCC Class B, RoHS, and UL among others, the Intel Ethernet Network Adapter I226-T1 is built for durability and compliance with global regulatory standards.
The Intel Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption. Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms. Based on the Intel Ethernet Controller I226-LM, this versatile networking solution supports 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with auto-negotiation between port speeds provides maximum flexibility.
- Low power, low cost
- Single-port 10/100/1000/2.5 GBASE-T(X) Copper
- Ultra-compact footprint
- Ventilated bracket
- Environmentally friendly
- Lead free and low halogen
- PCIe 3.1 support (5GT/s)
- Distance up to 100 meters
