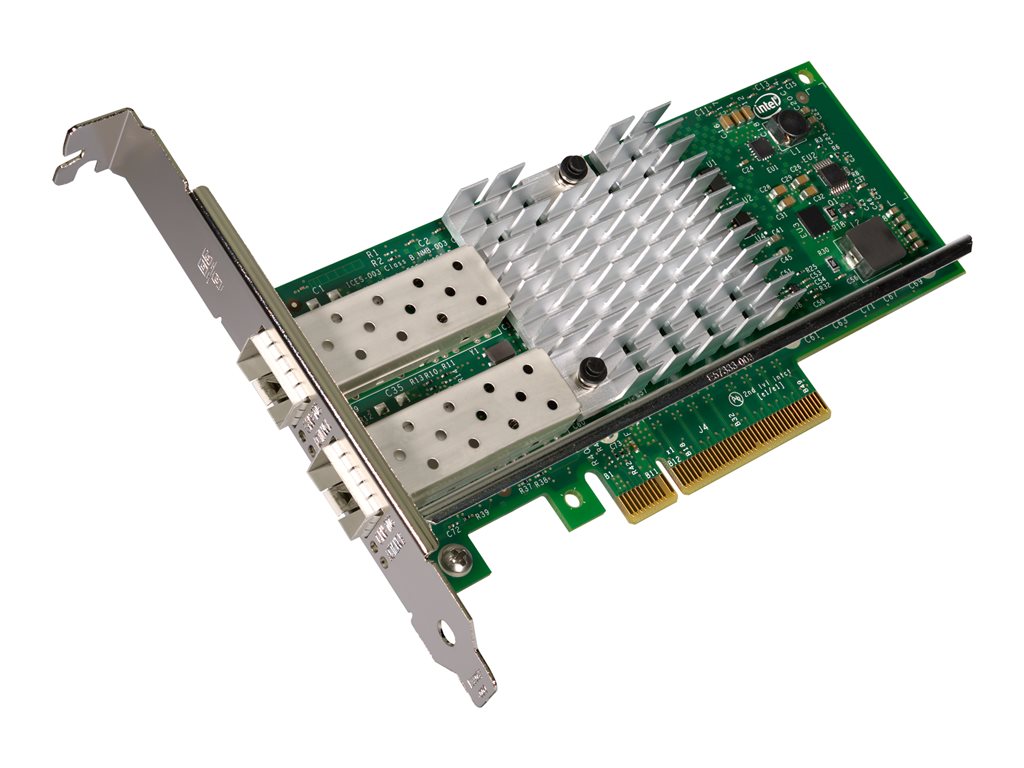

Intel Ethernet Converged Network Adapter X520-DA2 - Network adapter - PCIe 2.0 x8 low profile - 10Gb Ethernet x 2
- SFP+ connectivity
- Low-profile
- Load balancing on multiple CPUs
- ISCSI remote boot support
- Fiber Channel over Ethernet (FCoE) support
- Intel Direct Cache Access (DCA)
- MSI-X support
- Low latency interrupts
- Header splits and replication in receive
- IPsec offload
- Virtual Machine Load Balancing (VLMB)
- Watchdog timer
Intel's family of adapter, the Intel' Ethernet Converged Network Adapter X520 with SFP+ connectivity, is the flexible and scalable Ethernet adapter for today's demanding data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gbps connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.
-
Low-profile
Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers.
-
Load balancing on multiple CPUs
Increases performance on multi-processor systems by efficiently balance CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or scalable I/O on Linux.
-
ISCSI remote boot support
Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions.
-
Intel Direct Cache Access (DCA)
Enables the adapter to pre-fetch the data from memory, avoiding cache misses and improving application response time.
-
MSI-X support
Minimizes the overhead of interrupts. Load-balancing of interrupt handling between multiple cores/CPUs.
-
Low latency interrupts
Based on the sensitivity of the incoming data, the adapter can bypass the automatic moderation of time intervals between the interrupts.
-
Header splits and replication in receive
Helps the driver focus on the relevant part of the packet without the need to parse it.
-
IPsec offload
Offloads IPsec capability onto the adapter instead of the software to significantly improve I/O throughput and CPU usage.
-
Virtual Machine Load Balancing (VLMB)
Virtual Machines Load Balancing (VMLB) provides traffic load balancing across virtual switch, port, cable, or adapter failure.
-
Watchdog timer
Gives an indication to the manageability firmware or external devices that the chip or the driver is not functioning.
