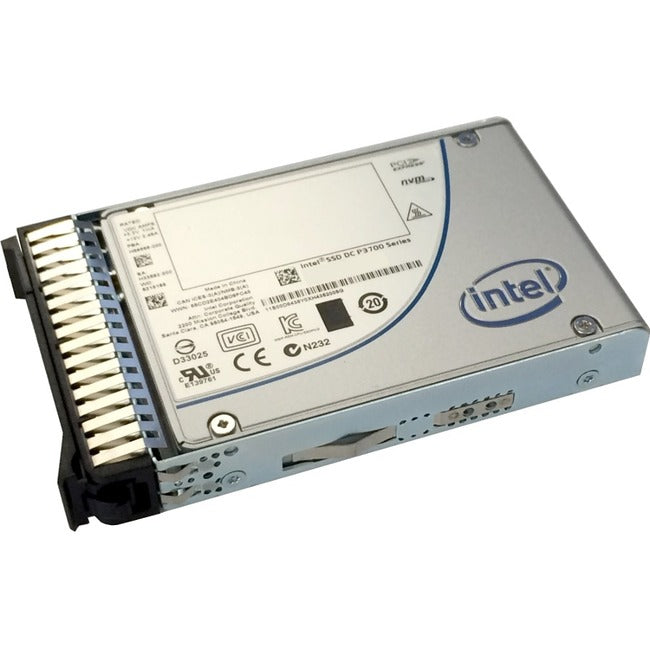

Lenovo P3700 2 TB Solid State Drive - 2.5" Internal - PCI Express (PCI Express 3.0 x4)
Non-Volatile Memory Express (NVMe) is new PCIe 3.0 high performance SSD technology that provides high I/O throughput and low latency. NVMe interfaces remove SAS/SATA bottlenecks and unleash all of the capabilities of contemporary NAND flash memory. Each NVMe PCI SSD has direct PCIe 3.0 x4 connection, which provides at least 2x more bandwidth and 2x less latency than SATA/SAS-based SSD solutions. NVMe drives are also optimized for heavy multi-threaded workloads by using internal parallelism and many other improvements, such as enlarged I/O queues.
The P3700 NVMe drives have the following key characteristics:
- Direct PCIe 3.0 connection. There is a PCIe 3.0 x4 connection for each NVMe drive with up to 4 GBps overall throughput.
- Low I/O latency. The average read/write latency for the P3700 drives is 20 µs.
- Up to 2800 MBps sequential read speed with 128 KB blocks, and up to 2000 MBps sequential write speed with 128 KB blocks per drive.
- Up to 460,000 IOPS of random read with 4 KB blocks, and up to 175,000 IOPS of random writes with 4 KB blocks.
- A total of 65,536 I/O queues supported and 65,536 commands per queue supported, which provides great performance on heavily multithreaded workloads with combined sequential and random access.
- High endurance: The P3700 drives include High Endurance Technology (HET) which combines NAND silicon enhancements and SSD NAND management techniques to extend SSD write endurance up to 17 drive writes per day (DWPD) for 5 years.
- Available drive capacities or 400 GB, 800 GB, 1.6 TB, and 2.0 TB.
- Support for software RAID under operating system management.
- Hot add and hot remove features are available with supported operating systems.
- Most operating systems have native support of NVMe drives or provides support through software drivers, such as RHEL 6.5 and later, RHEL 7.0 and later, SLES 11 SP3, SLES 12, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, and VMware vSphere (ESXi) 5.5 and 6.0.
- NVMe drives can be used as boot drives.
- Store as many documents, pictures and videos as you need with 2 TB capacity
- The high-read speed of 2867.20 MB/s maximizes system performance and saves time while you are doing complex tasks
- Write speed of 1945.60 MB/s enables you to perform write-related tasks in seconds rather than minutes
- PCI Express 3.0 x4 interface provides enhanced bandwidth for the quick access of data by the operating system and applications
Product Type: Solid State Drive
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Series: P3700
Brand Name: Lenovo
Drive Type: Internal
Compatibility: Lenovo Flex System x240 M5 Compute Node (9532)
Form Factor: 2.5"
Manufacturer: Lenovo Group Limited
Product Name: P3700 2.0TB NVMe 2.5" G3HS Enterprise Performance PCIe SSD
Device Supported: Server
Hot Swappable: Yes
Manufacturer Part Number: 00YA827
Manufacturer Website Address: http://www.lenovo.com/us/en/
Weight (Approximate): 4.41 oz
