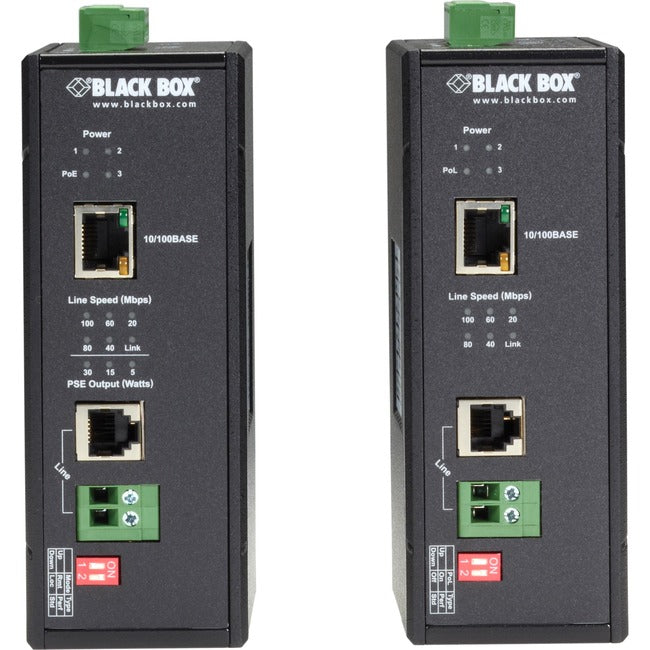

Black Box Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit
- Kit includes both a local and a remote unit.
- Transparent to data.
- Hardened for industrial use with a tough aluminum case and an extended temperature range of -40 to +167° F (-40 to 75° C).
- Autosensing, auto-negotiating 10-/100-Mbps Ethernet port with Auto MDI/MDI-X.
- Six speeds with speed indicator LEDs.
- Powered through a 48-VDC terminal block or a 48-VDC jack. Order power supplies separately (SDR-120-48).
- Supports DIN rail, panel, and rackmount installations.
The Hardened PoL PoE Ethernet Extender Kit connects and powers PoE devices such as security cameras over one pair of ordinary voice-grade UTP cable. It enables you to save on installation costs by enabling you to use wire you may already have installed.
Speed, distance, and power!
This extender delivers the goods with up to 100-Mbps performance at up to 300 meters. Plus, even at a distance of almost three football fields, it powers 802.3at PoE devices with a full 30 watts, so high-powered devices like PTZ cameras can get the power they require. At longer distances, speed and power go down, of course, but you can still get full power by using a separate power supply with the remote unit (see the chart below).
Built tough for tough environments
The extender is hardened for industrial use with a tough aluminum case that keeps out dust and debris. It features an extended temperature range of -40 to +167° F (-40 to 75° C). The extender mounts on standard DIN rails and accepts standard 48-VDC power via terminal block. For redundant power, the terminal block has a second power input or you can use the 48-VDC power jack.
- Supports DIN rail, panel, and rackmount installations.
- Powered through a 48-VDC terminal block or a 48-VDC jack. Order power supplies separately (SDR-120-48).
- Six speeds with speed indicator LEDs.
- Autosensing, autonegotiating 10-/100-Mbps Ethernet port with Auto MDI/MDI-X.
- Hardened for industrial use with a tough aluminum case and an extended temperature range of -40 to +167° F (-40 to 75° C).
- Extends Power over Ethernet up to 1.2 kilometers and Ethernet up to 2.2 kilometers.
- Provides high-powered 802.3at PoE over one pair of voice-grade UTP.
Product Type: Network Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit
Manufacturer Part Number: LBPS310A-KIT
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 5 Year
