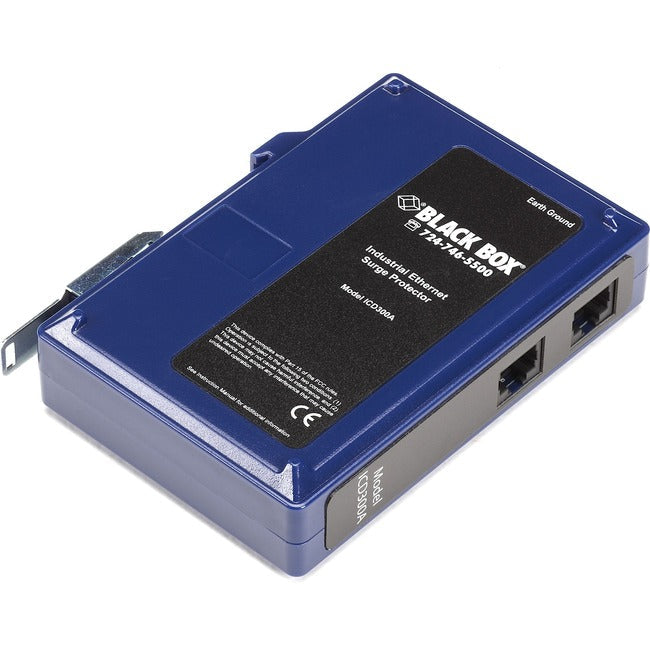

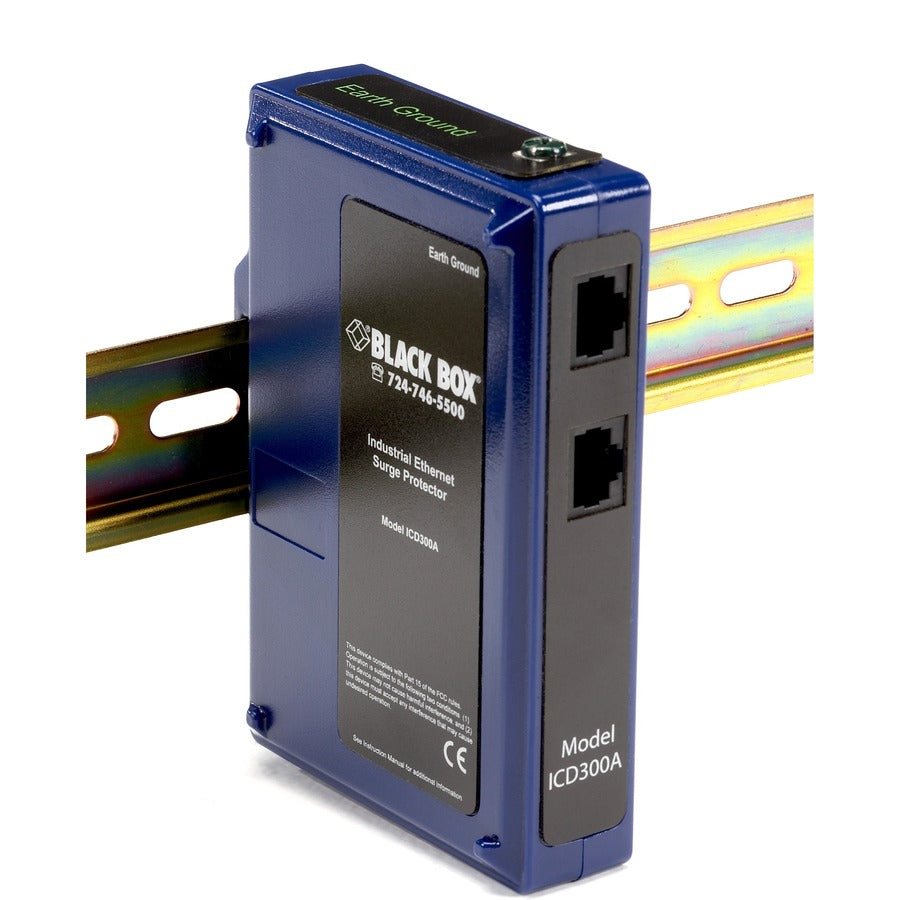

Black Box Industrial Ethernet Surge Protector, DIN Rail
This Industrial Ethernet Surge Protector is PoE compatible, and it works with 10BASE-T/100BASE-TX. It is designed to protect all eight lines in a standard CAT5x Ethernet cable.
This single-port, industrial-strength Ethernet surge protector brings data line protection to 10-/100-Mbps links on plant floors and in other harsh areas.
The durable DIN mount protector suits temperatures ranging from -40 to +176° F (-40 to +80° C) and is designed to protect all eight pins of standard CAT5e cabling.
Use this compact device alongside other CAT5e cabled DIN rail equipment, such as hardened switches, media converters, and repeaters. Protecting 10BASE-T or 100BASE-TX connections from transient surges, the surge protector doesn't degrade data signals as they pass through.
And it works in Power over Ethernet (PoE) applications, too. The 802.11af-compatible surge protector supports both PoE operating modes: Mode A, with power applied to the data pairs (Pins 1/2 and Pins 3/6) and Mode B, with power applied to the unused pairs (Pins 4/5 and Pins 7/8).
- Works with 10BASE-T/100BASE-TX
- Operating Temperatures ranging from -40 to +176? F (-40 to +80 C)
- IP30-rated DIN rail enclosure
- Use in Power over Ethernet (PoE) applications, too.
- Space-saving, slim enclosure with a DIN rail mount.
- Protects all eight wires of CAT5e cabling for devices in factories and other harsh environments.
Product Type: Surge Suppressor/Protector
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Condition: New
Country Of Origin: United States
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: Industrial Ethernet Surge Protector, DIN Rail
Manufacturer Part Number: ICD300A
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 5 Year
