"Minimum Order Quantity: 10" Panduit IndustrialNet TX5e Connectors

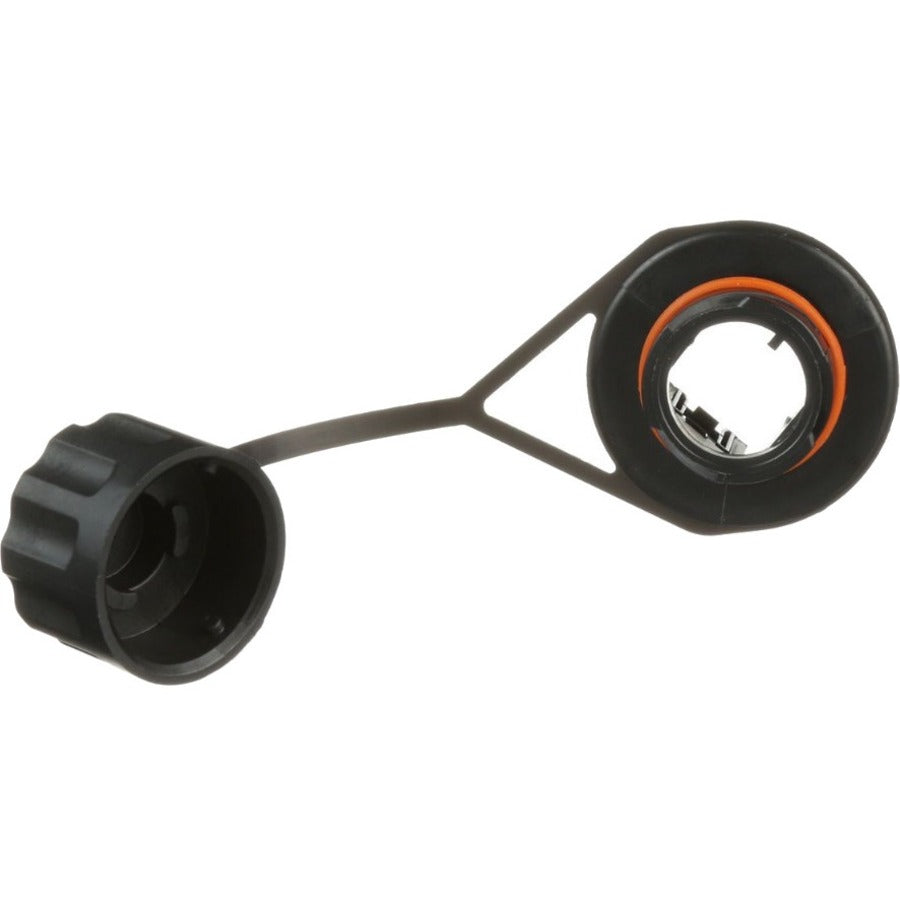

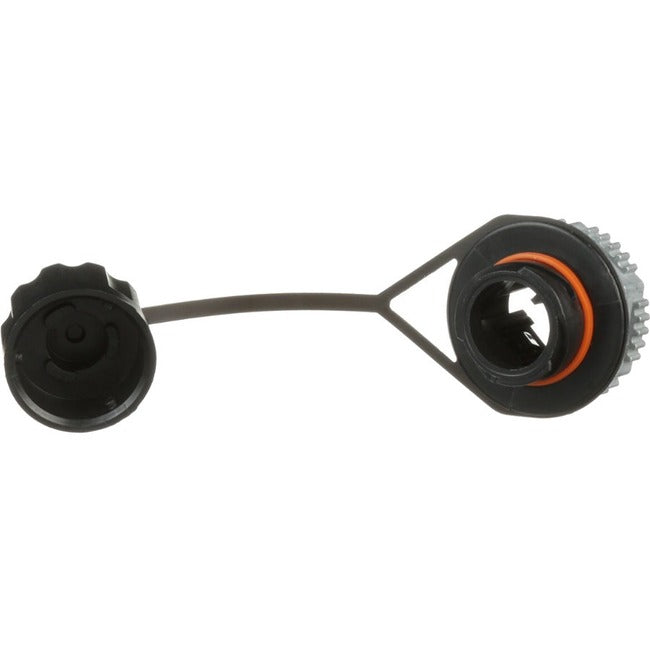

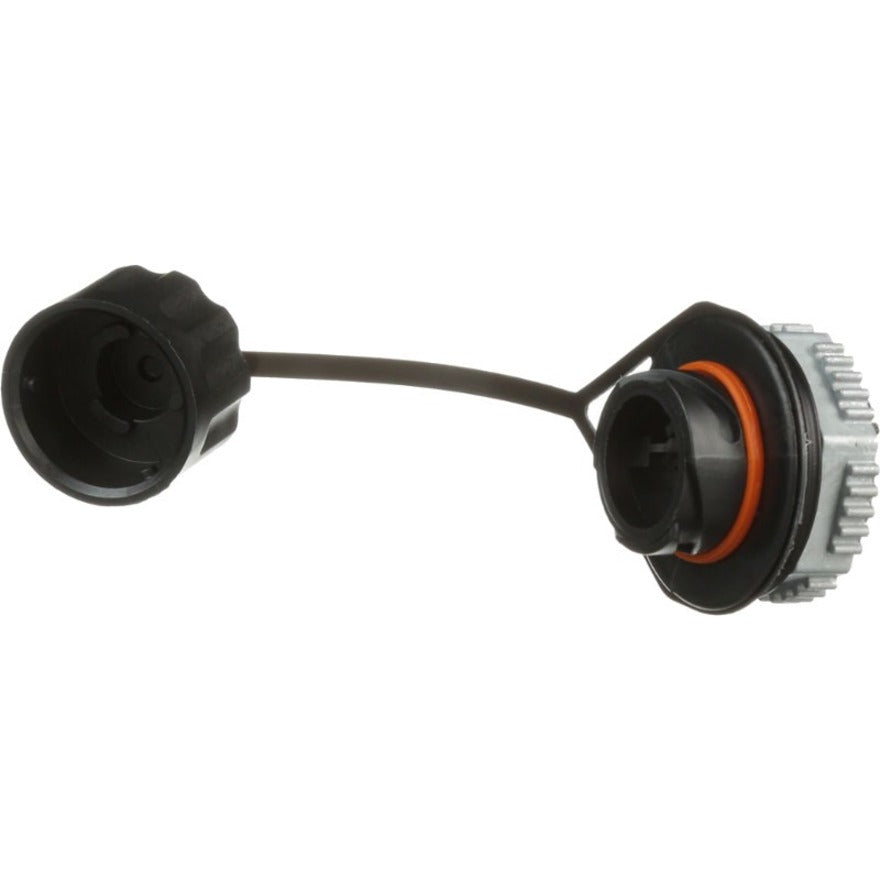

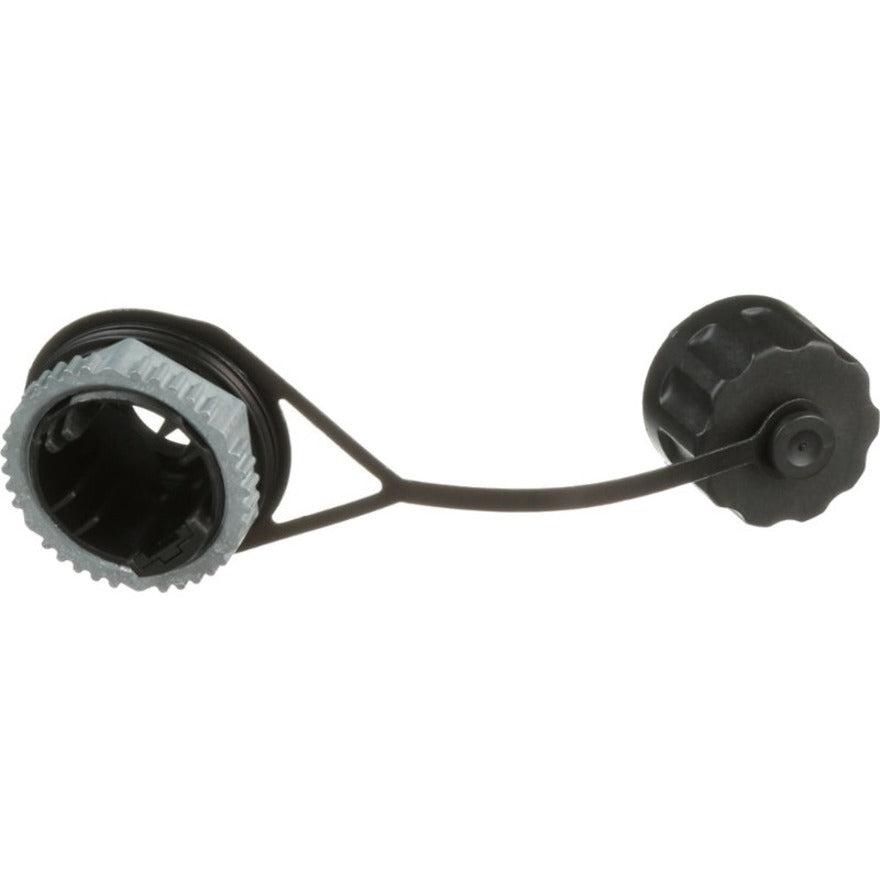

The IndustrialNet™ Cat 5e shielded bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The shielded bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.
- Bulkhead anti-rotation washer : Eliminates the potential for module rotation
- Connector mounting nut : Holds bulkhead safely and securely from inside of enclosure
- Robust construction : Plug contact plated with 50 microinches of gold
- Bayonet style interface : Provides positive reinforcement during mated condition; rated to 100 mating cycles
- Protective cap : Maintains IP67 seal during unmated connection
- Utilizes patented Giga-TX™ Technology : Optimizes performance by reducing conductor untwist to less than 1/8"
- Forward motion termination : Speeds installation and places no impact on critical components for maximum reliability
- Industry standard RJ45 interface : Familiar to end users
- No punchdown tool required : Can terminate with standard adjustable slipjaw pliers or optional termination tool (EGJT)
- Universal wiring scheme : Termination cap is color coded for T568A and T568B wiring schemes
Product Type: Network Connector
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Country Of Origin: United States
Product Series: TX5e
Brand Name: Panduit
Manufacturer: PANDUIT CORP
Product Name: IndustrialNet TX5e Connectors
Product Line: IndustrialNet
Manufacturer Part Number: IAEBH5ES
Manufacturer Website Address: http://www.panduit.com
Packaged Quantity: 1
Limited Warranty: 5 Year
