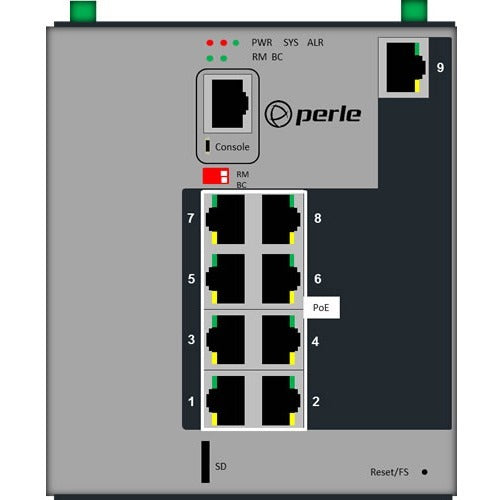

Perle Industrial Managed Power Over Ethernet Switch
The IDS-509PP is a 9 port Managed PoE+ Switch that can operate in industrial 10/100/1000-Base-T environments providing advanced performance and enabling real-time deterministic network operation. These PoE Switches are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, the IDS-509GPP has 6 ports that also provide up to 30 watts of power to Powered Devices (PDs) such as wireless access points, Voice over IP phones and IP cameras.
Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.
Perle's Fast Setup feature provides simple Plug and Play installation to get your Ethernet devices networked immediately. The familiar Command Line Interface ( CLI ), via in-band Telnet or the out-band serial console port, will be appreciated by CCNA ( Cisco Certified Network Associate ) and CCNP ( Cisco Certified Network Professional ) trained engineers.
The PRO feature set in the IDS-305 is ideal for advanced environments where additional extensive security and network integration functionality is required.
-
AAA ( Authentication, Authorization, Accounting ) security protocols: RADIUS and TACACS+ -
Secure management sessions via SSH, SNMPv3, Telnet and HTTPS -
Management Access Lists (ACL) by IP address and IP Port number - Password Strength Checking
-
IEEE 802.1x Authentication and Port Security for protection of user access ports - Optimize the performance and intelligence of the network with Advanced Protocols: LLDP, GVRP, Voice VLANs, MSTP, GMRP, IPv4 IGMP Snooping and IPv6 MLD Snooping
An IPv6 address can be used to manage the
IDS-509PP which also supports a comprehensive set of management functions, such as
P-Ring,
management VLAN, QoS, RMON, N:1 port mirroring and
local alert log.
The IDS-509PP, which comes in a variety of models, are
rugged fan-less switches that are hardened to provide superior reliability
in -10 to 60°C, or harsh extended operating temperatures
from -40 to 75°C. Every component on every industrial (XT) model has been
designed and tested to handle operating temperatures between -40 and 75C.
All Perle Industrial Ethernet Switches only use
high-end components from the
leading chip manufacturers to ensure the highest level of durability and reliability. In addition, all units have a corrosion resistance aluminum case and dual redundant power input with reverse polarity and overload protection.
Perle has been
designing industrial hardware for
over 35 years. This expertise was used to design the
toughest Ethernet switches on the market that will keep your system running for years to come.
- 9 port 10/100/1000Base-T ( RJ45 ) for Gigabit and Fast Ethernet devices
- PRO feature set including advanced switching, encryption and IEEE 1588 PTP
- PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
- IP Manageability, VLAN and resiliency management
- Digital inputs for generation of alerts
- Compact, corrosion resistant case attaches to a standard DIN Rail
- Redundant dual power input 48 VDC
- Out-of-band management via RJ45 or USB serial ports
- Programmable Controller safety and Hazardous Location Certification
- -40 to 75C industrial operating temperature ( XT Models )
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: REACH
Country Of Origin: Canada
Brand Name: Perle
Form Factor: Rack-mountable
Manufacturer: Perle Systems, Inc
Product Model: IDS-509PP8-XT
Product Name: Industrial Managed Power Over Ethernet Switch
Manufacturer Part Number: 07016380
Manufacturer Website Address: http://www.perle.com
Package Contents:
- Industrial Managed Power Over Ethernet Switch
- DIN Rail Attachment
- Terminal Block
- Installation Guide
Limited Warranty: 5 Year
Weight (Approximate): 3.31 lb
