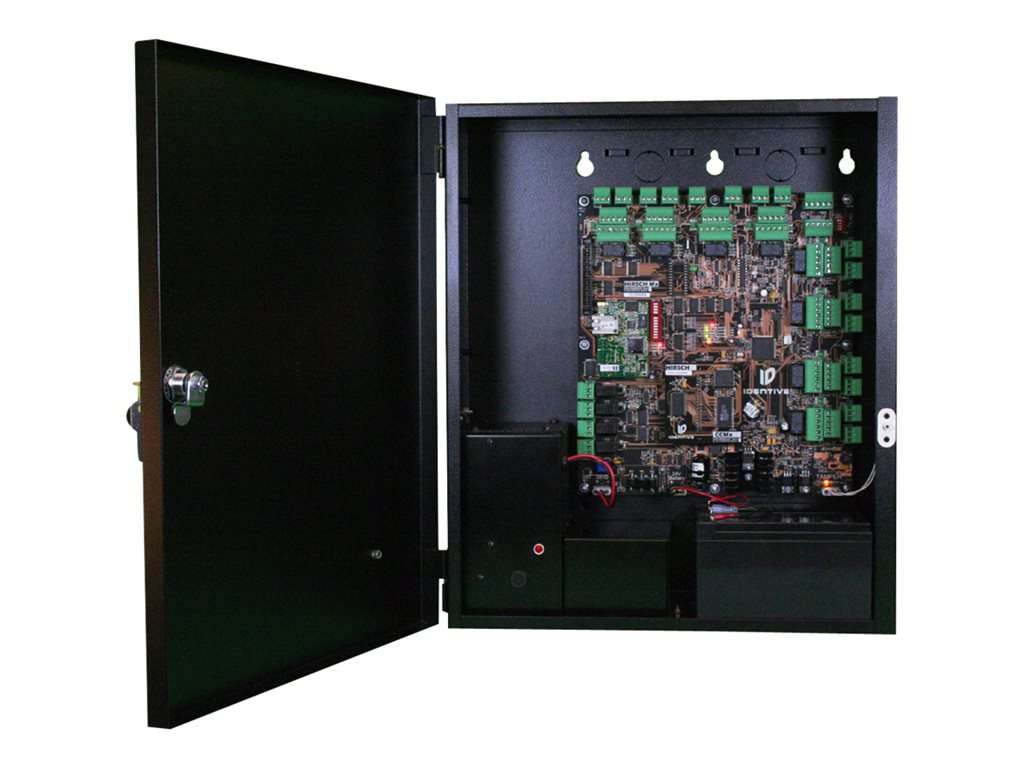

Identiv MX-8 Controller - Door controller - wired - Ethernet - with SNIB3 and 4 Line Module 3Accessory (MELM3)
- Integrated network communication
- Designed for use with Identiv Connected Physical Access Manager (ICPAM)
- Scalable from a single controller to networked, multi-site installations
- Support for uTrust TS readers
- Onboard MATCH for connecting standard Wiegand readers
- Multi-microprocessor architecture
- Modular expansion of I/O and badge capacity
The modular design and the scalable architecture of the controller enables an installation to start small and expand as needed, from a single controller system to a larger, multi-site enterprise. Mx Controllers are the core of Identiv's physical access control solutions. These controllers are designed for use with the Identiv Connected Physical Access Manager (ICPAM) solution and uTrust TS Readers.
-
High security input monitoring
Identiv uses very stable digitally processed analog inputs with line supervision for high-security input monitoring. A line supervision module is located at the door contact, alarm sensor, request to exit (RQE/REX), or similar device to establish this supervision. Conditions reported include alarm, secure, RQE, mask, tamper alarm, tamper secure, short, open, noisy, and input-out-of-spec. This provides significant advantages over traditional error-prone, environment-sensitive analog wiring back to controllers.
-
Relay control system
Relay outputs on Mx Controllers can be used for electric door locks and strikes, arming/disarming security systems, alarm annunciation, elevator floor control, HVAC control, lighting control, storage locker control, and many other equipment control applications. These relays may be activated by codes, cards (via reader), time zones, or alarms. Mx Controllers are also ideal for after-hours tenant override systems. A history of who issued the override command is available for tenant billing or audit trails. The same reader or keypad used for access control can be used for tenant override and remote operator command functions.
-
Reliability by design
Mx Controllers are designed for high availability as a complete system for global markets. Standby batteries for both memory and system operation are standard. The controller ships with an internal switching power supply. All door relays are socketed and replaceable. All keypad/reader terminals and power circuits are fused and are onboard resettable. Each unit is configured in a heavy duty, NEMA style enclosure, with lock and tamper alarm.
