ICY Dock ToughArmor MB720MK-B V3 - Storage drive cage - rugged - M.2 - PCIe 4.0 - black
- Fits 4x M.2 NVMe SSD of all lengths
- Installs into any standard external 5.25" optical drive bay
- Uses 4x OCulink to connect
- Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
- Patent-pending screw-less M.2 adjustable locker holds all length drives securely
- Removable and tool-less drive installation design for easy drive maintenance
- Ruggedized full-metal enclosure meeting flammability requirements
- Integrated large high-efficiency heatsink and ample ventilation for excellent cooling performance
- 2-segment key lock for additional physical security
- The eagle-hook tray latch securely holds the drive tray inside the enclosure
- Supports SATA 15-pin and OCuLink cables with locking latch design for a secure connection
- EMI grounding - protects SSDs from electrical damage
- Complimentary support from professionally trained technical support agents
The ToughArmor MB720MK-B V2 is a ruggedized removable quad M.2 PCIe 4.0 NVMe SSD enclosure design for a 5.25" optical drive bay and supporting up to 64Gbp/s data transfer rates via OCulink (SFF-8612) interface. It simplifies the process of installing or removing M.2 NVMe SSD by using the removable drive trays with tool-less adjustable M.2 drive locker, making it easy to change drives at any time without open the computer case or dealing with drive mounting screws.
For best cooling performance, the MB720MK-B V2 is equipped with dual cooling fans in the rear to remove the heat generates by the high-speed PCIe 4.0 SSD. On top of that, each drive tray comes with an extra-large heatsink lid and thermal pad to ensure your SSDs are at optimal temperatures. As part of ICY DOCK's toughest line, the MB720MK-B V2 is made out of full metal construction with metal barrel key locks for maximum protection.
-
Superior PCIe 4.0 performance
To unlock the full potential of the PCIe 4.0 NVMe SSD, each drive bay uses a dedicated OCulink (SFF-8612) connector to achieve the bandwidth rate of 64Gb/s, which is two times faster than PCIe 3.0 and 10 times faster than SATA standards. This makes it an ideal solution for data-intensive applications such as autonomous driving, mobile automation, real-time forecast, film editing, and military computing.
-

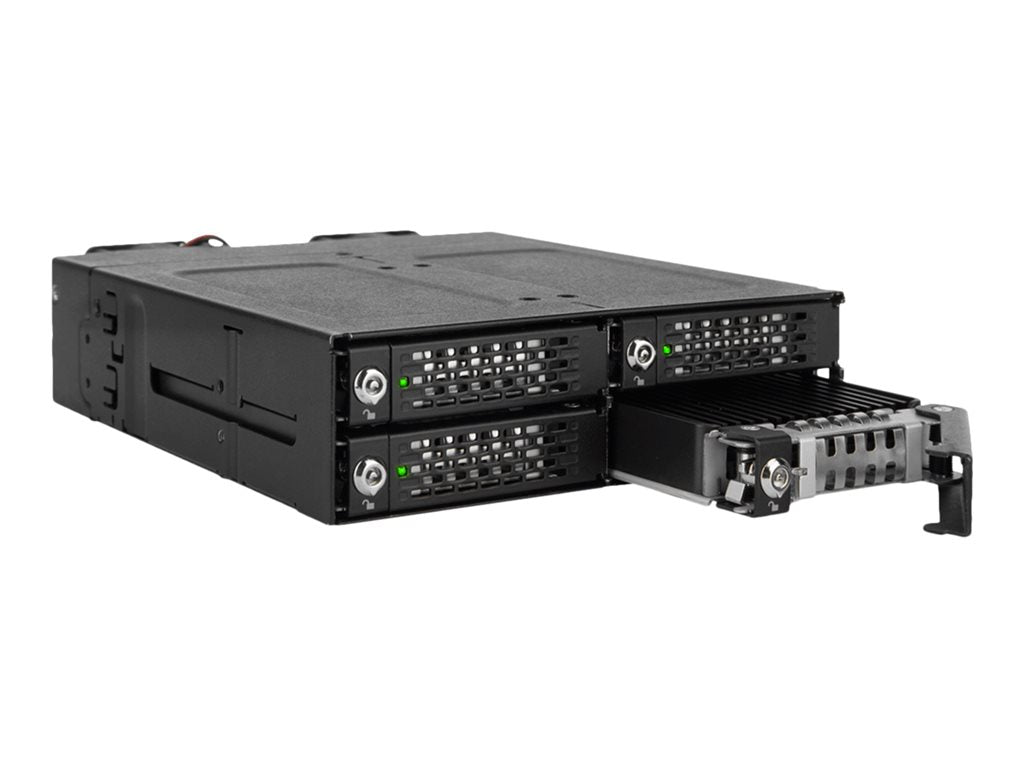

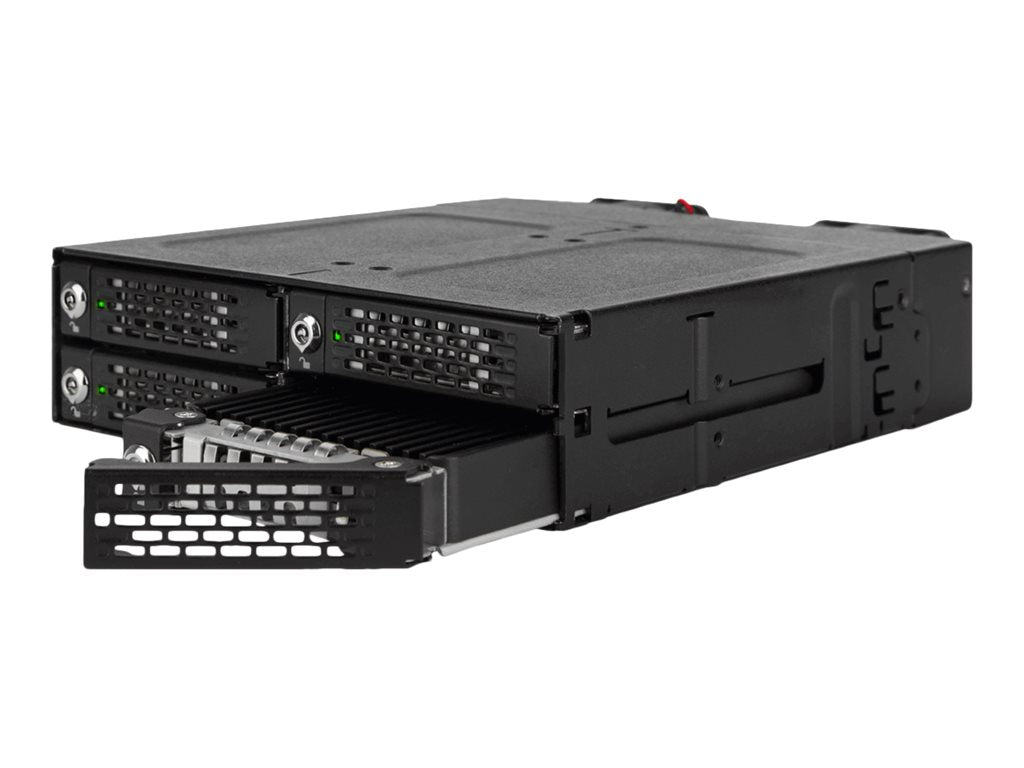

Removable drive tray design
A typical M.2 SSD is installed on the motherboard or adapter card that is often secured by tiny screws and requires opening the computer case to access the drives. With the ToughArmor MB720MK-B V2, your M.2 NVMe SSDs are brought to the 5.25" optical bay of the computer system and lets you change the drives without open up the case, making drive maintenance a more efficient and straightforward process
-
Full drive length support
The M.2 adjustable locker accommodates all standard M.2 PCIe NVMe SSD drives, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm), making this drive universal to all M.2 drive length and future-proofing the extra-long M.2 110mm drive.
-
EMI grounding technology
Grounding your M.2 SSD is essential as swapping drives without proper grounding may lead to hardware damages due to static shocks. With the EMI grounding technology, once the drive clips in the M.2 adjustable locker, the drive will be in a constant grounded state throughout the tray, housing, and computer system to ensures your drives are protected from static electrical surges and safe during swapping.
-
ToughArmor protection
Ensuring the enclosure can be relied upon for many years, the ToughArmor MB720MK-B V2 is capable of holding up in the harshest environment. It comes equipped with rugged, heavy-duty full-metal protection throughout the entire device and tray, making it perfect for industrial devices that may require a flammability rating. The outstanding build quality is suitable for various enterprise systems such as military and law enforcement industries, in-vehicle computers, and manufacturing conditions such as embedded control and factory automation systems.
-

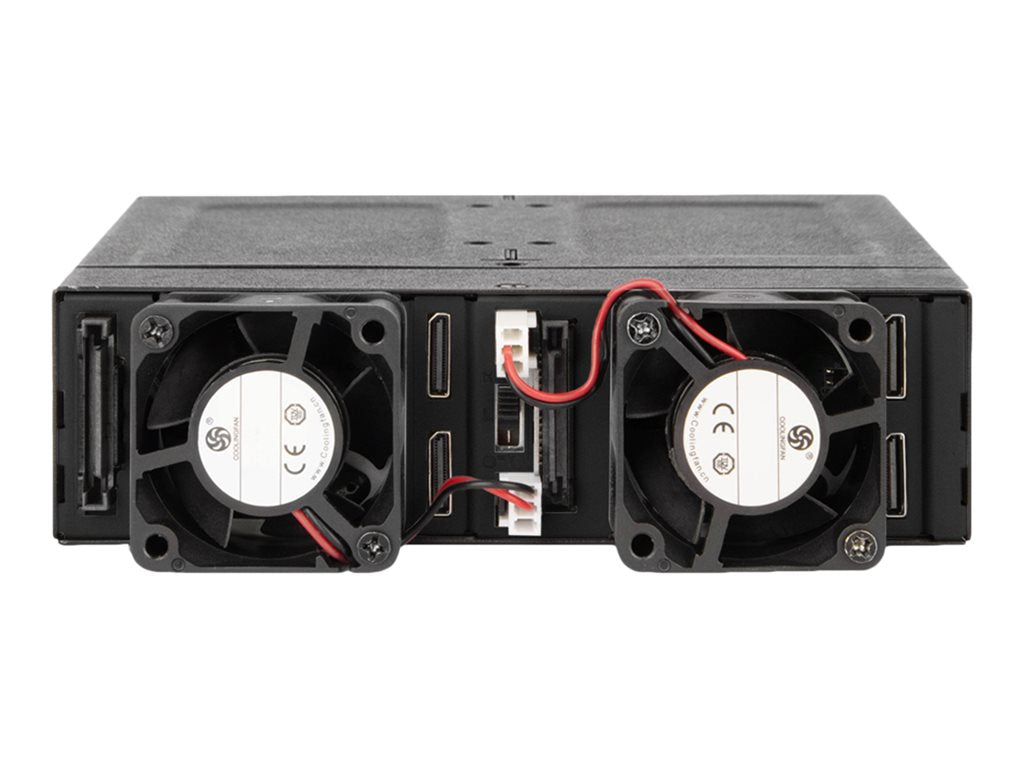

Maximizing cooling performance
Considering M.2 NVMe SSD is notorious for generating high temperatures, the drives must be maintained under operating temperatures at all times to prevent degradation of performance. Each drive tray comes equipped with an extra-large high-efficiency aluminum heatsink lid and thermal pad. Working together with the dual 40mm cooling fans, the heat is further dispersed through the intelligently place ventilation holes throughout the entire enclosure. The dual cooling fans come with three fan speed settings: High, Low, and off. The user can manually select the proper cooling option to keep the drives at optimal operating temperatures.
-
Packed with features
An LED status light built into the tray lets you know your drive is powered up and in use. The LED will shut off when no drive is installed to save power. For an additional physical layer of security, the included key-lock can be used to protect against unwanted access and secure drives in rough environments, such as military systems and in-vehicle PCs. Never forget which drives belong in what bays. With the individual drive ID labels, you'll always know which drive tray belongs in your RAID array or which drives contains specific files. Freely unplug and rearrange them to better suit your configurations or remove them for a simplified look.
-
Exceptional product compatibility
The MB720MK-B V2 is compatible with motherboards, RAID/HBA cards, and M.2 adapters from major brands including Adaptec, Areca, Broadcom, HighPoint, Supermicro, and more. This compatibility gives you the freedom to choose from a wide range of hardware options, moving beyond the constraints of single-brand system configurations.
