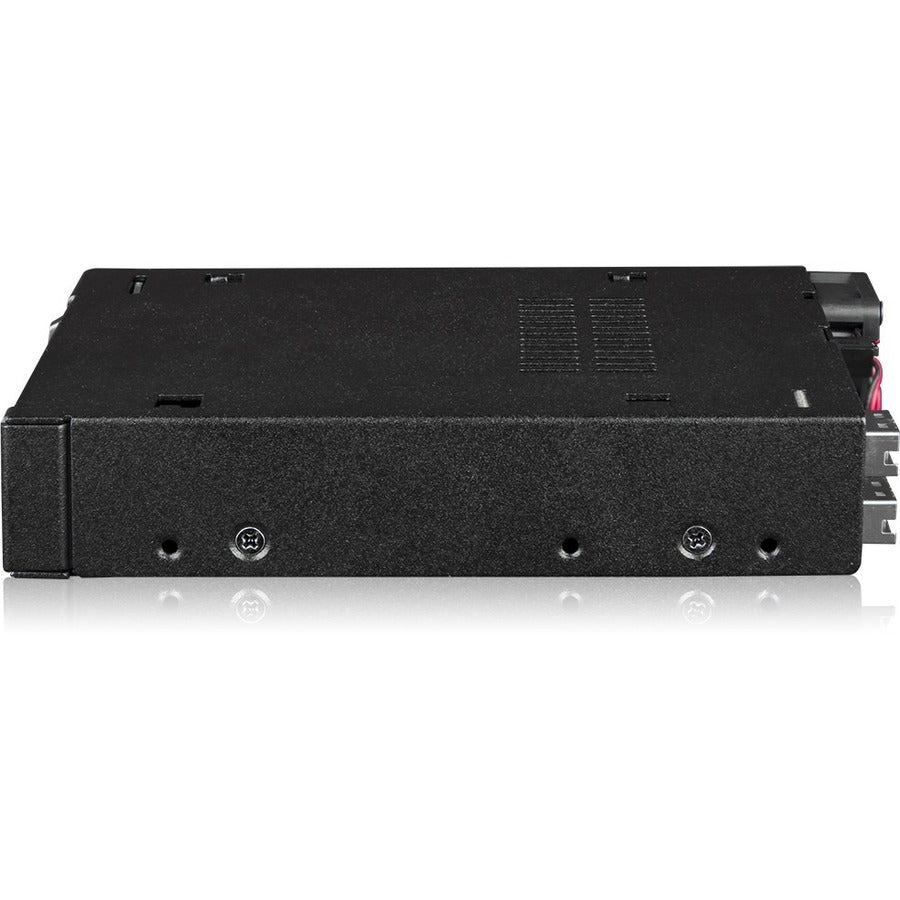

Icy Dock ToughArmor MB092VK-B Drive Enclosure for 3.5 PCI Express NVMe 4.0

Icy Dock ToughArmor MB092VK-B Drive Enclosure for 3.5" PCI Express NVMe 4.0, U.2, U.3 - SFF-8654 SlimSAS Host Interface Internal - Black

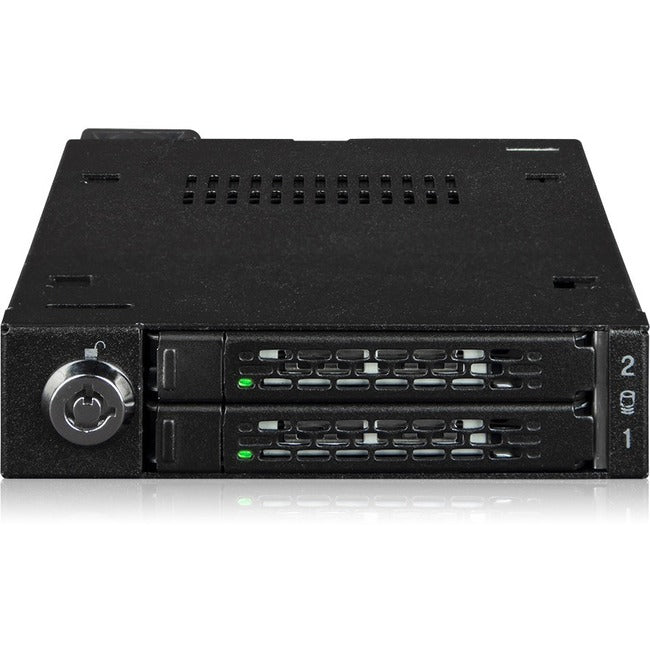

The ToughArmor MB092VK-B is a Ruggedized Removable DUAL U.2/U.3 NVMe PCIe 3.0/4.0 Mobile Rack Enclosure, supporting up to 64Gbps data transfer speeds through Slimline SAS (SFF-8654 4i) connection. This drive mobile rack fits an external 3.5" drive bay (floppy bay) space. With the advantage of removable drive trays in the frontal drive bay space, users can effortlessly access enterprise U.2 or U.3 drives without disassembling the computer case.

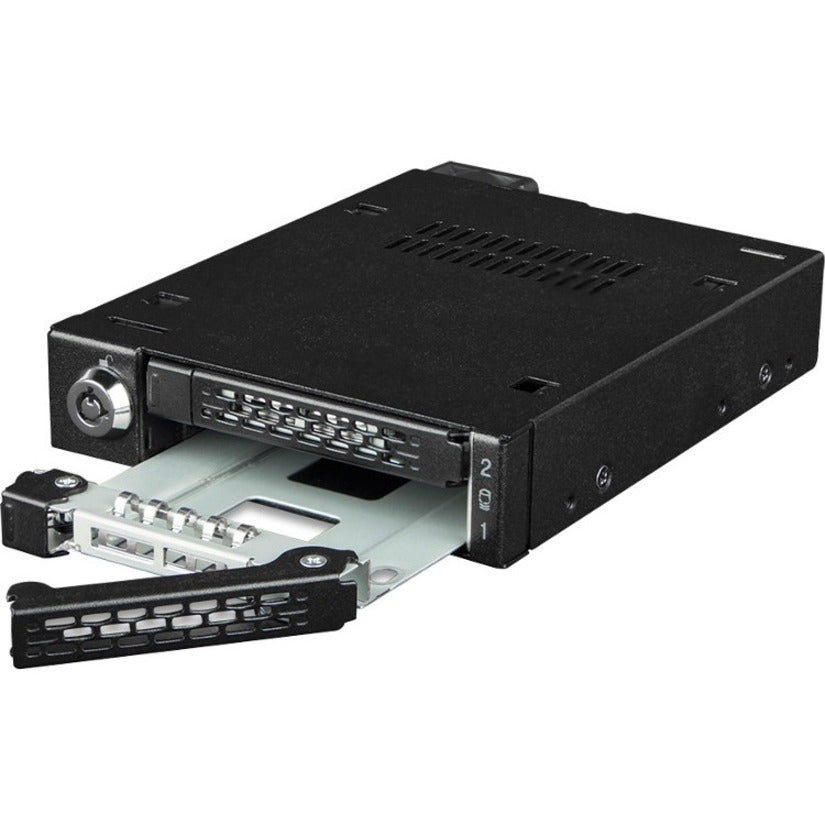

Innovative Removable Drive Design

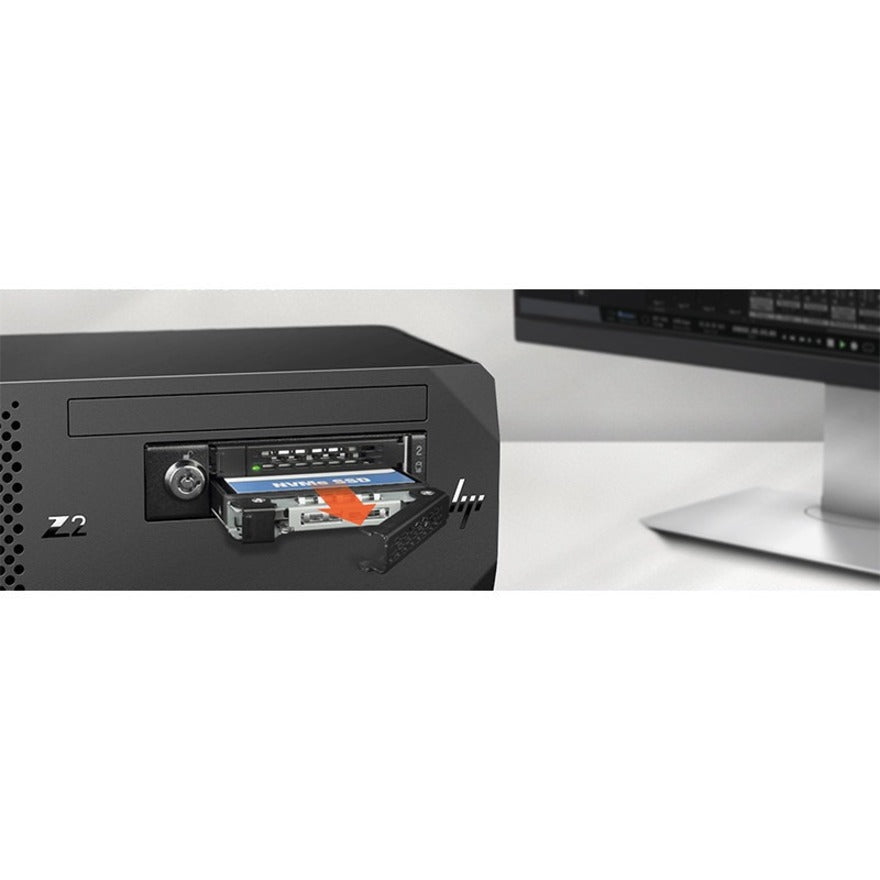

U.2 NVMe SSDs are typically designed to be installed internally, which can be tough to access when maintenance is needed. With the MB092VK-B, the U.2 drives are brought to the frontal 3.5" drive bay space where they can be easily accessed, making it a more efficient and straightforward process. In addition, each removable drive tray can support U.2 SSDs from 5mm to 9.5mm in height.-inch and M.2 installed simultaneously.

Superior Performance

To unlock the full performance of 64Gbps under PCIe 4.0 specification, the MB092VK-B uses 2x Slimline SAS (SFF-8654 4i) connectors and is also backward compatible with U.2 NVMe PCIe 3.0 x4 SSD up to 32Gbps.

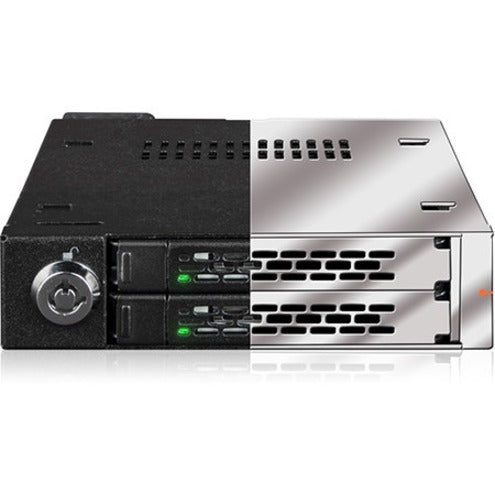

Full Metal Protection

Ensuring the drive enclosure can be relied upon for many years, the MB092VK-B is constructed out of heavy-duty metal throughout the entire device, including the drive trays, which are capable of holding up in harsh environments, such as military and medical systems that require a flammability rating.

Optimal Cooling Efficiency

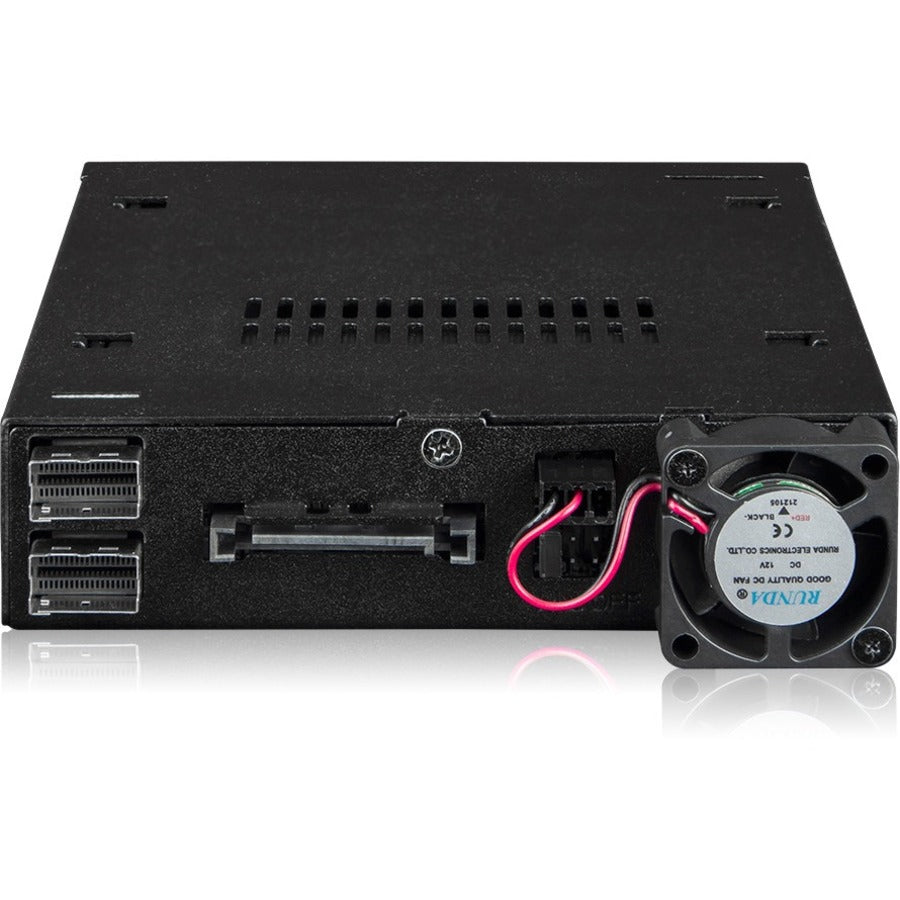

The built-in 25mm cooling fan efficiently disperses the heat generated by the U.2 NVMe SSDs through the intelligently-placed ventilation holes around the enclosure. To adjust the fan speed, simply reposition the fan speed jumper in the rear (High, Low, & Off).

Packed with Features

The Slimline-SAS and SATA power connectors are compatible with cables with a locking latch design. So once the cables are connected, they will be secure in place.

An LED status light built into the tray lets you know when your drive is powered up and in use. The LED will automatically shut off when no drive is installed to save power.

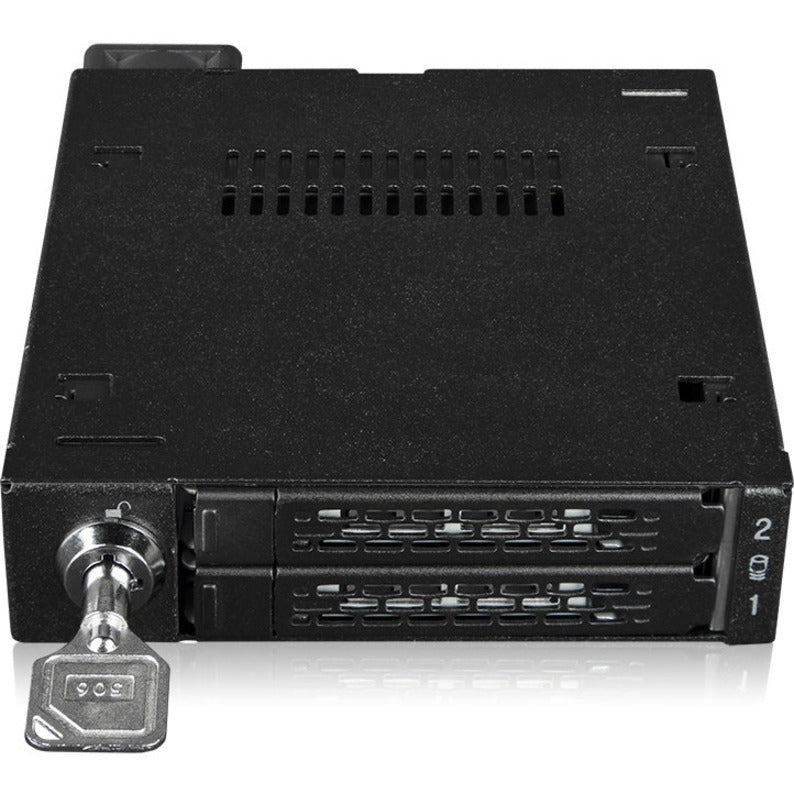

For an additional physical layer of security, the included 2-segment key-lock can be used to protect against unwanted access and secure drives in rough environments, such as military applications and in-vehicle PCs.

(Optional) M.2 NVMe SSD to U.2 NVMe SSD Adapter

Converting your M.2 NVMe SSD into U.2 NVMe SSD with EZConvert MB705M2P-B adapter offers tool-less SSD installation and comes with a large heatsink designed explicitly for high-speed M.2 NVMe SSDs.

• Fits 2x 2.5" U.2/U.3 NVMe SSDs from 5-9.5mm height


• Installs into standardized external 3.5" device bay (floppy bay)


• Uses 2x Slimline SAS (SFF-8654 4i) connector, pinout defined by SFF-9402 Rev 1.1


• Supports NVMe 4.0 64Gbps transfer rates per drive bay


• Ruggedized full-metal enclosure and drive trays


• 2-segment key lock for additional physical security

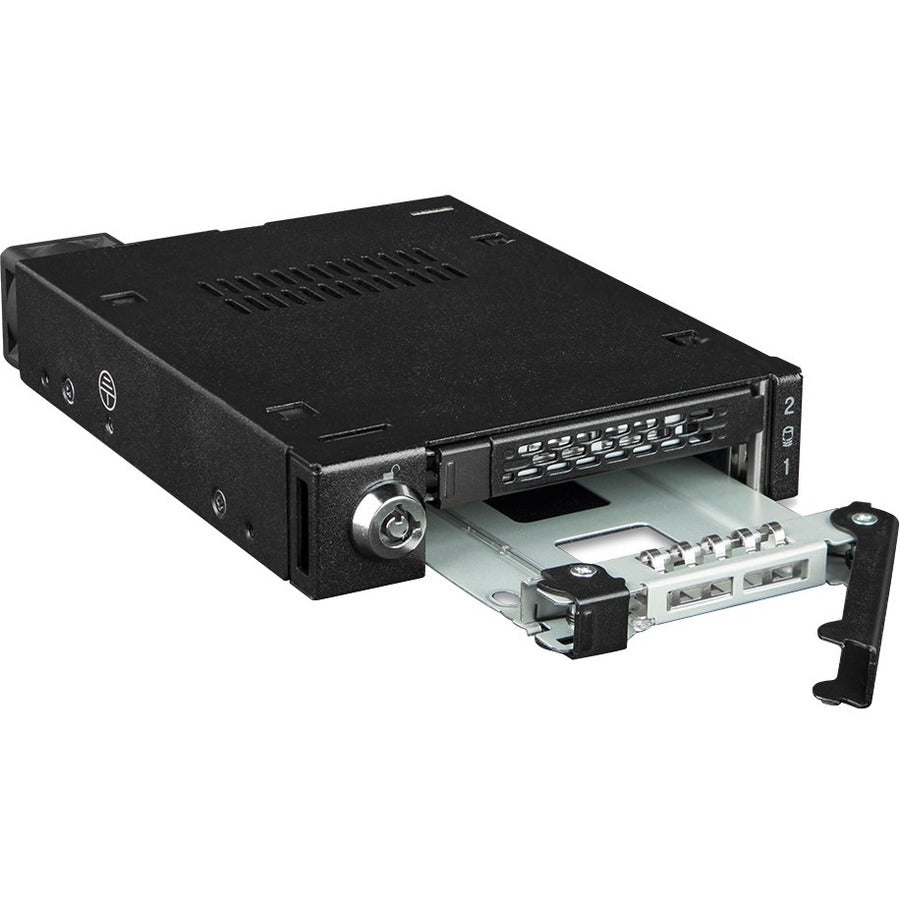

• Eagle-hook tray latch securely holds the tray inside the enclosure


• EMI Grounding - protects SSDs from electrical damage


• Active Power Technology (APT) - saves power by shutting down when no drives are installed


• Industry-leading 5 years limited warranty against all defects

Product Type: Drive Enclosure
Environmentally Friendly: Yes
Environmental Certification: REACH
Compatible Drive Bay Width: 3.5"
Cooling Fan: Yes
Product Color: Black
Product Material: Metal
Brand Name: Icy Dock
Form Factor: Internal
Manufacturer: Icy Dock
Product Model: MB092VK-B
Product Name: ToughArmor MB092VK-B
Product Line: ToughArmor
Manufacturer Part Number: MB092VK-B
Manufacturer Website Address: http://www.icydock.com
Package Contents:

• ToughArmor MB092VK-B
• User Manual
• Screws
