Omnitron Systems iConverter XG Industrial Media Converter
The iConverter XG is an industrial 10 Gigabit, protocoltransparent media converter with two pluggable transceiver ports. The XG supports the three Rs (regeneration, retimingand reshaping). By taking advantage of the wide variety of 10G pluggable transceivers, the XG can be used as a copper-to-fiber converter, fiber mode converter or WDM transponder.
The iConverter XG supports 100% traffic throughput and has no packet size restrictions. Ultra low packet latency enables high-performance connectivity for data centers and financial networks. The XG is protocol transparent within the range of 9.95Gbps to 10.71Gbps or 9.95Gbps to 11.32Gbps, providing interoperability with 10G Ethernet, 10G SONET/SDH, 10G Fibre Channel and 10G OTN (G.709).
Three interface configurations are available: XFP to XFP, XFP to SFP+, and SFP+ to SFP+. Pluggable XFP and SFP+ transceivers can be used for multimode and single-mode applications, supporting short haul distances, long haul distances and WDM fiber links.

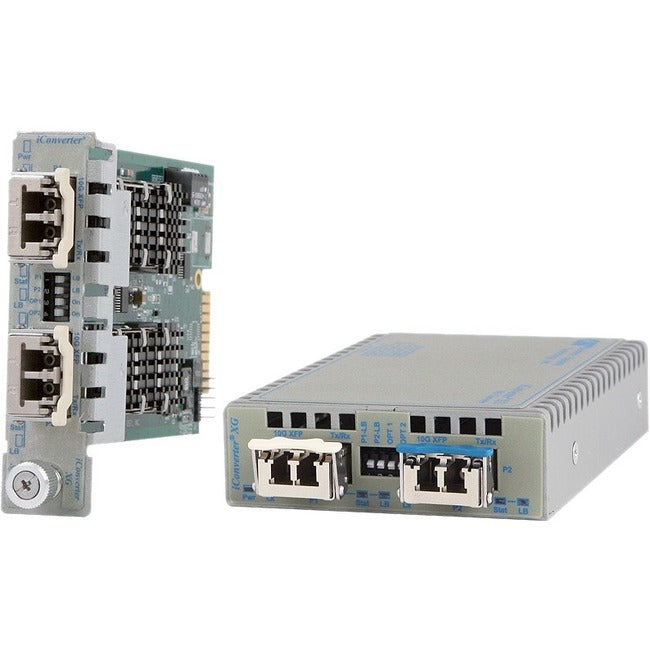

The iConverter XG is available as compact, unmanaged standalone unit, or chassis plug-in modules that can be managed with a management module installed in the chassis. The hot-swappable, plug-in modules can be mounted in a variety of chassis with DC power supplies.
Plug-in modules feature full management capabilities, including status reporting, fault detection, threshold violations, loopback functionality and SNMP trap notification. SNMP traps provide link status availability and transceiver threshold alerts.
The standalone iConverter XG is an unmanaged tabletop or wall-mount unit. The tabletop model can be DIN-rail mounted using an optional DIN-rail mounting kit. Both the tabletop and the wall-mount models are DC powered and are available with an external AC to DC power adapter, or a terminal connector for DC power.
Built-in loopback functions, on-board status LEDs and link fault propagation modes facilitate easy setup and quick troubleshooting. Pluggable transceiver alarm conditions reported through the digital diagnostic monitoring interface are displayed by the on-board status LEDs or management interface on plug-in modules.
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 10GBase-X technology get up to 10Gbps data transfer rate over supported network cable
- Can be placed on Desktop surface for standalone installation
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Country Of Origin: United States
Product Series: XG
Brand Name: Omnitron Systems
Form Factor: Desktop
Manufacturer: Omnitron Systems
Product Model: 8599-00-xx
Product Name: iConverter XG Industrial Media Converter
Product Line: iConverter
Manufacturer Part Number: 8599-00-DZ
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverter XG Industrial Media Converter
- Mounting Brackets
- External US AC/DC Power Adapter
Limited Warranty: Lifetime
Weight (Approximate): 8 oz
