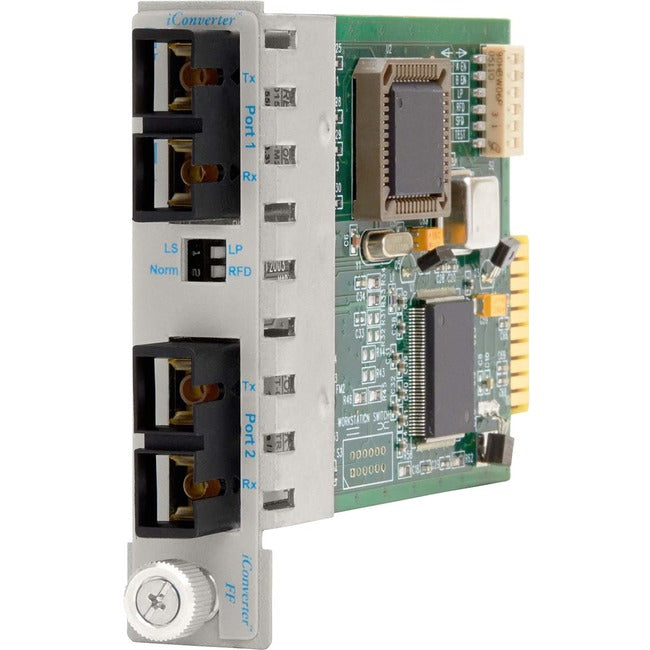

iConverter 1000Mbps Gigabit Ethernet Fiber to Single-Fiber Media Converter SC Single-Mode 12km to Single-Mode BiDi 20km Module
The iConverter 1000FF media converter provides fiber extension, as well as multimode to single-mode and dual fiber to single fiber conversion. The 1000FF is a cost-effective solution for extending fiber network distances.
iConverter 1000FF models are available with multimode, single-mode and single-fiber options. The single-mode fiber port supports ST or SC connectors and distances up to 80km. The multimode fiber port supports ST or SC connectors and distances up to 550m.
The 1000FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection, isolation and reporting.
The iConverter 1000FF is available as a compact, unmanaged standalone unit, or as a chassis plug-in module that can be managed with a management module installed in the chassis. The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.
The standalone 1000FF can be wall-mounted and is DC powered. It can be ordered with an external AC/DC power adapter, or it can be directly powered using a 2-pin terminal connector.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 1000Base-LX technology get up to 1000Mbps data transfer rate over optical fiber cable
- Rack mounting enables you to organize wires & secure cables for professional installation
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: 1000FF
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 8653-1-x
Product Name: iConverter 1000FF SC Single-Mode 12km to SC Single-Mode Single-Fiber 15/13 20km Plug-In Module
Package Type: Retail
Product Line: iConverter
Manufacturer Part Number: 8653-1
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverter 1000FF SC Single-Mode 12km to SC Single-Mode Single-Fiber 15/13 20km Plug-In Module
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 8 oz
