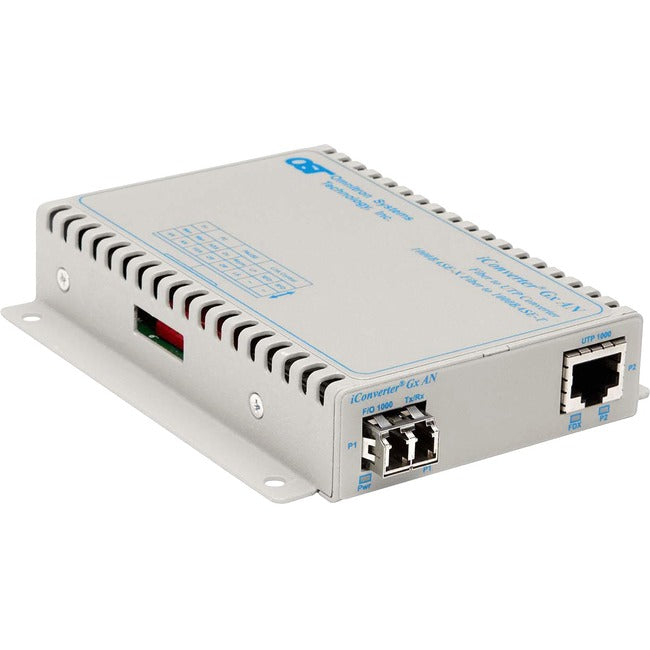

iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 LC Multimode 550m Wide Temp
The iConverter Gx AN Media Converter is a manageable media converter that provides 1000BASE-T UTP to 1000BASE-X fiber conversion between Gigabit networking devices.
The UTP port supports auto-negotiation or forced negotiation of duplex modes and pause capability while the fiber port supports both manual or auto-negotiation.
- SFP models support Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications
- Fixed-fiber connectors available for multimode and single-mode dual fiber and single-mode single-fiber
- UTP auto or forced negotitaion of duplex modes and pause capabilities
- Fiber port supports auto or manual negotiation
- User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
- Management of the plug-in module is available with the addition of a management module to the chassis
- SNMP management via NetOutlook" provides module information, remote parameter configuration and trap notification
- Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
- LED displays for immediate visual status of each port
- Lifetime Warranty and free 24/7 Technical Support
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: Gx AN
Brand Name: Omnitron Systems
Form Factor: Mountable
Manufacturer: Omnitron Systems
Product Model: 8506N-0-x
Product Name: iConverter Gx AN LC Multimode 550m Wall-Mount Standalone US AC Powered Wide Temp
Package Type: Retail
Product Line: iConverter
Manufacturer Part Number: 8506N-0-DW
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverter Gx AN LC Multimode 550m Wall-Mount Standalone US AC Powered Wide Temp
- US Power Supply - 120Volt / 60Hz
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 1 lb
