Omnitron Systems iConverter 10/100M 89xx-x-xx Transceiver/Media Converter
The iConverter 10/100M conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 10/100M provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and Bandwidth Control (rate-limiting) capabilities. The 10/100M features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.

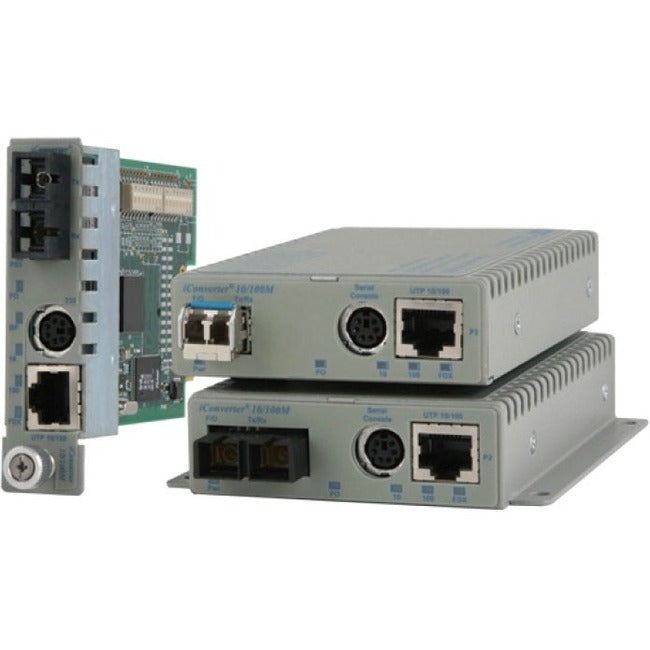

The 10/100M is available as a compact standalone unit or as a chassis plug-in module. The hot-swappable 10/100M plug-in module can be mounted in a 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.
The plug-in module can manage other modules in the same chassis and operate as a managed 10/100 media converter. It features two Ethernet backplane ports for connectivity to adjacent modules in a chassis for multi-port and multi-service configurations.
The standalone 10/100M is available as a tabletop or wall-mount unit. The tabletop model can be DIN-rail mounted using an optional DIN-rail mounting kit. Both the tabletop and the wall-mount models are DC powered and are available with an external AC/DC power adapter or a terminal connector for DC power. The 10/100M standalone unit combines management capability with a compact chassis for deployment at the demarcation point.
The iConverter 10/100M conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 10/100M provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and Bandwidth Control (rate-limiting) capabilities. The 10/100M features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.
The 10/100M is available as a compact standalone unit or as a chassis plug-in module. The hot-swappable 10/100M plug-in module can be mounted in a 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.
The plug-in module can manage other modules in the same chassis and operate as a managed 10/100 media converter. It features two Ethernet backplane ports for connectivity to adjacent modules in a chassis for multi-port and multi-service configurations.
The standalone 10/100M is available as a tabletop or wall-mount unit. The tabletop model can be DIN-rail mounted using an optional DIN-rail mounting kit. Both the tabletop and the wall-mount models are DC powered and are available with an external AC/DC power adapter or a terminal connector for DC power. The 10/100M standalone unit combines management capability with a compact chassis for deployment at the demarcation point.
Carrier-Grade Optical Ethernet
iConverter fiber access Network Interface Devices and media converters are MEF certified compliant and NEBS Level 3 compliant. iConverter NIDs enable Carrier-Grade Optical Ethernet with reliability and performance monitoring to support Service Level Agreements (SLAs).
The modular design of iConverter fiber access equipment future-proofs Metro Ethernet services with scalability of network services and lowers operating costs with comprehensive OAM management and provisioning.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 3 transceiver/media converter
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 100Base-FX technology get up to 100Mbps data transfer rate over optical fiber cable
- Tuck the device out of the way with its Wall Mounting feature
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Product Series: 10/100M
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 89xx-x-xx
Product Name: iConverter 10/100M 89xx-x-xx Transceiver/Media Converter
Product Line: iConverter
Manufacturer Part Number: 8900-0-E
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverter 10/100M 89xx-x-xx Transceiver/Media Converter
- AC Power Supply
- Mini DIN-6 Male to DB-9 Female Adapter
Limited Warranty: Lifetime
